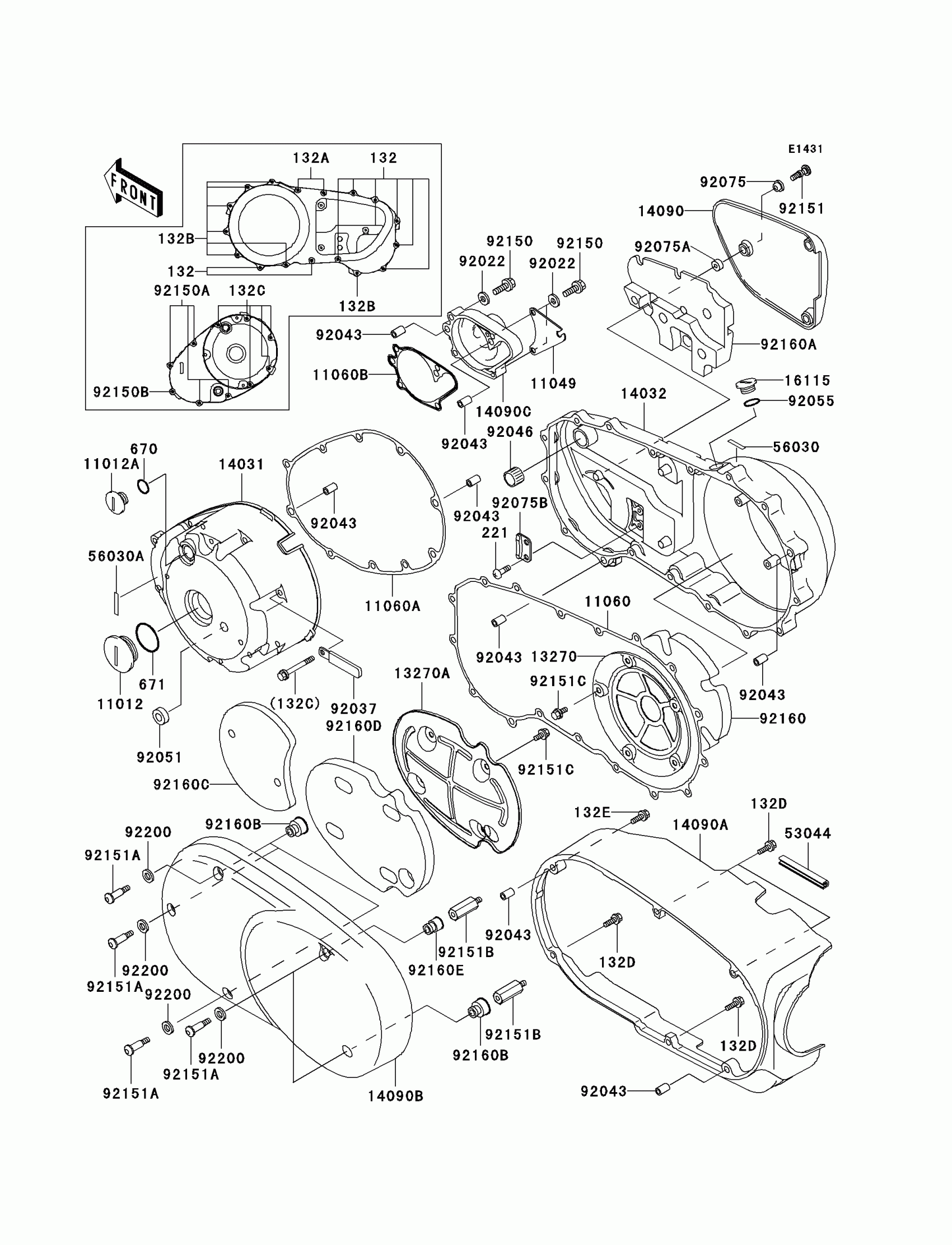

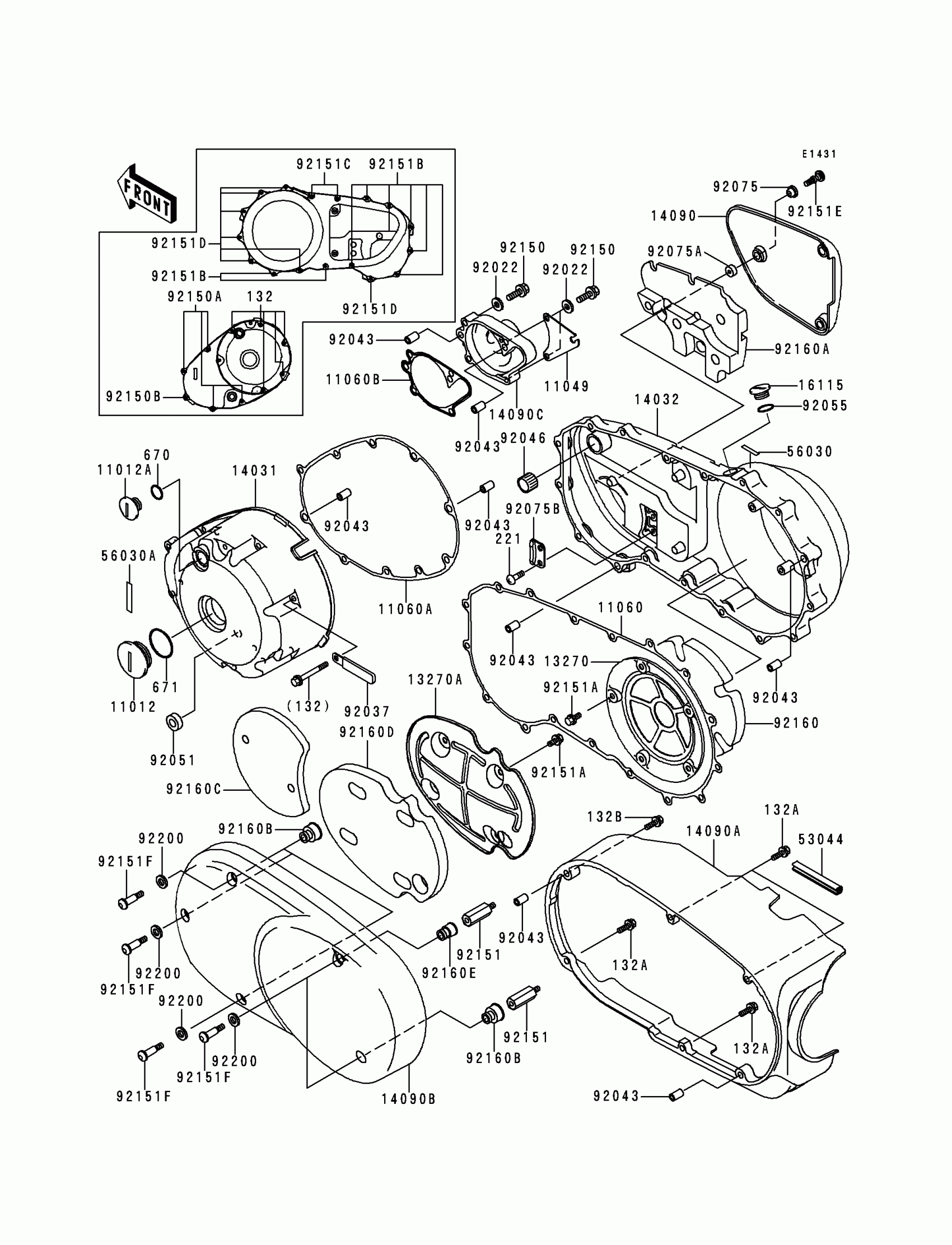

Kawasaki Vulcan 1500 Classic Engine Cover(s) Diagram

#

Description
Price

11012

CAP

11012-1362

$6.98

11012A

CAP,TOP MARK

11012-1363

$5.15

11049

BRACKET

11049-1789

$7.81

11060

GASKET,CLUTCH COVER

11060-1121

$39.46

11060A

GASKET,GENERATOR

11060-1122

$29.75

11060B

GASKET,WATER PUMP COVER

11060-1124

Unavailable

13270

PLATE

13270-1592

$21.32

13270A

PLATE

13270-1593

Unavailable

14031

COVER-GENERATOR

14031-1352

Unavailable

14032

COVER-CLUTCH

14032-1435

Unavailable

14090

COVER,CLUTCH OUTER

14090-1678

$197.56

14090A

COVER,LH,INNER

14090-1679

Unavailable

14090B

COVER,LH,OUTER

14090-1883

Unavailable

14090C

COVER,WATER PUMP

14090-1932

$75.20

16115

CAP-OIL FILLER

16115-1063

Unavailable

53044

TRIM,L=75

53044-1279

$9.22

56030

LABEL,OIL CAPACITY

56030-1184

Unavailable

56030A

LABEL,CHANGE SHIFT

56030-1193

Unavailable

92022

WASHER OIL PUMP BANJO

92022-077

$3.13

92037

CLAMP

92037-1993

$4.37

92043

PIN,6.2X8X14

92043-1263

$0.49

92046

BEARING-NEEDLE,HK1212

92046-1163

$14.37

92051

SEAL-OIL,TB13225.5

92051-005

$6.16

92055

RING-O,31.5X2.6

92055-049

$3.43

92075

DAMPER

92075-1855

$7.93

92075A

DAMPER

92075-1856

$7.60

92075B

DAMPER

92075-1905

$11.07

92150

BOLT,6X30

92150-1021

Unavailable

92150A

BOLT,FLANGED-SMALL,6X25

92150-1779

Unavailable

92150B

BOLT,6X35

92150-1967

$3.85

92151

BOLT

92151-1060

Unavailable

92151A

BOLT

92151-1061

$5.29

92151B

BOLT

92151-1062

$16.46

92151C

BOLT,6X10

92151-1064

$2.63

92160

DAMPER

92160-1716

Unavailable

92160A

DAMPER

92160-1717

Unavailable

92160B

DAMPER

92160-1718

$7.80

92160C

DAMPER

92160-1719

$29.02

92160D

DAMPER

92160-1720

Unavailable

92160E

DAMPER

92160-1730

Unavailable

132

BOLT-FLANGED-SMALL,6X25

132E0625

Unavailable

132A

BOLT-FLANGED-SMALL,6X30

132E0630

$5.42

132B

BOLT-FLANGED-SMALL,6X35

132E0635

$4.61

132C

BOLT-FLANGED-SMALL

132J0665

Unavailable

132D

BOLT-FLANGED-SMALL,6X20

132V0620

Unavailable

132E

BOLT-FLANGED-SMALL,6X30

132V0630

Unavailable

221

SCREW-CSK-CROS,6X12

221B0612

$1.73

670

O RING,18MM

670B2018

$1.25

671

O RING,40MM

671B2540

$4.93

92200

WASHER

92200-1296

Unavailable
