1995 Suzuki VS1400GLPS Starter Clutch Diagram

← All diagrams

Find the part on the Starter Clutch diagram for your 1995 Suzuki VS1400GLPS, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

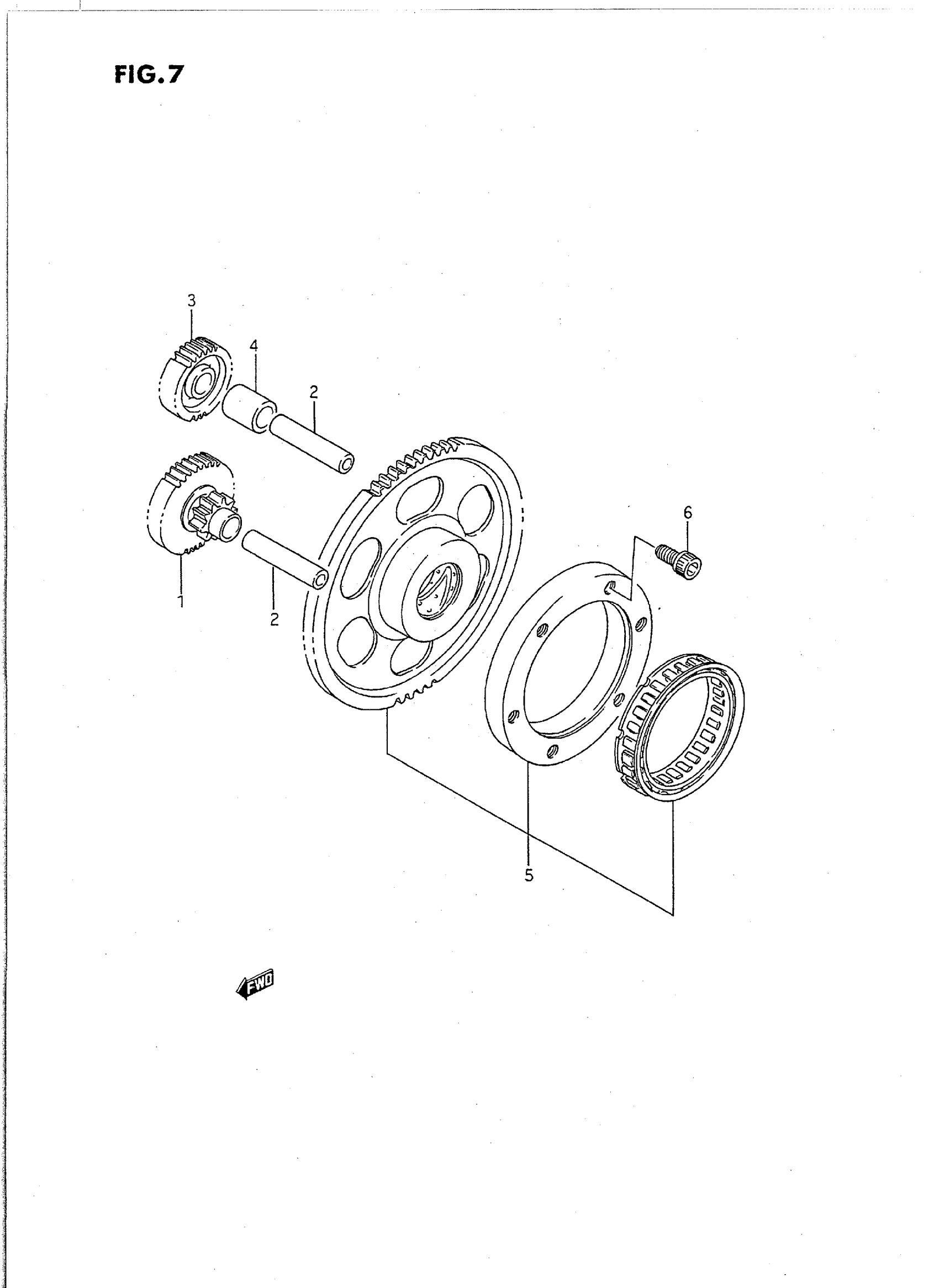

1995 Suzuki VS1400GLPS Starter Clutch Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

GEAR, STARTER IDLE NO.1

12611-38B01

1
Out of stock

2

PIN

09206-11015

2
Out of stock

3

GEAR, STARTER IDLE NO.2

12612-38B02

1
Out of stock

4

SPACER

09180-11005

1
Out of stock

5

CLUTCH SET, STARTER

12600-38840

1
Out of stock

6

6

$3.13

In stock
← Speedometer Starting Motor →
