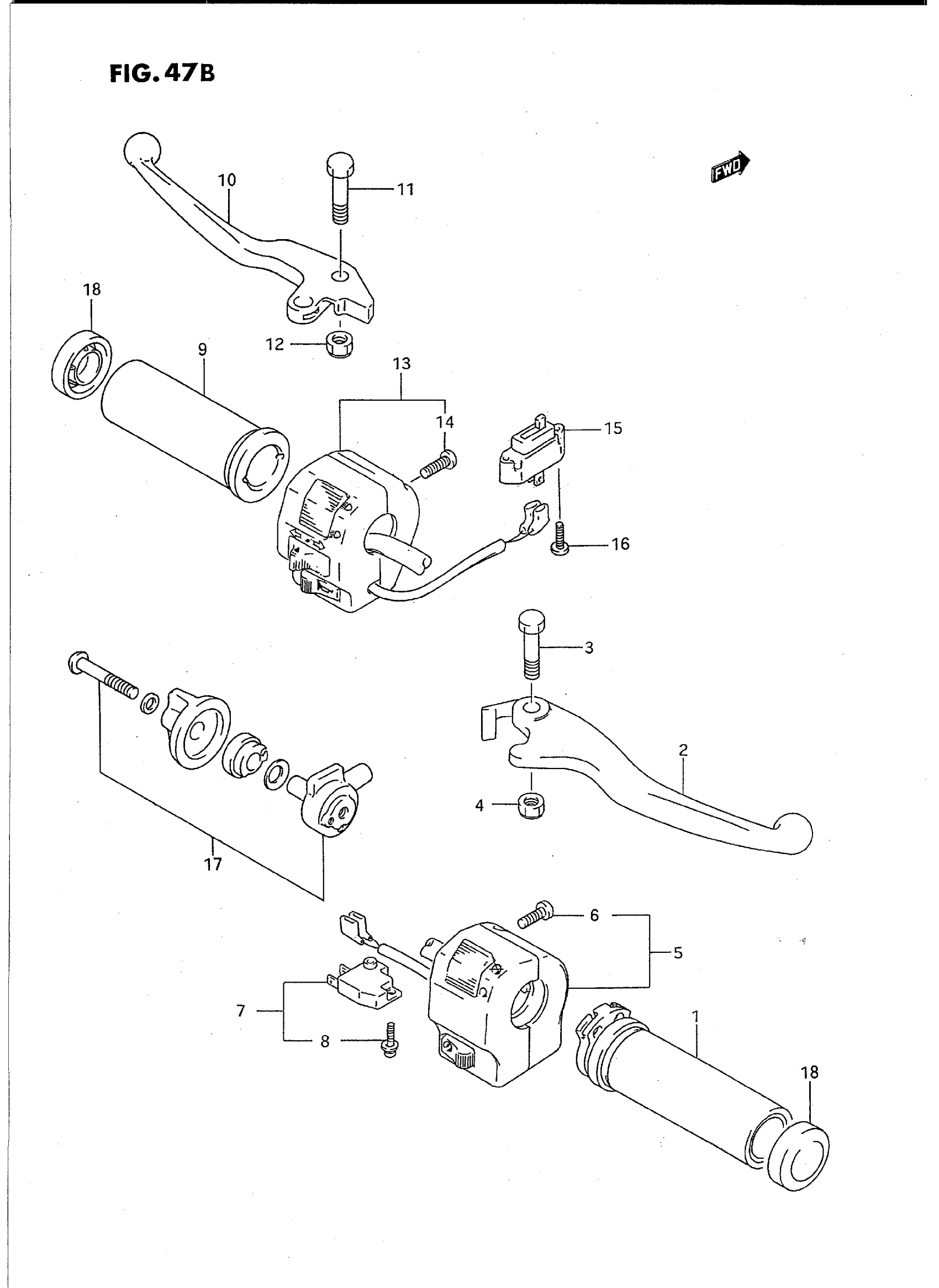

Suzuki VS1400GLPS (1995) HANDLE SWITCH (MODEL S) Diagram

#

Description
Price

1

GRIP COMP,THROT This part replaces 57110-26D00.

57110-26D01

$51.32

2

LEVER, BRAKE

57420-38B10

Unavailable

3

BOLT

57431-38A10

$10.42

4

.NUT This part replaces 08319-21068.

08319-2106A

$1.89

5

SWITCH ASSY, HANDLE RH | Includes Item(s) 6 This part replaces 37200-38BD0.

37200-38BD1

Unavailable

6

SCREW

02112-05167

$1.97

7

SWITCH ASSY,FR BRAKE | Includes Item(s) 8 This part replaces 57460-17C00.

57460-14J02

$35.21

8

SCREW

57465-17C00

$2.37

9

GRIP,L This part replaces 57210-26D00.

57210-26D01

$27.67

10

LEVER, CLUTCH

57621-38B01

Unavailable

11

BOLT

57431-38A10

$10.42

12

.NUT This part replaces 08319-21068.

08319-2106A

$1.89

13

SWITCH ASSY, HANDLE LH | Includes Item(s) 14 This part replaces 37400-38BD0.

37400-38BD1

Unavailable

14

SCREW

02112-05167

$1.97

15

SWITCH ASSY, CLUTCH

37560-38A00

$16.94

16

SCREW

02142-03127

$1.95

17

LEVER ASSY, STARTER This part replaces 58700-38B00.

58700-38B02

$80.60

18

CAP, GRIP END

57216-38A00

$6.61
