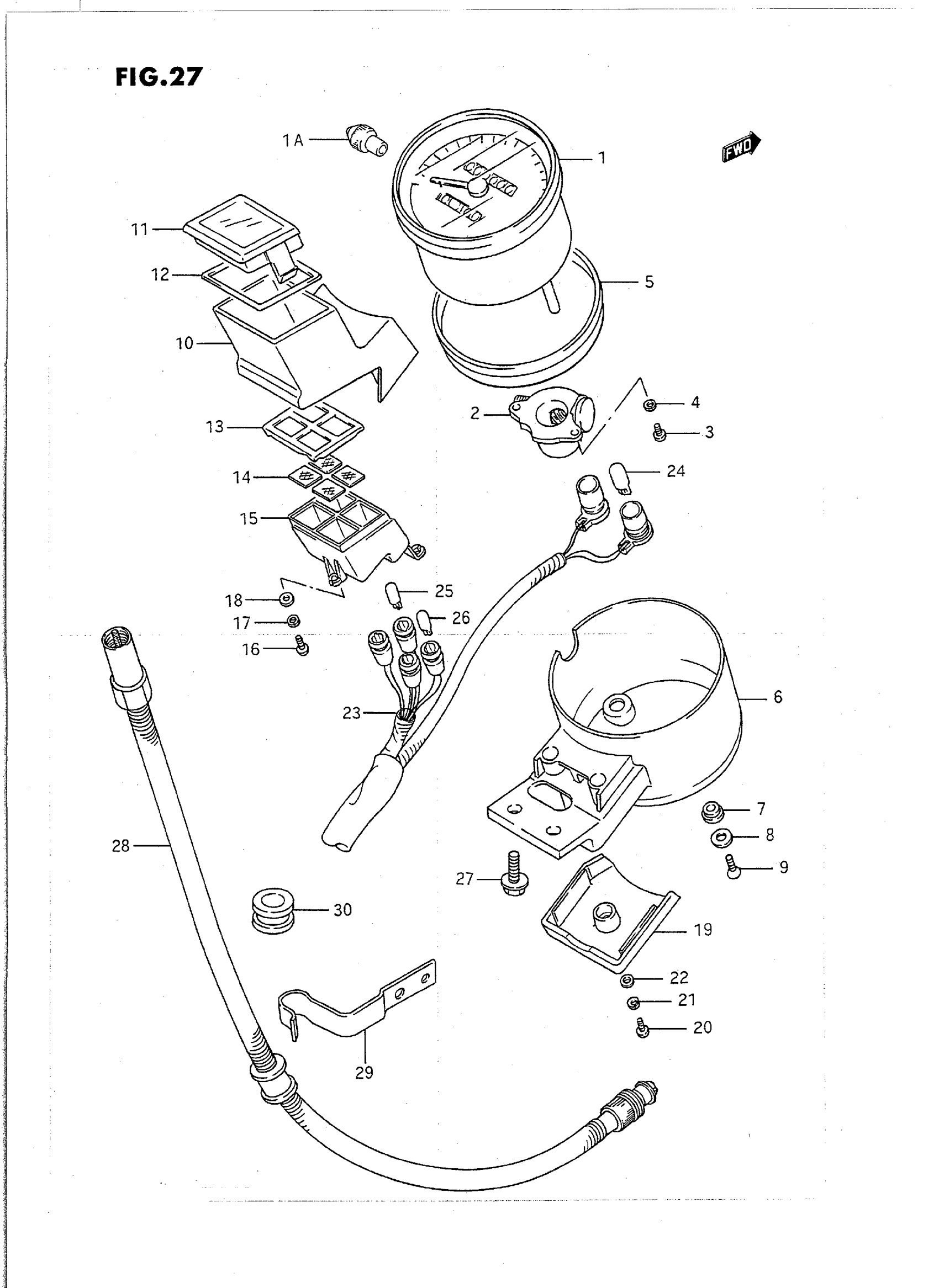

Suzuki VS1400GLPS (1995) SPEEDOMETER Diagram

#

Description
Price

1

SPEEDOMETER (MILE/KILO) | MODEL H This part replaces 34110-38B30.

34110-38B40

Unavailable

1

SPEEDOMETER (MILE/KILO) | MODEL J/L/M/N/P/R/S

34110-38B40

Unavailable

1A

KNOB, TRIP

34124-39A10

$17.96

2

BOX, METER GEAR

34131-38A00

Unavailable

3

SCREW

02112-04107

$1.55

4

LOCK WASHER This part replaces 08321-21047.

08321-0104A

$1.86

5

CUSHION, METER

34288-39A00

$11.50

6

COVER, METER

34193-38B00

$193.15

7

CUSHION This part replaces 34189-05A30.

34189-05A31

$6.00

8

WASHER

34181-38A00

$3.72

9

SCREW This part replaces 34164-38A00.

02112-04087

$1.10

10

BOX, PILOT LAMP | MODEL H/J/L/M This part replaces 36381-38B30.

36381-39A20

$120.47

10

BOX, PILOT LAMP | MODEL N/P/R/S

36381-39A20

$120.47

11

LENS, PILOT BOX

36393-38A00

Unavailable

12

CUSHION

36395-38A00

$8.32

13

PLATE, PILOT LENS

36386-38A00

Unavailable

14

LENS SET, PILOT LAMP This part replaces 36300-38820.

36300-38830

Unavailable

15

CASE, PILOT LAMP

36382-38B30

$24.57

16

SCREW This part replaces 02112-03083.

02112-0308A

$1.81

17

LOCK WASHER This part replaces 08321-21033.

08321-2103B

$1.78

18

WASHER This part replaces 08322-01033.

08322-0103B

$1.70

19

COVER, PILOT BOX

34152-38B30

Unavailable

20

SCREW

02112-04087

$1.10

21

LOCK WASHER This part replaces 08321-21047.

08321-0104A

$1.86

22

WASHER

08322-01047

$1.88

23

SOCKET, METER

34173-38B30

Unavailable

24

BULB (12V,3.4W)

09471-12028

$1.98

25

BULB (12V,3W)

09471-12103

$3.46

26

.BULB (12V1.7W)

09471-12108

$3.08

27

BOLT | MODEL H/J/L/M/N/P/R

01550-06167

$2.22

27

BOLT | MODEL S This part replaces 01550-06163.

01550-0616A

$1.97

28

CABLE ASSY,SPEE This part replaces 34910-38B00.

34910-38B01

$290.88

29

GUIDE, METER CABLE | MODEL H/J/L/M/N/P/R This part replaces 34938-38A20.

34938-38A02

$12.02

29

GUIDE, METER CABLE | MODEL S

34938-38A02

$12.02

30

GROMMET This part replaces 09308-13005.

09308-13006

$4.15
