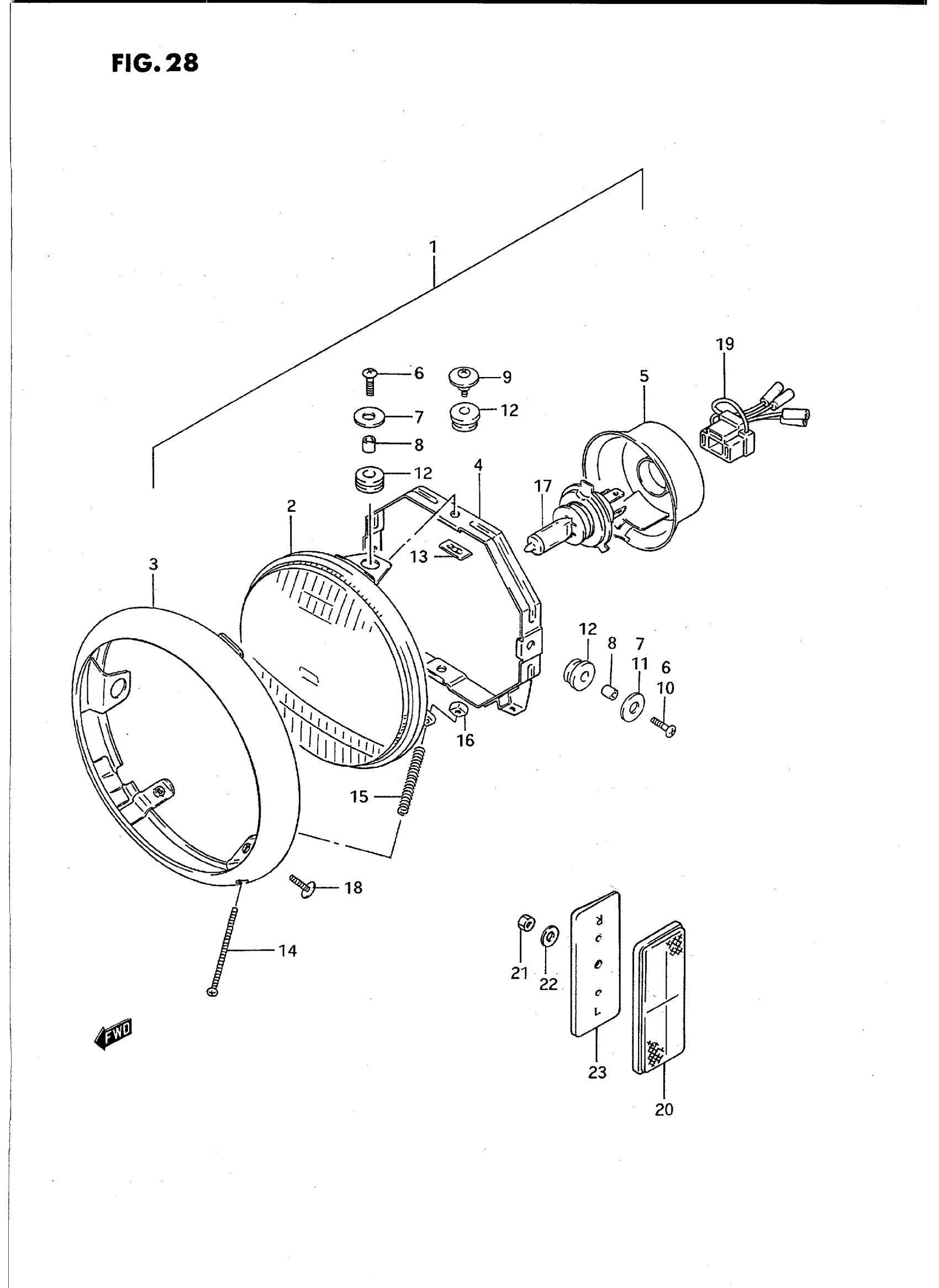

Suzuki VS1400GLPS (1995) HEADLAMP Diagram

#

Description
Price

1

HEADLAMP ASSY | MODEL H/J/L/M/N/P/R This part replaces 35100-38B30.

35100-38A62-999

$308.58

1

HEADLAMP ASSY | MODEL S; Includes Item(s) 2 - 17 This part replaces 35100-38A30-999.

35100-38A62-999

$308.58

2

UNIT, LAMP

35121-38A30

Unavailable

3

RIM

35111-38A00

$52.15

4

RING, MOUNTING

35130-38A00

$19.68

5

COVER, SOCKET

35173-38A00

$19.03

6

SCREW | MODEL H/J/K/L/M/N/P/R

02112-05167

$1.97

7

WASHER (5.5X18X1) | MODEL H/J/K/L/M/N/P/R This part replaces 35138-45230.

09160-05045

$1.95

8

SPACER | MODEL H/J/K/L/M/N/P/R

35133-45230

$3.72

9

.SCREW MOUNTING | MODEL S

35136-38A00

$4.53

10

SCREW, SIDE | MODEL S

02112-05167

$1.97

11

WASHER (5.5X18X1) | MODEL S This part replaces 09160-05003.

09160-05045

$1.95

12

CUSHION

35139-45230

$2.25

13

NUT

35155-48510

$2.58

14

SCREW | MODEL H/J/L/M/N/P/R This part replaces 35151-49430.

09125-04020

$2.72

14

SCREW, ADJUST | MODEL S

35151-38A00

$4.10

15

SPRING, HEADLAMP ADJUST | MODEL H/J/L/M/N/P/R This part replaces 35154-49430.

35154-31300

$3.49

15

SPRING | MODEL S

35154-31300

$3.49

16

NUT

35135-45600

$4.12

17

BULB (12V,60/55W)

09471-12060

$22.69

18

SCREW | MODEL H This part replaces 02132-05127.

02122-05127

$1.68

18

SCREW | MODEL J/L/M/N/P/R

09127-05013

$1.38

18

SCREW | MODEL S

02122-05127

$1.68

19

WIRE, HEADLAMP LEAD | MODEL H/J/L/M This part replaces 36853-38B00.

36853-38B10

Unavailable

19

WIRE, HEADLAMP LEAD | MODEL N/P/R/S

36853-38B10

Unavailable

20

REFLEX REFLECTOR, FRONT SIDE

35950-38B00

Unavailable

21

NUT | MODEL H/J/L/M/N/P/R This part replaces 08310-00053.

08310-0005A

$1.83

21

NUT | MODEL S This part replaces 08316-10053.

08316-1005A

$2.19

22

WASHER, FRONT This part replaces 08322-01053.

08322-0105A

$1.83

23

SPACER

35954-38B00

Unavailable
