1995 Suzuki VS1400GLPS Handle Switch Diagram

← All diagrams

Find the part on the Handle Switch diagram for your 1995 Suzuki VS1400GLPS, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

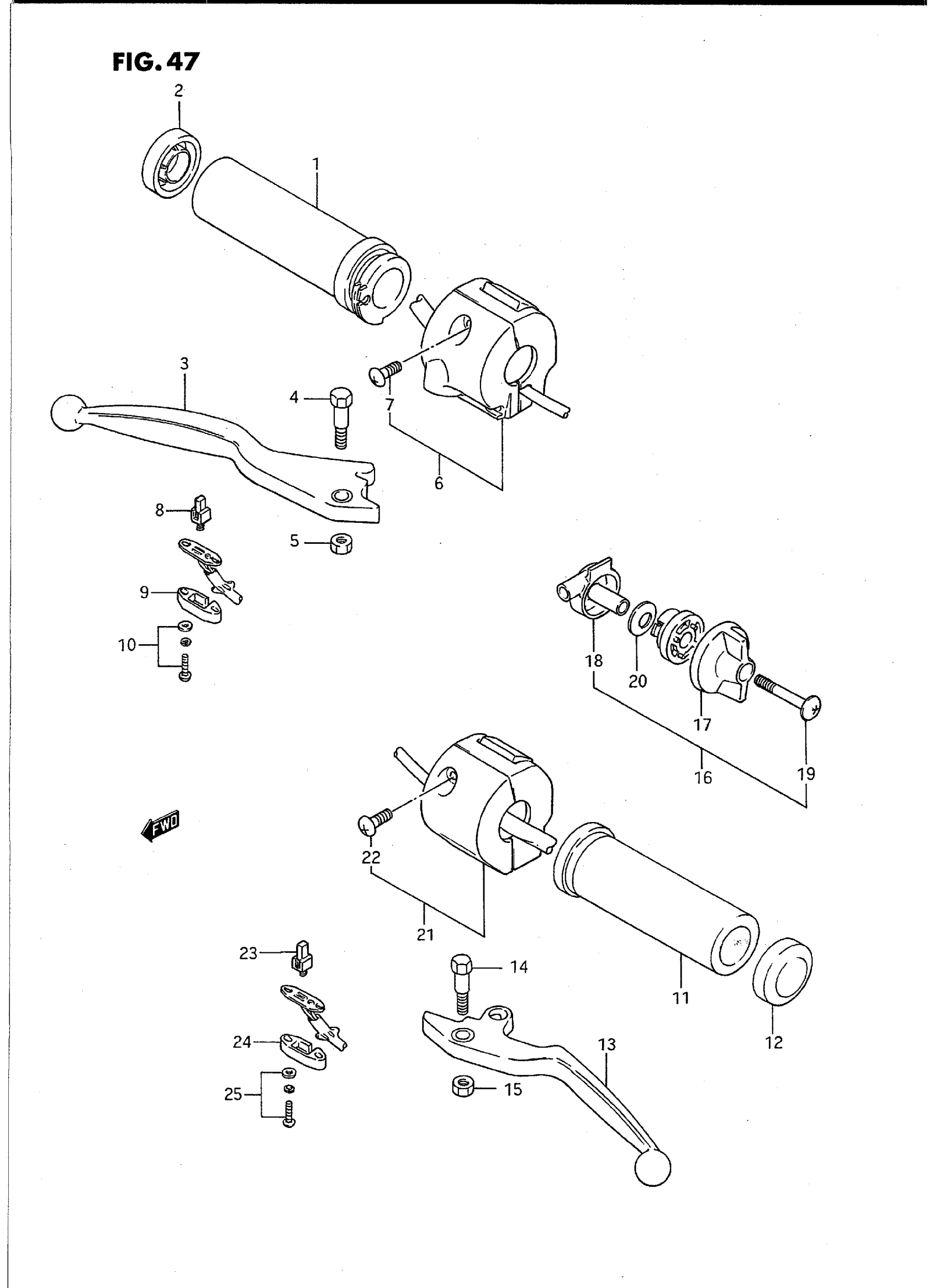

1995 Suzuki VS1400GLPS Handle Switch Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

GRIP, THROTTLE

57110-38A02

1
Out of stock

2

CAP

57216-38A00

1

$7.20

In stock

3

LEVER, BRAKE

57420-38B00

1
Out of stock

4

BOLT This part replaces 57431-38A00.

57431-38A10

1
Out of stock

5

.NUT This part replaces 08319-21068.

08319-2106A

1
Out of stock

6

SWITCH ASSY, HANDLE RH | VS1400GLFH This part replaces 37200-38B30.

37200-38B40

1
Out of stock

6

SWITCH ASSY, HANDLE RH | VS1400GLPH,MODEL J; Includes Item(s) 7 - 10

37200-38B40

1
Out of stock

7

SCREW This part replaces 37391-38A00.

02112-05167

2
Out of stock

8

HOLDER

57465-18601

1
Out of stock

9

COVER

57481-38A00

1
Out of stock

10

SCREW

57484-38A00

2
Out of stock

11

GRIP, LH

57210-38A02

1
Out of stock

12

CAP

57216-38A00

1

$7.20

In stock

13

LEVER, CLUTCH This part replaces 57620-38B00.

57621-38B01

1
Out of stock

14

BOLT This part replaces 57431-38A00.

57431-38A10

1
Out of stock

15

.NUT This part replaces 08319-21068.

08319-2106A

1
Out of stock

16

LEVER ASSY, STARTER | Includes Item(s) 17 - 20 This part replaces 58700-38B00.

58700-38B02

1
Out of stock

17

LEVER ASSY, STARTER | ->58700-38B00 This part replaces 58721-38B00.

58700-38B02

1
Out of stock

18

BODY

58723-38B00

1
Out of stock

19

SCREW (6X40) This part replaces 09125-06012.

02112-06407

1
Out of stock

20

WASHER

58722-03010

1
Out of stock

21

SWITCH ASSY, HANDLE LH | VS1400GLFH->37400-38B70 This part replaces 37400-38B30.

37400-38B80

1
Out of stock

21

SWITCH ASSY, HANDLE LH | VS1400GLPH->37400-38B80 This part replaces 37400-38B40.

37400-38B80

1
Out of stock

21

SWITCH ASSY, HANDLE LH | MODEL J; Includes Item(s) 22 - 25

37400-38B80

1
Out of stock

22

SCREW This part replaces 37391-38A00.

02112-05167

2
Out of stock

23

HOLDER

57465-18601

1
Out of stock

24

COVER

57481-38A10

1
Out of stock

25

SCREW

57484-38A00

2
Out of stock

26

REFER TO FIG.47A(G-13) FOR

SPECIAL NOTE

—
Out of stock
