1995 Kawasaki Voyager Xii Valve Diagram

← All diagrams

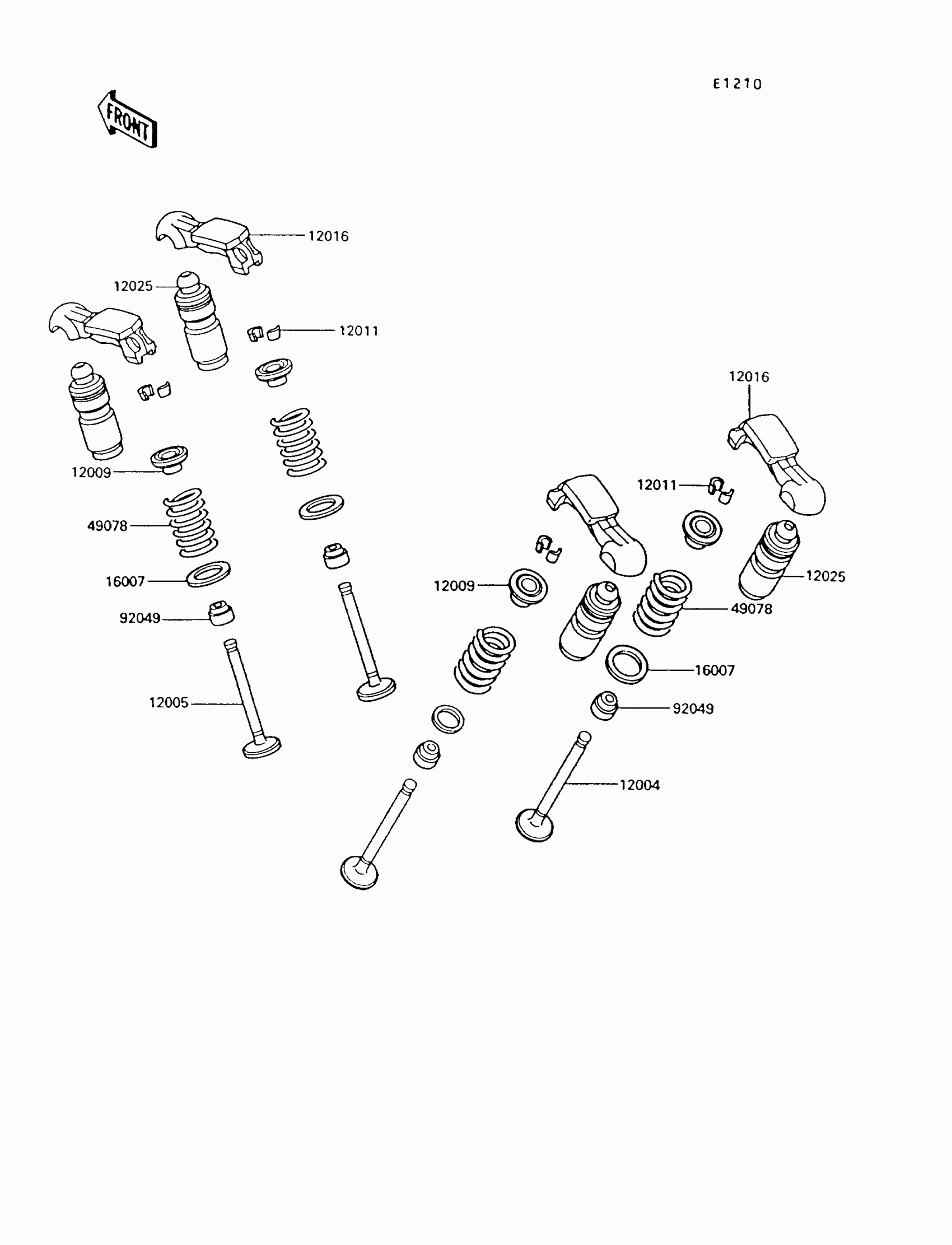

Find the part on the Valve diagram for your 1995 Kawasaki Voyager Xii, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1995 Kawasaki Voyager Xii Valve Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

12004

VALVE-INTAKE

12004-1065

1
Out of stock

12005

VALVE-EXHAUST

12005-1074

1
Out of stock

12009

RETAINER-VALVE SPRING

12009-1054

1
Out of stock

12011

COLLET

12011-1003

1
Out of stock

12016

ARM-ROCKER

12016-1066

1
Out of stock

12025

ADJUSTER-LASH

12025-1052

1
Out of stock

16007

SEAT-SPRING,17.5X23.8X0.5

16007-1178

1
Out of stock

49078

SPRING-ENGINE VALVE

49078-1073

1
Out of stock

92049

SEAL-OIL,RVC2-5.5X8.5X8.3

92049-1062

1
Out of stock
