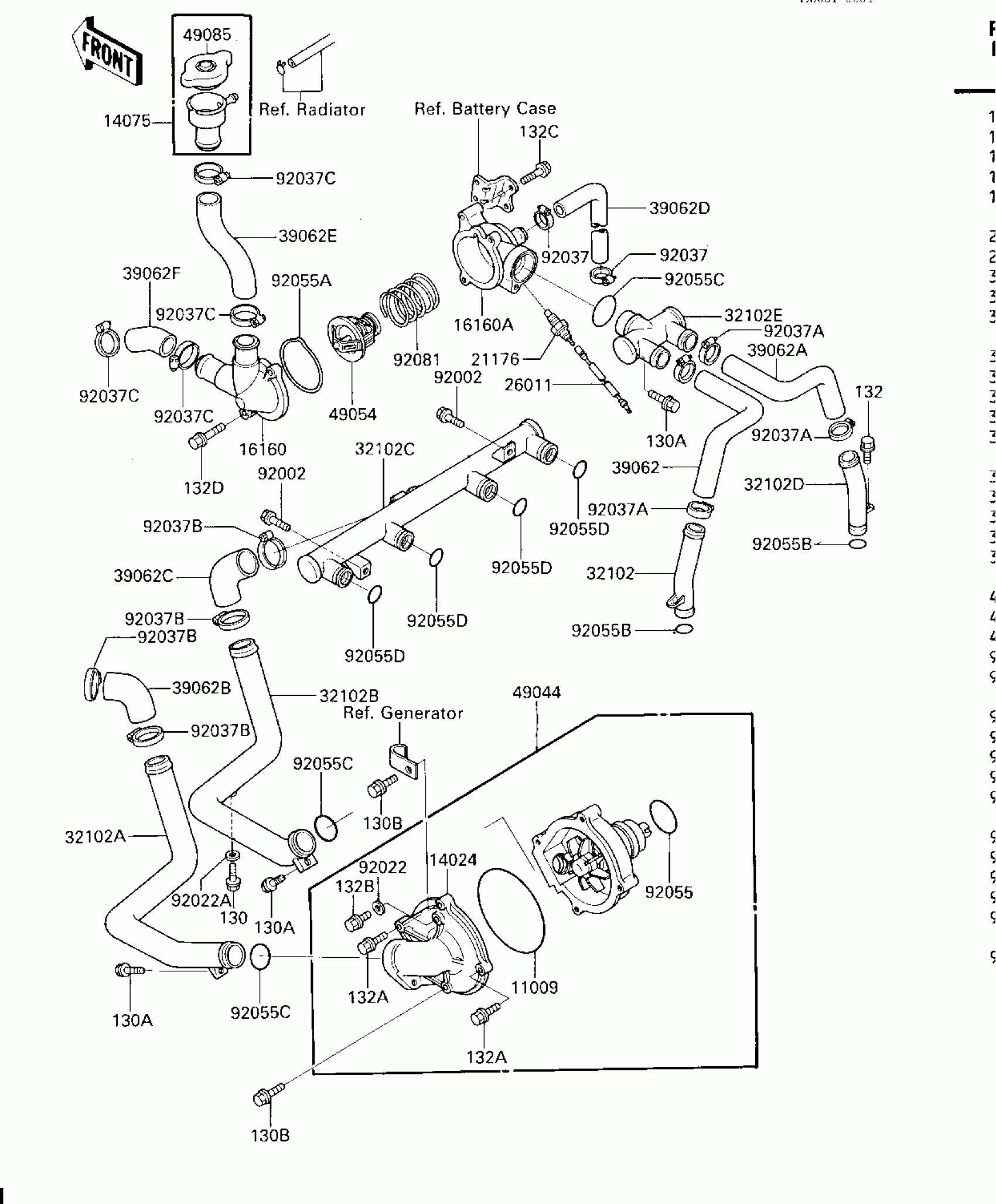

Find the part on the Water Pump diagram for your 1986 Kawasaki Voyager Xii, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

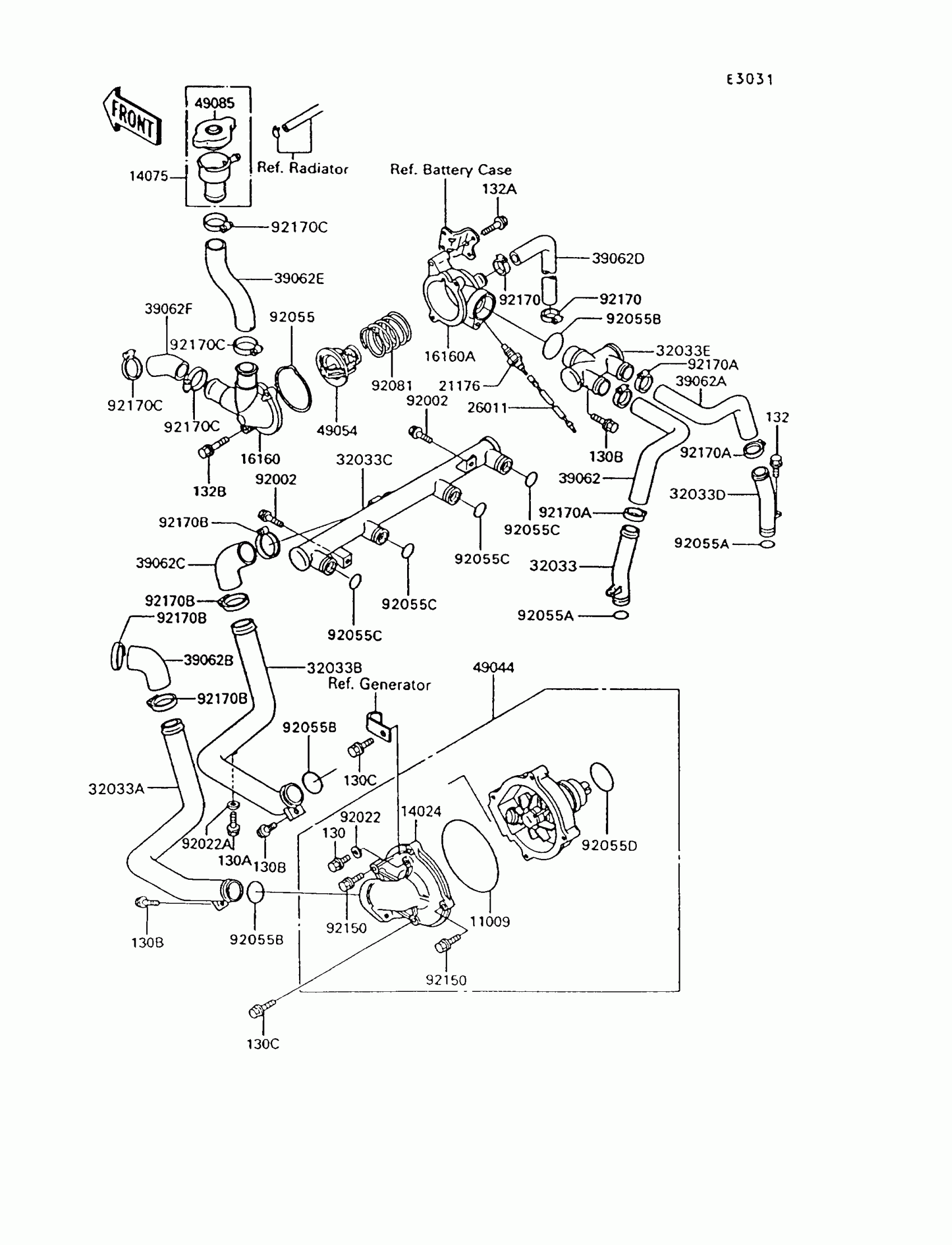

1986 Kawasaki Voyager Xii Water Pump Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11009

GASKET,WATER PUMP

11009-1621

1
Out of stock

14024

COVER,WATER PUMP

14024-1348

1
Out of stock

14075

CAP-ASSY

14075-1063

1
Out of stock

16160

BODY,THERMOSTAT,UPP

16160-1103

1
Out of stock

16160A

BODY,THERMOSTAT,LWR

16160-1104

1
Out of stock

21176

SENSOR,WATER

21176-1054

1
Out of stock

26011

WIRE-LEAD,SENSOR

26011-1364

1
Out of stock

32102

PIPE,HEAD,RH

32033-1933

1
Out of stock

32102A

PIPE,HOSE-PUMP

32033-1934

1
Out of stock

32102B

PIPE,PUMP-HOSE

32033-1935

1
Out of stock

32102C

PIPE,CYLINDER

32033-1936

1
Out of stock

32102D

PIPE,HEAD,LH

32033-1968

1
Out of stock

32102E

PIPE,THERMOSTAT

32033-1990

1
Out of stock

39062

HOSE-COOLING,LH

39062-1149

1
Out of stock

39062A

HOSE-COOLING,RH

39062-1150

1
Out of stock

39062B

HOSE-COOLING,RADIATOR-PIPE

39062-1151

1
Out of stock

39062C

HOSE-COOLING,PIPE-PIPE

39062-1152

1
Out of stock

39062D

HOSE-COOLING,BY-PASS

39062-1153

1
Out of stock

39062E

HOSE-COOLING,THERMO-CAP

39062-1154

1
Out of stock

39062F

HOSE-COOLING,THERMO-RADIATOR

39062-1174

1
Out of stock

49044

PUMP-WATER

49044-1056

1
Out of stock

49054

THERMOSTAT

49054-1001

1
Out of stock

49085

CAP-ASSY-PRESSURE

49085-1053

1
Out of stock

92002

BOLT,FLANGED,6X12

92002-1350

1
Out of stock

92022

WASHER,6MM

92022-1627

1
Out of stock

92022A

WASHER,6.2X11X1

92022-304

1
Out of stock

92037

CLAMP,COOLING HOSE

92170-1032

1
Out of stock

92037A

CLAMP,COOLING HOSE

92170-1034

1
Out of stock

92037B

CLAMP

92170-1036

1
Out of stock

92037C

CLAMP,COOLING HOSE

92037-1985

1
Out of stock

92055

RING-O,33.8MM

92055-1266

1
Out of stock

92055A

RING-O,THERMOSTAT

92055-1324

1
Out of stock

92055B

RING-O,18.8X2.4

92055-1325

1
Out of stock

92055C

RING-O,27.6X3.2

92055-1328

1
Out of stock

92055D

RING-O,18.54X2.6

92055-1350

1
Out of stock

92081

SPRING,THERMOSTAT

92081-1104

1
Out of stock

130

BOLT-FLANGED,6X10

130N0610

1
Out of stock

130A

BOLT-FLANGED,6X12

130N0612

1
Out of stock

130B

BOLT-FLANGED

130N0645

1
Out of stock

132

BOLT-FLANGED-SMALL,6X12

132E0612

1
Out of stock

132A

BOLT-FLANGED-SMALL

132E0622

1
Out of stock

132B

BOLT-FLANGED-SMALL,6X12

132J0612

1
Out of stock

132C

BOLT-FLANGED-SMALL

132J0614

1
Out of stock

132D

BOLT-FLANGED-SMALL,6X20

132J0620

1
Out of stock
