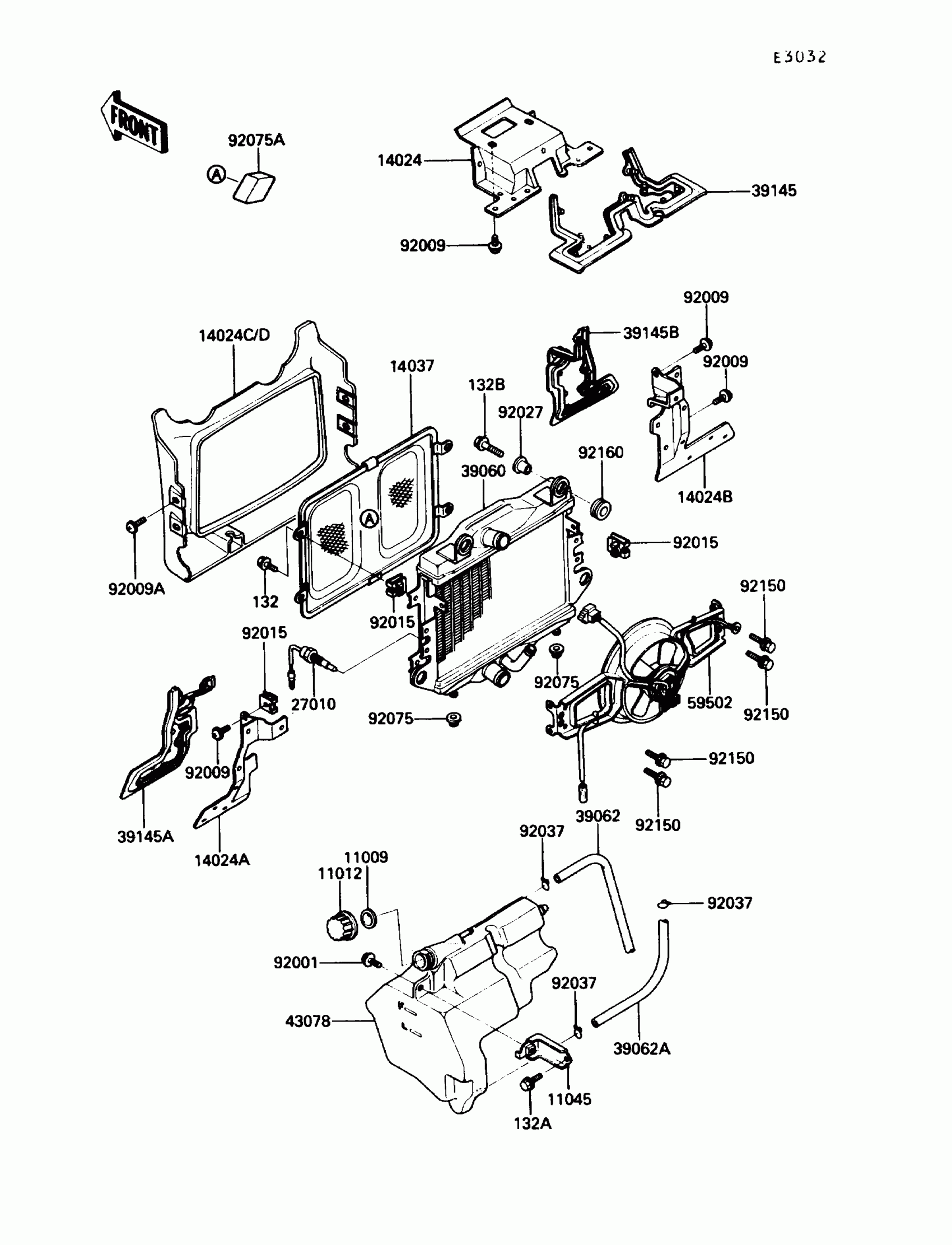

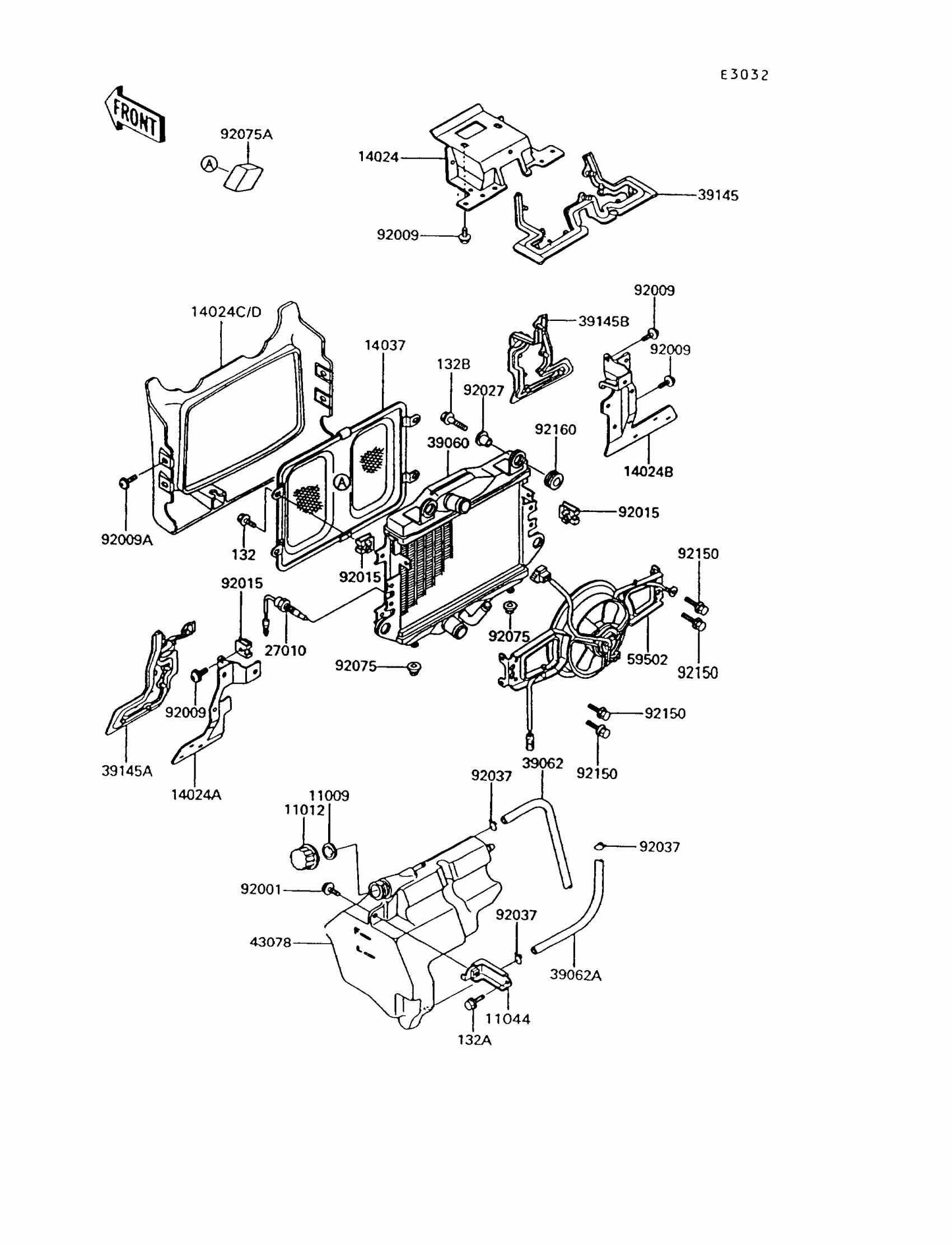

Find the part on the Radiator diagram for your 1991 Kawasaki Voyager Xii, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1991 Kawasaki Voyager Xii Radiator Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

132

BOLT-FLANGED-SMALL,6X10

132J0610

1
Out of stock

132A

BOLT-FLANGED-SMALL,6X12

132J0612

1
Out of stock

132B

BOLT-FLANGED-SMALL,8X25

132J0825

1
Out of stock

11009

1

$1.25

In stock

11012

CAP

11012-1084

1

$1.31

In stock

11045

BRACKET,RESERVOIR

11044-1744

1

$8.59

In stock

14024

COVER,RADIATOR UPP

14024-1158

1
Out of stock

14024A

COVER,RADIATOR,LH

14024-1159

1
Out of stock

14024B

COVER,RADIATOR,RH

14024-1160

1
Out of stock

14024C

COVER,RADIATOR,M.C.SILVER

14024-1293-GA

1
Out of stock

14037

SCREEN

14037-1076

1

$142.87

In stock

27010

SWITCH,FAN

27010-1180

1

$136.95

In stock

39060

RADIATOR

39060-1066

1

$781.80

In stock

39062

HOSE-COOLING

39062-1075

1

$23.82

In stock

39062A

1

$38.54

In stock

39145

TRIM-SEAL

39145-1061

1

$54.68

In stock

39145A

TRIM-SEAL,COVER,LH

39145-1063

1

$55.20

In stock

39145B

TRIM-SEAL,COVER,RH

39145-1065

1

$45.88

In stock

43078

RESERVOIR

43078-1067

1
Out of stock

59502

FAN-ASSY

59502-1060

1

$864.12

In stock

92001

BOLT,W/WASHER,6X12

92001-1516

1

$4.42

In stock

92009

SCREW,6X18,BLACK

92009-1181

1
Out of stock

92009A

SCREW,6X14,BLACK

92009-1308

1
Out of stock

92015

NUT

92015-1487

1

$3.80

In stock

92027

1

$8.16

In stock

92037

CLAMP,TUBE

92037-147

1

$5.84

In stock

92075

1

$5.42

In stock

92075A

DAMPER,SCREEN

92075-1981

1

$3.64

In stock

92150

BOLT,6X12

92150-1186

1

$2.92

In stock

92160

DAMPER

92160-1007

1

$4.37

In stock
