1986 Kawasaki Voyager Xii Crankcase Bolt Pattern Diagram

← All diagrams

Find the part on the Crankcase Bolt Pattern diagram for your 1986 Kawasaki Voyager Xii, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

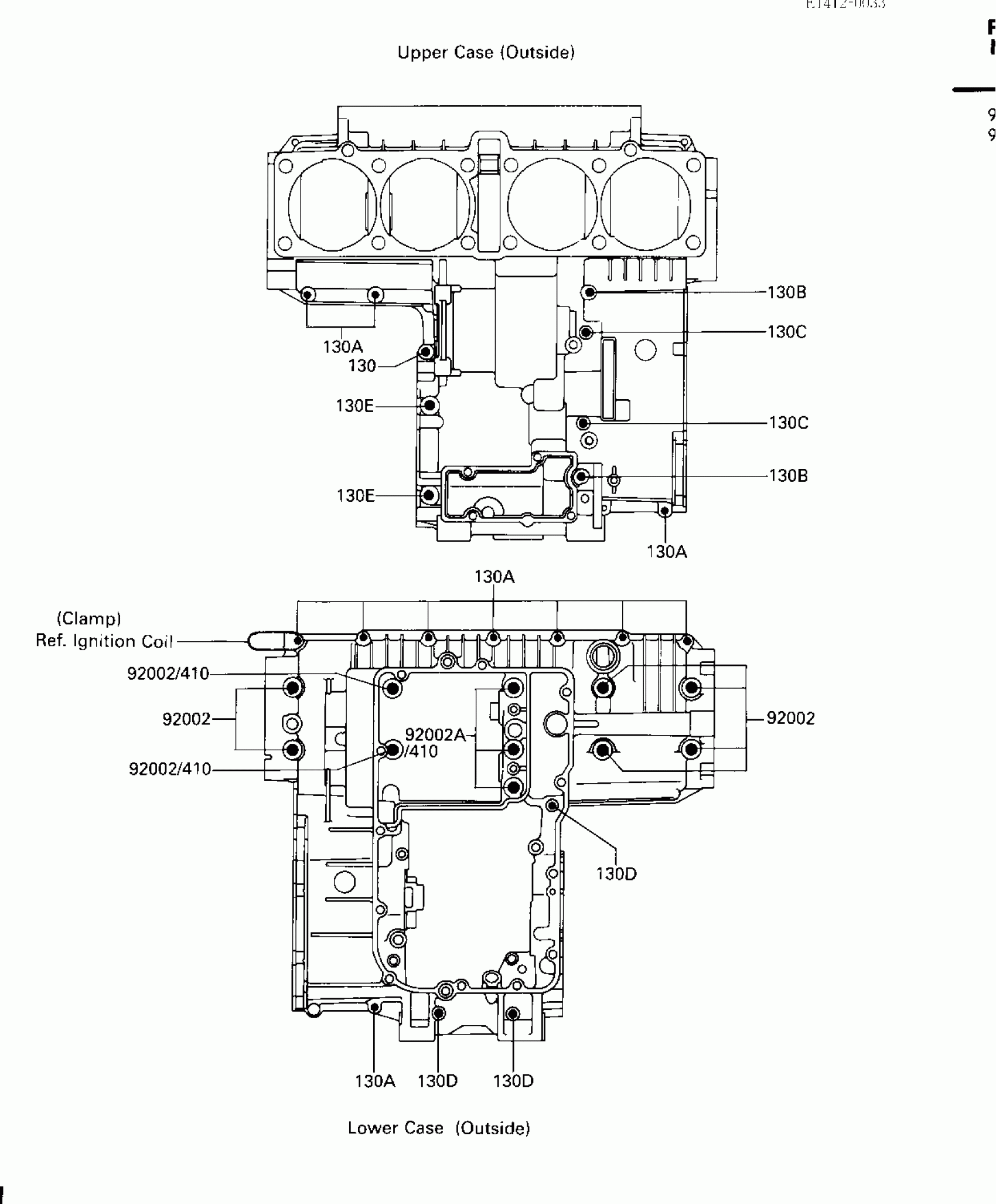

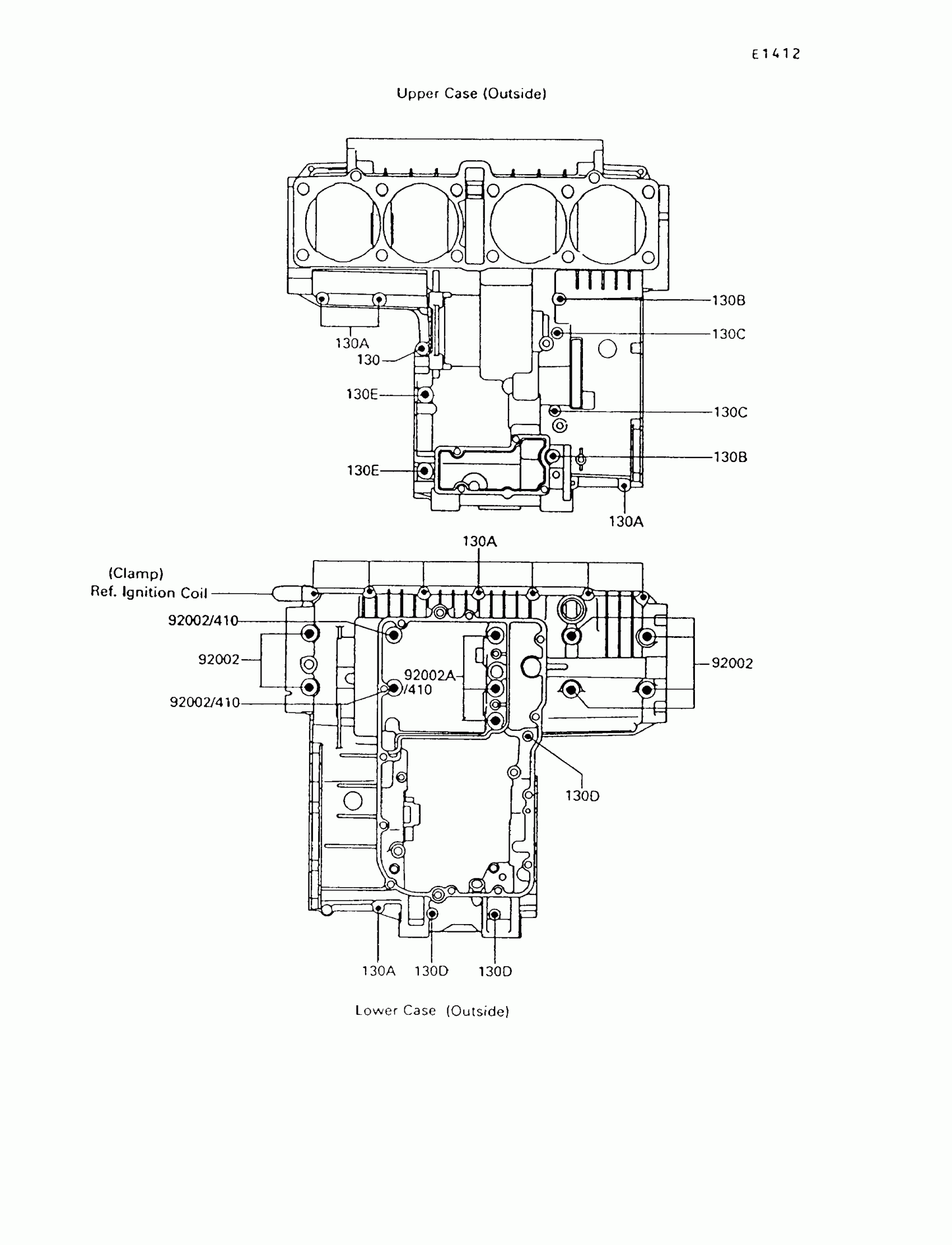

1986 Kawasaki Voyager Xii Crankcase Bolt Pattern Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

92002

BOLT,10X95

92002-1651

1
Out of stock

92002A

BOLT,10X145

92002-1652

1
Out of stock

130

BOLT-FLANGED

130Y0635

1

$4.14

In stock

130A

BOLT-FLANGED

130Y0640

1
Out of stock

130B

BOLT-FLANGED

130Y0690

1
Out of stock

130C

BOLT-FLANGED

130Z06105

1
Out of stock

130D

BOLT-FLANGED

130Z06120

1
Out of stock

130E

BOLT-FLANGED

130Z0870

1
Out of stock

410

WASHER PLAIN 10MM

410B1000

1
Out of stock
