1986 Kawasaki Voyager Xii Crankshaft Diagram

← All diagrams

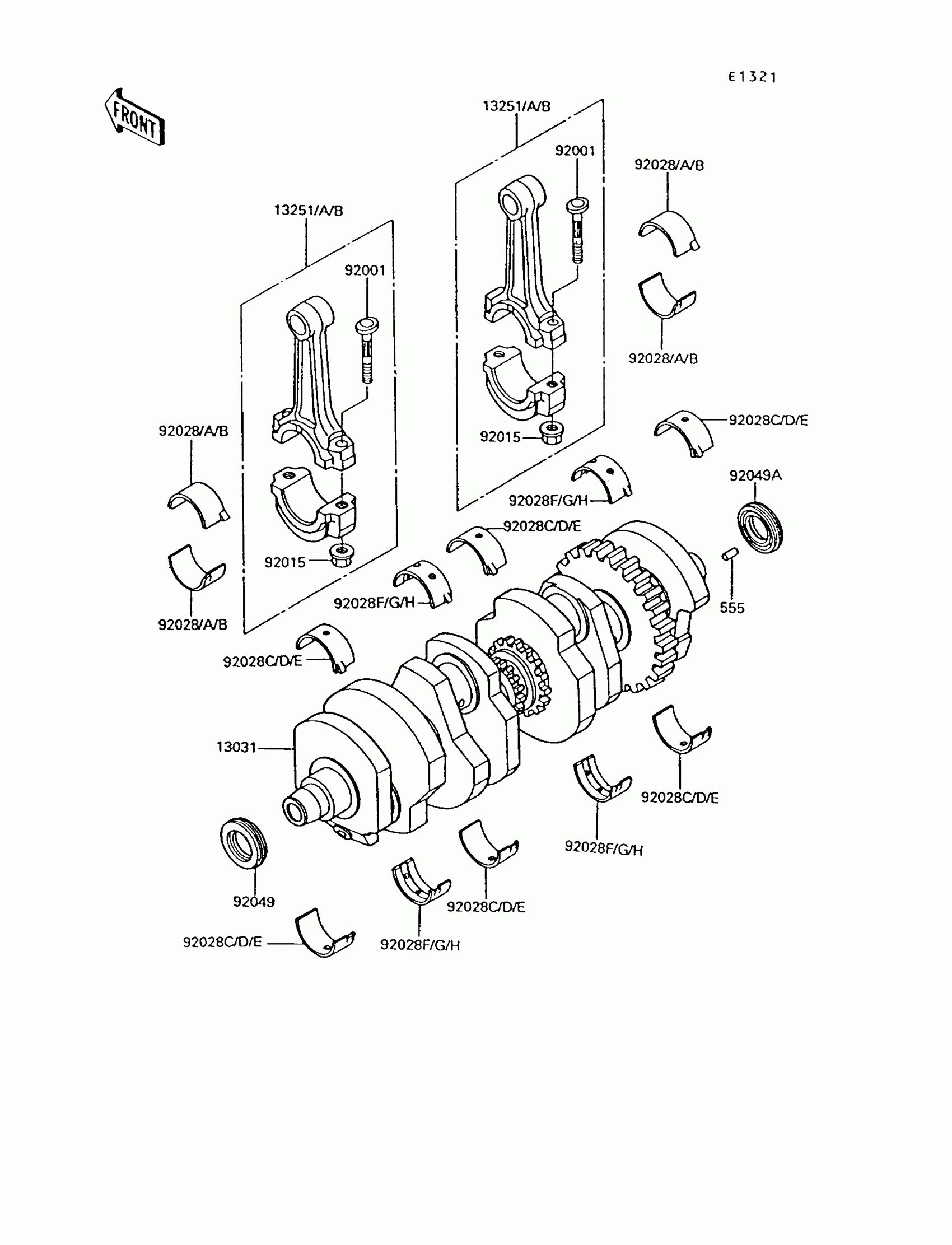

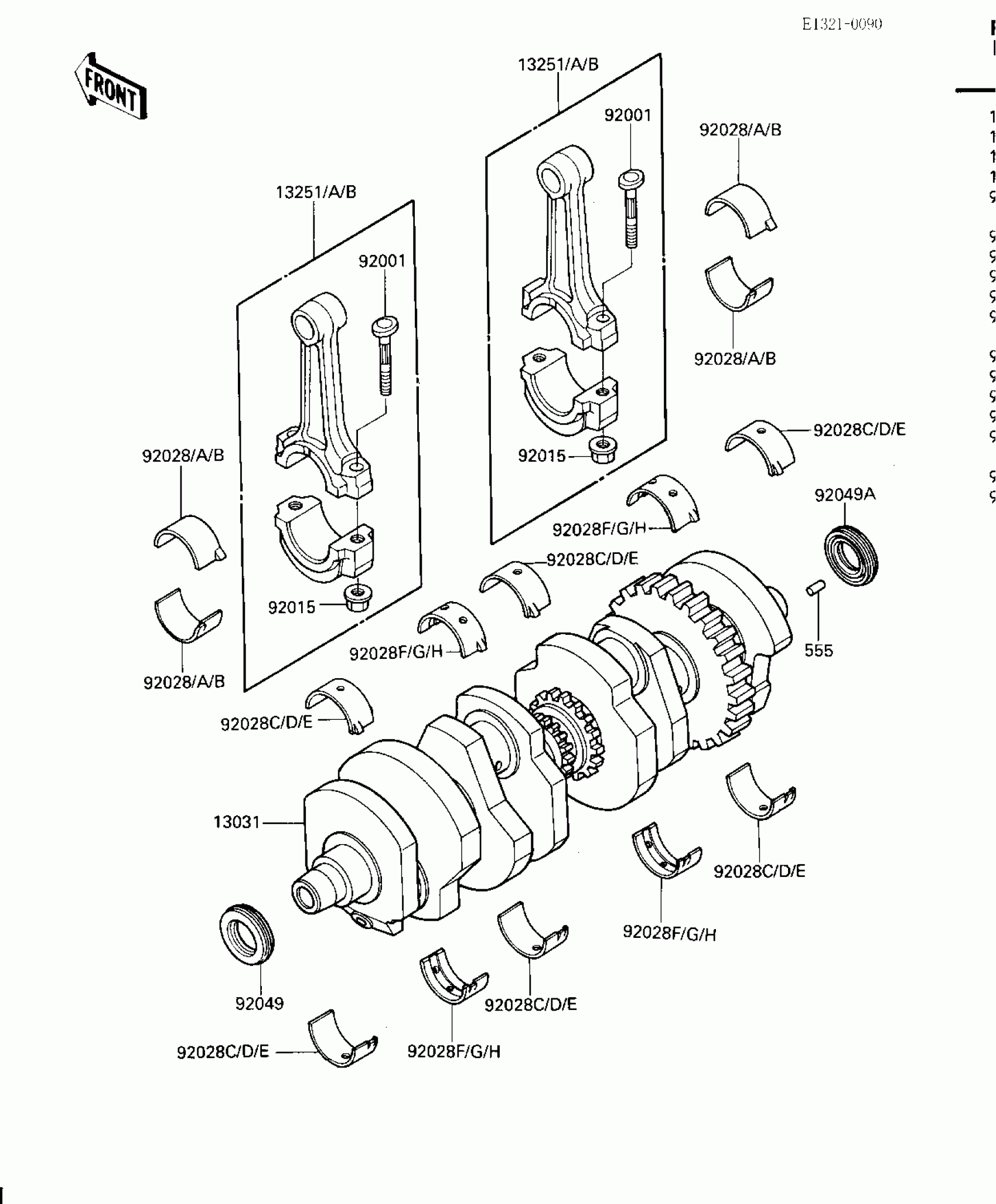

Find the part on the Crankshaft diagram for your 1986 Kawasaki Voyager Xii, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1986 Kawasaki Voyager Xii Crankshaft Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

13031

CRANKSHAFT-COMP

13031-1255

1
Out of stock

13251

ROD-ASSY-CONNECTING,H

13251-1070-HH

1
Out of stock

13251A

ROD-ASSY-CONNECTING,I

13251-1070-II

1
Out of stock

13251B

ROD-ASSY-CONNECTING,J

13251-1070-JJ

1
Out of stock

92001

BOLT,CONNECTING ROD

92001-1980

1
Out of stock

92015

NUT,FLANGED,8MM

92015-1311

1
Out of stock

92028

BUSHING,CONNECTING ROD,BLUE

92028-1394

—
Out of stock

92028A

BUSHING,CONNECTING ROD,BLACK

92028-1395

—
Out of stock

92028B

BUSHING,CONNECTING ROD,BROWN

92028-1396

—
Out of stock

92028C

BUSHING,CRANKSHAFT,BLUE

92028-1455

—
Out of stock

92028D

BUSHING,CRANKSHAFT,BLACK

92028-1456

—
Out of stock

92028E

BUSHING,CRANKSHAFT,BROWN

92028-1457

—
Out of stock

92028F

BUSHING,CRANKSHAFT,BLUE

92028-1458

—
Out of stock

92028G

BUSHING,CRANKSHAFT,BLACK

92028-1459

—
Out of stock

92028H

BUSHING,CRANKSHAFT,BROWN

92028-1460

—
Out of stock

92049

SEAL-OIL,HSCY28417

92049-1246

1
Out of stock

92049A

SEAL-OIL,HSCY25417

92049-1247

1
Out of stock

555

PIN-SPRING,4X8

555A0408

1
Out of stock
