1986 Kawasaki Voyager Xii Balancer Diagram

← All diagrams

Find the part on the Balancer diagram for your 1986 Kawasaki Voyager Xii, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

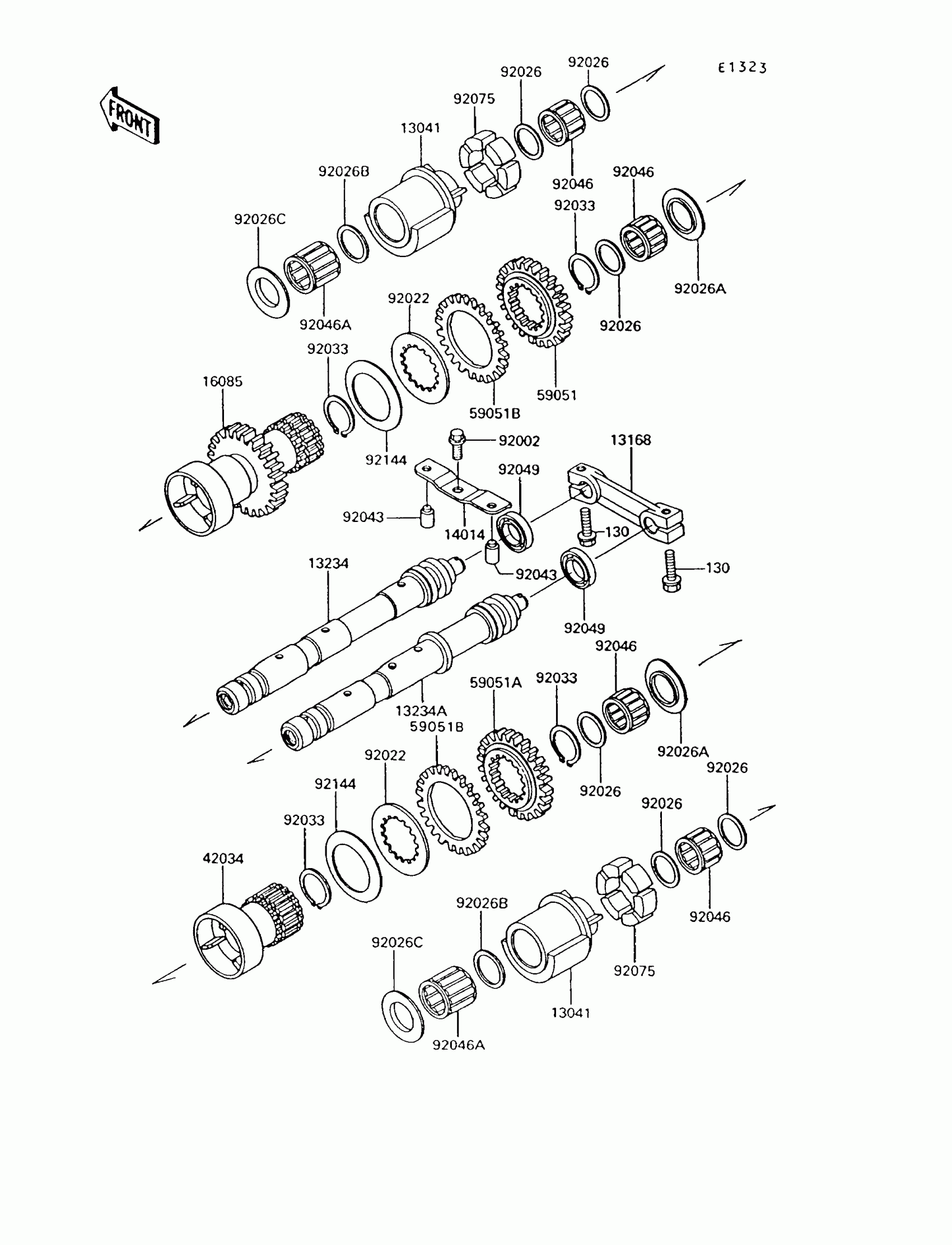

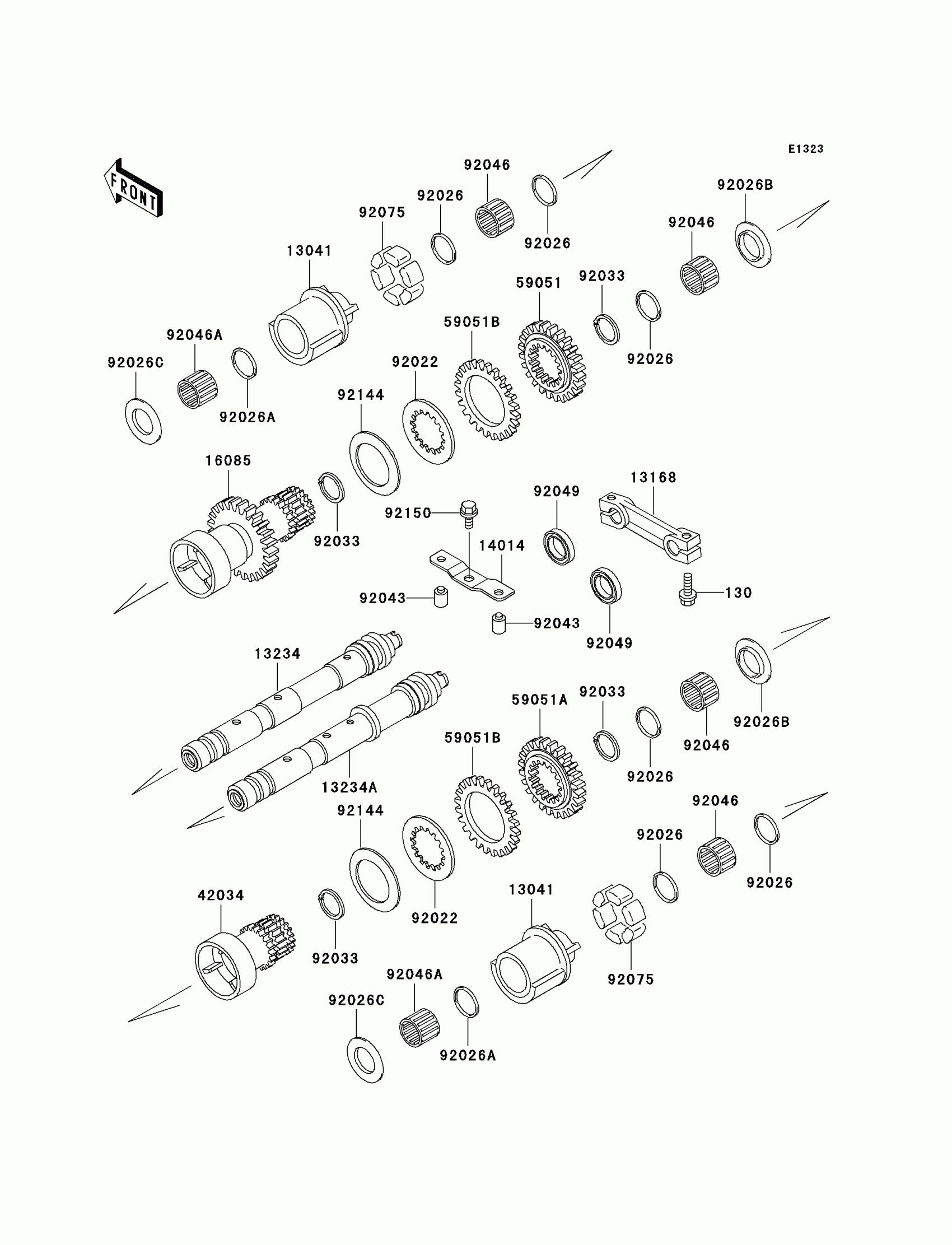

1986 Kawasaki Voyager Xii Balancer Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

13041

BALANCER

13041-1069

1

$95.99

In stock

13168

LEVER,BALANCER

13168-1297

1

$67.00

In stock

13234

1

$238.22

In stock

13234A

1

$224.33

In stock

14014

PLATE-POSITION,BALANCER

14014-1076

1
Out of stock

16085

GEAR,BALANCER,FR

16085-1200

1

$332.38

In stock

42034

1

$162.04

In stock

59051

GEAR-SPUR,29T

59051-1173

1

$137.11

In stock

59051A

GEAR-SPUR,29T

59051-1174

1

$122.76

In stock

59051B

GEAR-SPUR,28T

59051-1175

1

$70.68

In stock

92002

BOLT,6X12

92002-1563

1
Out of stock

92022

1

$9.37

In stock

92026

1

$5.61

In stock

92026A

SPACER,T=1.5

92026-1214

1

$41.65

In stock

92026B

SPACER,21.3X26X1

92026-1223

1

$7.47

In stock

92026C

SPACER

92026-1271

1

$41.65

In stock

92033

RING-SNAP

92033-1221

1

$5.61

In stock

92043

PIN,BALANCER

92043-1281

1

$9.29

In stock

92046

1

$20.42

In stock

92046A

BEARING-NEEDLE,K212824.5X

92046-1153

1
Out of stock

92049

SEAL-OIL,S192705

92049-1174

1
Out of stock

92075

DAMPER,BALANCER

92075-1590

1

$5.37

In stock

92144

SPRING,PLATE

92144-1034

1

$7.80

In stock

130

1

$4.25

In stock
