1986 Kawasaki Voyager XII Trunk Diagram

← All diagrams

Find the part on the Trunk diagram for your 1986 Kawasaki Voyager XII, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

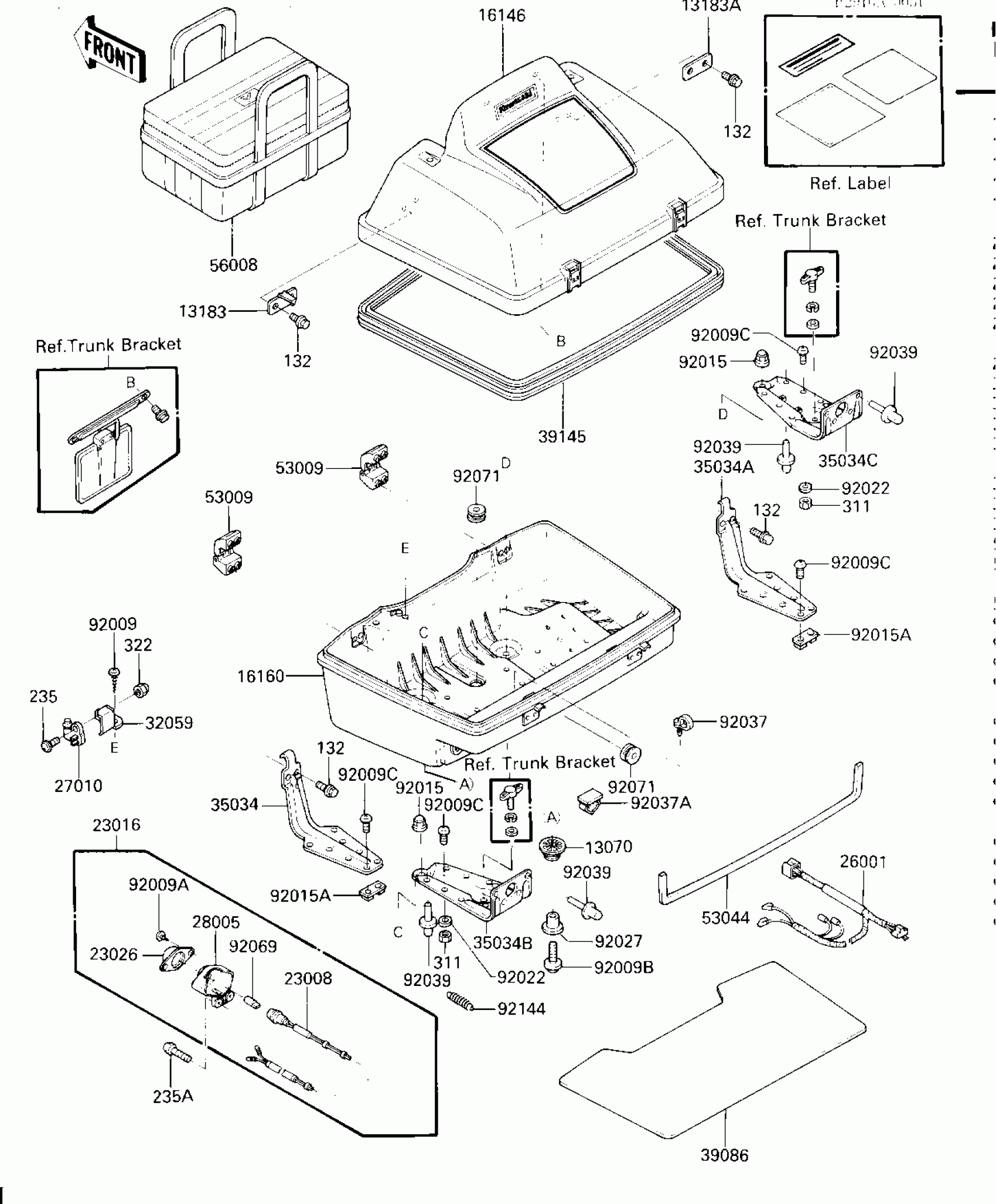

1986 Kawasaki Voyager XII Trunk Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

13070

GUIDE

13070-1149

1
Out of stock

13183

PLATE,HINGE,LH

13169-1635

1

$9.37

In stock

13183A

PLATE,HINGE,RH

13169-1636

1

$4.61

In stock

16146

COVER-ASSY,TRUNK,RED/

16146-5009-V4

1

$818.17

In stock

16160

BODY,TRUNK,L.V.RED

16160-1106-P5

1

$819.65

In stock

23008

SOCKET-ASSY,TRUNK ROOM LAMP

23008-1295

1
Out of stock

23016

1

$74.81

In stock

23026

LENS,LAMP

23026-1054

1

$9.02

In stock

26001

HARNESS,TRUNK

26001-1758

1

$39.52

In stock

27010

SWITCH,BRAKE/SIDE STAND

27010-1185

1
Out of stock

28005

1

$12.90

In stock

32059

BRACKET-SWITCH

32059-1067

1

$8.00

In stock

35034

REINFORCE

35034-1197

1

$39.49

In stock

35034A

REINFORCE

35034-1198

1

$24.64

In stock

35034B

REINFORCE

35034-1200

1

$24.88

In stock

35034C

REINFORCE

35034-1201

1

$24.88

In stock

39086

PAD-STORAGE,TRUNK

39086-1051

1

$50.58

In stock

39145

TRIM-SEAL,TRUNK

39145-1069

1

$31.59

In stock

53009

HINGE,TRUNK

53009-1071

1

$72.89

In stock

53044

TRIM,TAIL LAMP

53044-1142

1

$12.15

In stock

56008

BAG,INNER

56008-1060

1
Out of stock

92009

SCREW,TAPPING,5X10

92009-1332

1
Out of stock

92009A

SCREW,TAPPING,4X12

92009-1381

1
Out of stock

92009B

SCREW,6X28,BLACK

92009-1400

1
Out of stock

92009C

SCREW,4X12

92009-1448

1
Out of stock

92015

NUT,LOCK 6MM

92015-1262

1
Out of stock

92015A

NUT,PLATE,4MM

92015-1620

1

$8.00

In stock

92022

WASHER,4.3X12X0.8

92022-1830

1
Out of stock

92027

COLLAR

92027-195

1

$5.21

In stock

92037

CLAMP,SPEED,L=43

92037-1290

1

$7.25

In stock

92037A

CLAMP,HARNESS

92037-1793

1

$8.03

In stock

92039

RIVET

92039-1150

1

$3.53

In stock

92069

BULB,12V 3CP

92069-1066

1

$5.80

In stock

92071

GROMMET

92071-1136

1

$7.29

In stock

92144

1

$16.12

In stock

132

BOLT-FLANGED-SMALL,5X10

132J0510

1
Out of stock

235

SCREW-PAN-WP-CROS

235C0414

1
Out of stock

235A

SCREW-PAN-WP-CROS

235C0430

1
Out of stock

311

NUT-HEX

311C0400

1

$0.63

In stock

322

NUT-CAP,4MM

322C0400

1
Out of stock
