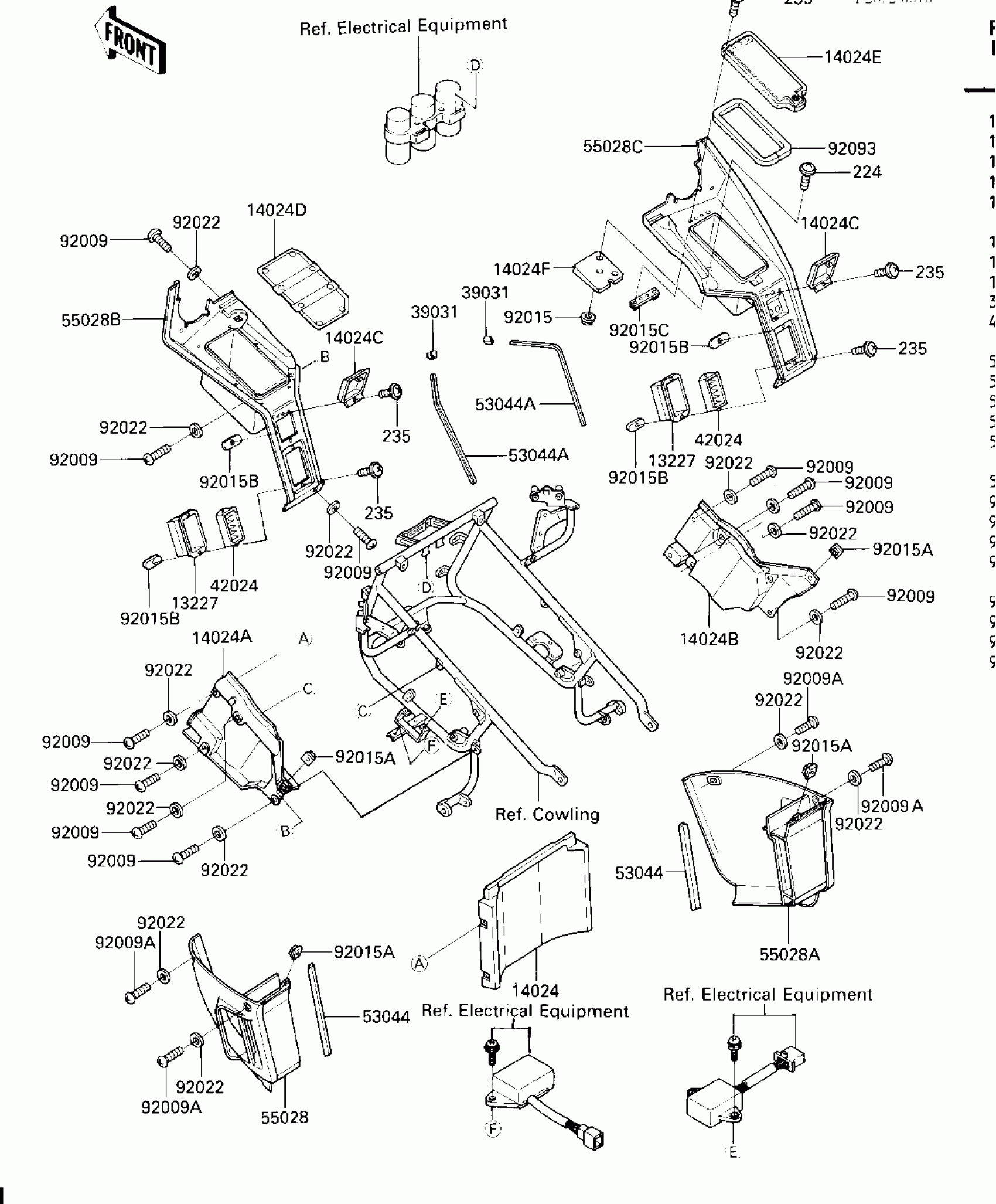

Kawasaki Voyager XII FAIRING LOWERS Diagram

#

Description
Price

13227

HOUSING,SHUTTER

13227-1012

$14.00

14024

COVER,COWLING,INNER,FR

14024-1183

Unavailable

14024A

COVER,COWLING,INNER,L

14024-1184

Unavailable

14024B

COVER,COWLING,INNER,RH

14024-1185

$129.73

14024C

COVER,TRANSCEIVER

14024-1191

$24.17

14024D

COVER,FAIRING POCKET,

14024-1199

Unavailable

14024E

COVER,FAIRING POCKET,RH

14024-1200

$99.47

14024F

COVER,AMPLIFIER

14024-1304

$11.61

39031

CAP-END,TRIM

39031-1058

$4.85

42024

SHUTTER,LOUVER

42024-1002

$24.37

53044

TRIM,COWLING,LWR

53044-1159

$20.73

53044A

TRIM,L=350

53044-1161

$31.14

55028

COWLING,LWR,LH,L.V.RE

55028-1106-P5

$837.95

55028A

COWLING,LWR,RH,L.V.RE

55028-1107-P5

$519.08

55028B

COWLING,INNER,LH

55028-1108

$149.63

55028C

COWLING,INNER,RH

55028-1109

$229.80

92009

SCREW,5X18

92009-1445

$3.29

92009A

SCREW,5X18

92009-1445

$3.29

92015

NUT,FLANGED,5MM

92015-1259

$2.99

92015A

NUT,5MM

92015-1710

$4.67

92015B

NUT,4MM

92015-1598

$4.51

92015C

NUT,BRACKET,4MM

92015-1599

$9.34

92022

WASHER,NYLON,5.3X11.5X1.5

92022-1521

$2.99

92093

SEAL,FAIRING POCKET

92093-1211

$9.41

224

SCREW-PAN-WP-CROS

224B0514

$3.14

235

SCREW-PAN-WP-CROS

235C0412

$2.14
