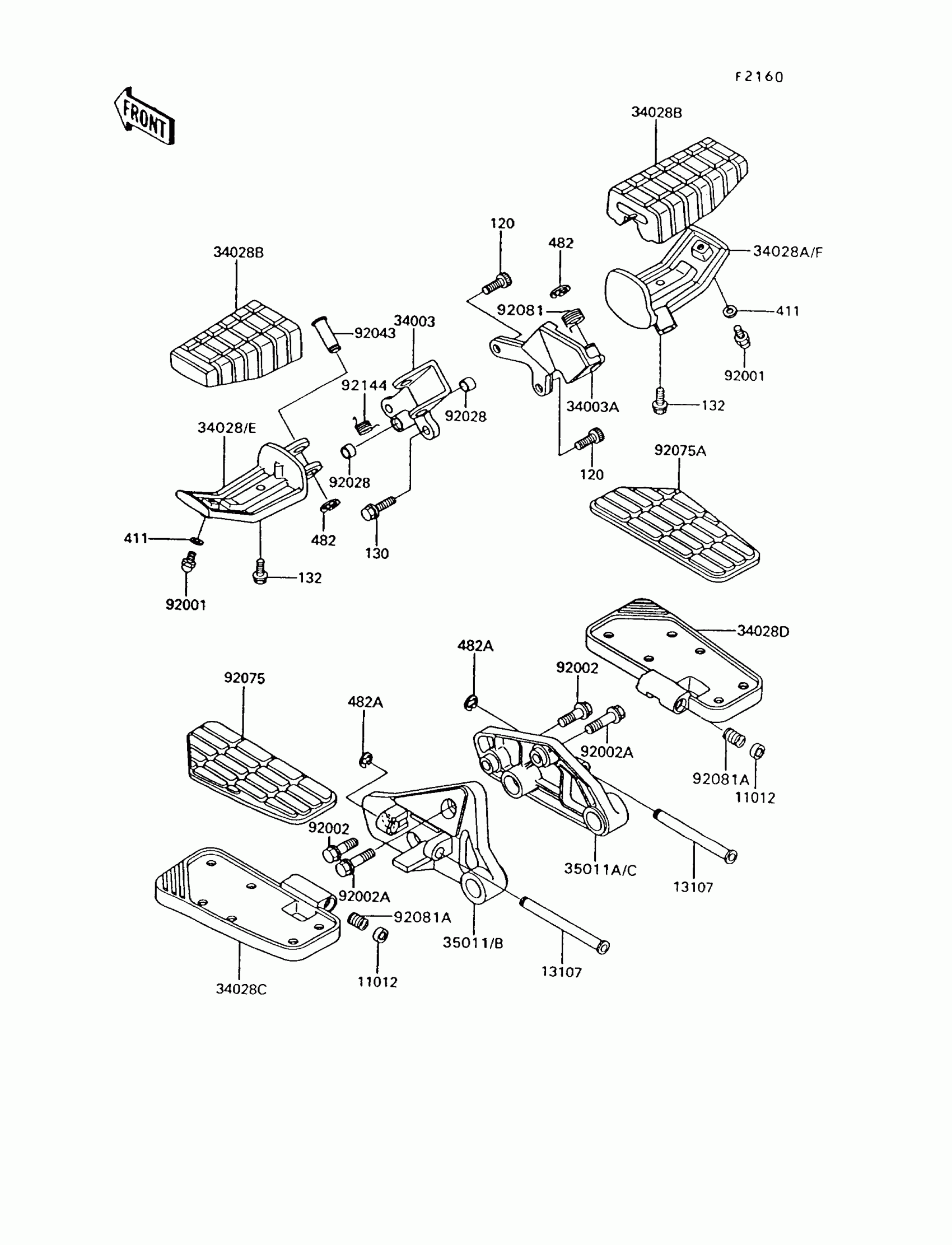

Find the part on the Footrests diagram for your 1986 Kawasaki Voyager XII, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1986 Kawasaki Voyager XII Footrests Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11012

CAP

11012-1498

1
Out of stock

13107

SHAFT,REAR STEP

13107-1174

1
Out of stock

34003

HOLDER-STEP,FR,LH

34003-1253

1
Out of stock

34003A

HOLDER-STEP,FR,RH

34003-1254

1
Out of stock

34028

STEP,FR,LH

34028-1183

1

$81.38

In stock

34028A

STEP,FR,RH

34028-1184

1

$77.90

In stock

34028B

STEP,FR,RUBBER

34028-1205

1

$35.98

In stock

34028C

STEP,RR,LH

34028-1231

1

$127.57

In stock

34028D

STEP,RR,RH

34028-1232

1

$114.26

In stock

35011

STAY,MUFFLER,LH

35011-1278

1
Out of stock

35011A

STAY,MUFFLER,RH

35011-1279

1
Out of stock

92001

BOLT,BANK SENSOR

92001-1905

1
Out of stock

92002

BOLT,FLANGED,10X25

92002-1828

1
Out of stock

92002A

BOLT,FLANGED,10X35

92002-1829

1
Out of stock

92028

BUSHING,13X15X20

92028-1251

1
Out of stock

92043

PIN,12X37

92043-1144

1
Out of stock

92075

DAMPER,REAR STEP,LH,RUBBER

92075-1803

1
Out of stock

92075A

DAMPER,REAR STEP,RH,RUBBER

92075-1804

1
Out of stock

92081

SPRING,STEP RETURN

92144-1568

1
Out of stock

92144

SPRING,STEP RETURN

92081-1956

1
Out of stock

92144A

SPRING,REAR STEP

92081-1957

1
Out of stock

120

BOLT-SOCKET

120S0814

1
Out of stock

130

BOLT-FLANGED,8X20

130J0820

1
Out of stock

132

BOLT-FLANGED-SMALL,6X16

132G0616

1
Out of stock

411

WASHER PLAIN 6MM

411B0600

1
Out of stock

482

CIRCLIP-TYPE-E,10MM

482L0100

1
Out of stock

482A

CIRCLIP-TYPE-E

482L0200

1
Out of stock
