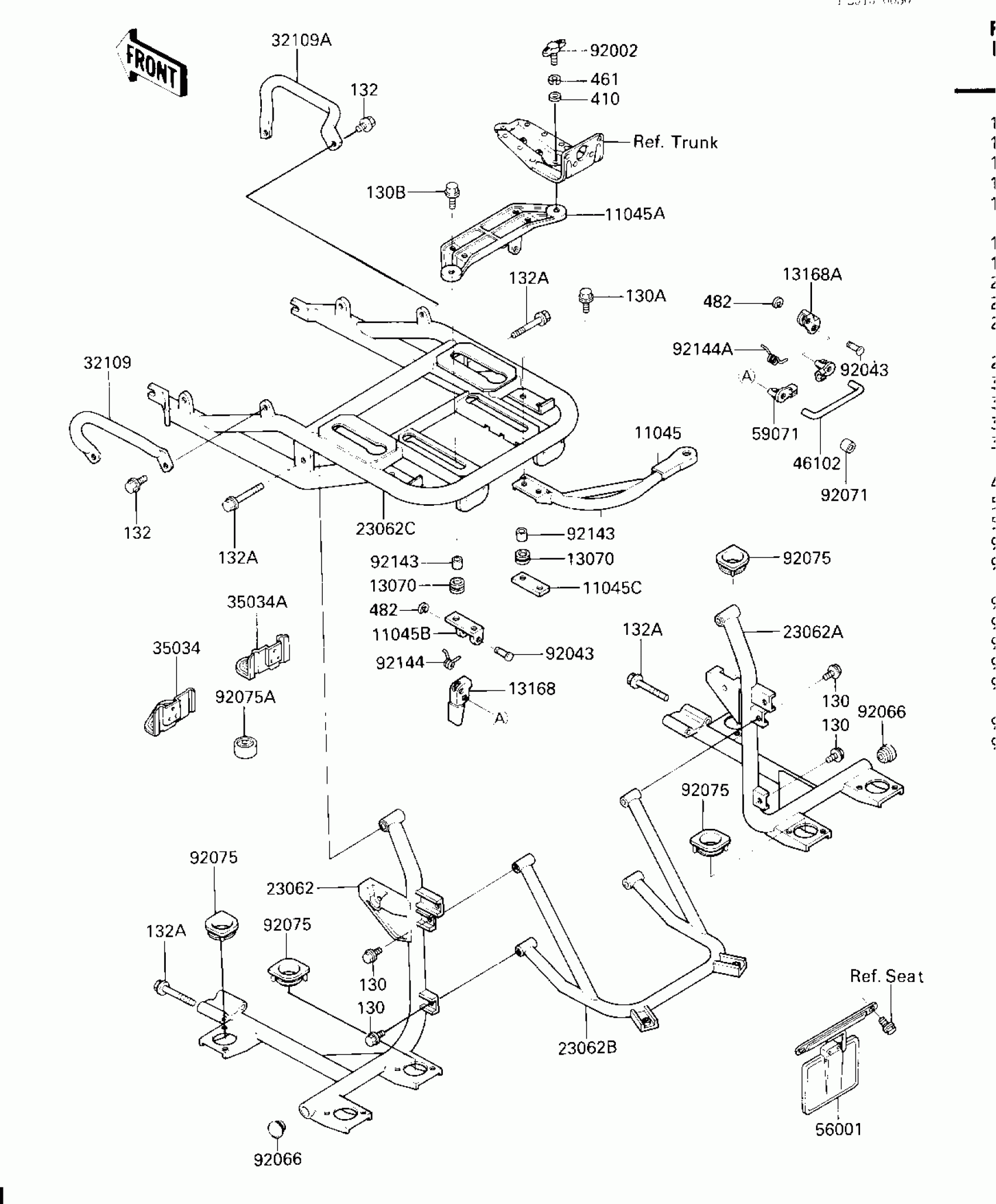

Kawasaki Voyager XII TRUNK BRACKET Diagram

#

Description
Price

11045

BRACKET,ANTENNA

11044-1636

Unavailable

11045A

BRACKET,TRUNK

11044-1637

$95.45

11045B

BRACKET,TRUNK,LH

11044-1676

$20.46

11045C

BRACKET,TRUNK,RH

11044-1677

$12.15

13070

GUIDE

13070-1151

$5.64

13168

LEVER

13168-1307

$10.46

13168A

LEVER

13168-1329

$8.39

23062

BRACKET-COMP,LH

23062-1060

$397.94

23062A

BRACKET-COMP,RH

23062-1061

$397.94

23062B

BRACKET-COMP,TAIL

23062-1062

$220.35

23062C

BRACKET-COMP,CNT

23062-1066

$515.22

32109

GRIP-FRAME,LH

32109-1137

$38.51

32109A

GRIP-FRAME,RH

32109-1138

$38.51

35034

REINFORCE

35034-1194

$11.73

35034A

REINFORCE

35034-1195

$11.75

46102

ROD

46102-1182

$5.22

56001

MIRROR-ASSY,VANITY

56001-1268

$118.39

59071

JOINT

59071-1103

$6.62

92002

BOLT,WING,8MM

92002-1672

Unavailable

92043

PIN,6X28

92043-1308

$5.71

92066

PLUG

92066-1220

$4.39

92071

GROMMET,ANTENNA LEAD

92071-1057

$2.95

92075

DAMPER

92075-1840

$10.14

92075A

DAMPER,MIRROR STOPPER

92075-1844

$9.85

92143

COLLAR,6.8X10X9.5

92027-1983

$3.10

92144

SPRING,RETURN

92081-1967

$4.76

92144A

SPRING

92144-1045

$5.61

130

BOLT-FLANGED

130B0614

Unavailable

130A

BOLT-FLANGED,6X10

130C0610

Unavailable

130B

BOLT-FLANGED,6X20

130C0620

Unavailable

132

BOLT-FLANGED-SMALL,8X16

132E0816

$4.14

132A

BOLT-FLANGED-SMALL,8X55

132E0855

$5.66

410

WASHER,PLAIN,8MM

92022-1554

Unavailable

461

WASHER-SPRING,8MM,BLACK

461K0800

Unavailable

482

CIRCLIP-TYPE-E,4MM

482L4000

Unavailable
