1986 Kawasaki Voyager XII Stands Diagram

← All diagrams

Find the part on the Stands diagram for your 1986 Kawasaki Voyager XII, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

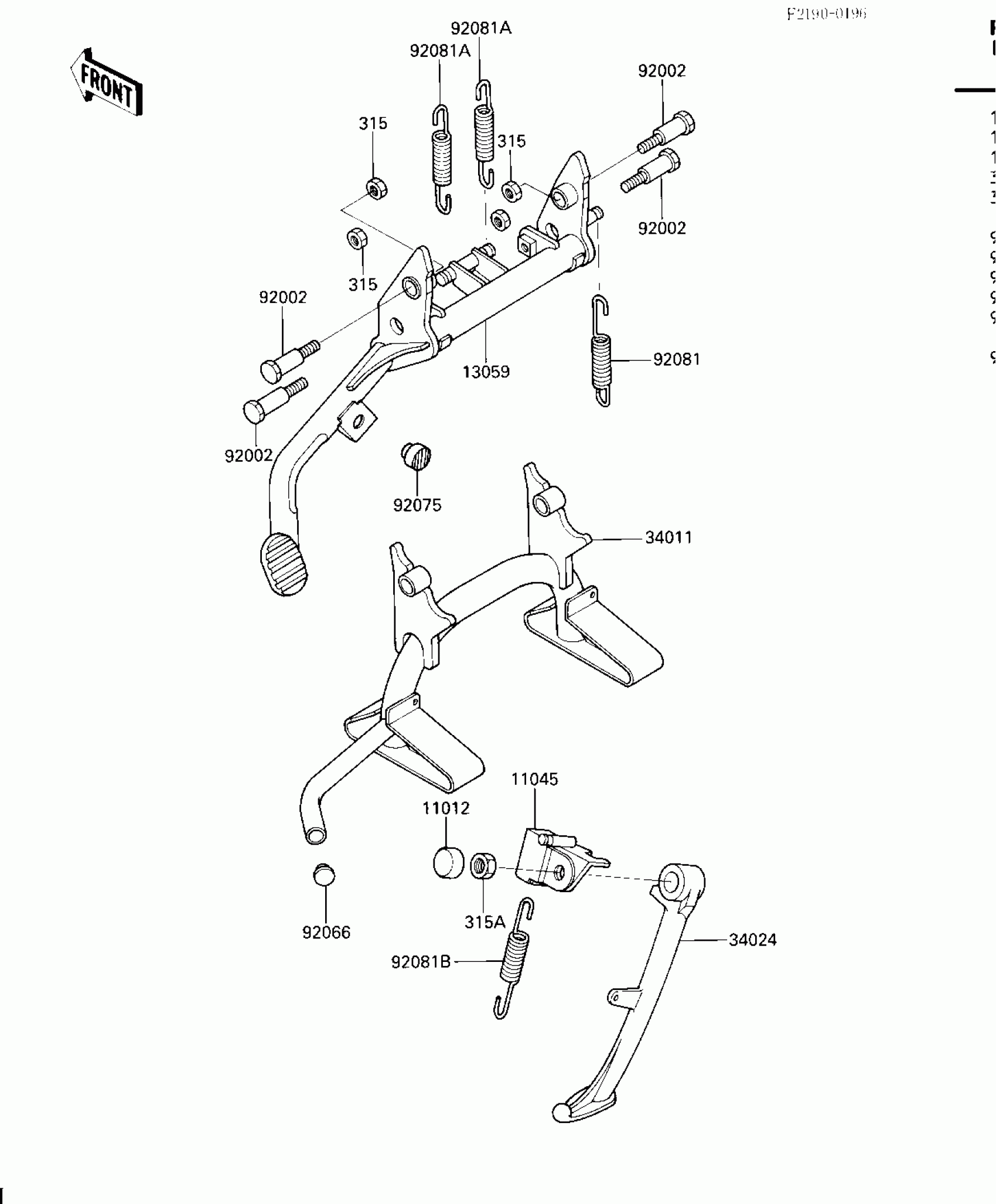

1986 Kawasaki Voyager XII Stands Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11012

CAP,NUT

11012-1508

1

$7.90

In stock

11045

1

$34.33

In stock

13059

1

$187.75

In stock

34011

STAND-CENTER

34011-1127

1

$178.04

In stock

34024

STAND-SIDE

34024-1202

1

$139.57

In stock

92002

BOLT,CENTER STAND

92002-1679

1
Out of stock

92066

PLUG

92066-1184

1

$3.81

In stock

92075

DAMPER

92075-015

1

$3.97

In stock

92081

SPRING,STAND

34025-008

1

$7.44

In stock

92081A

SPRING,STAND

92081-1586

1
Out of stock

92081B

SPRING,SIDE STAND

92081-1727

1

$10.19

In stock

315

NUT-HEX-FINE,10MM,BLACK

315C1000

1
Out of stock

315A

NUT-HEX-FINE

315C1200

1
Out of stock
