1986 Kawasaki Voyager Xii Labels Diagram

← All diagrams

Find the part on the Labels diagram for your 1986 Kawasaki Voyager Xii, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

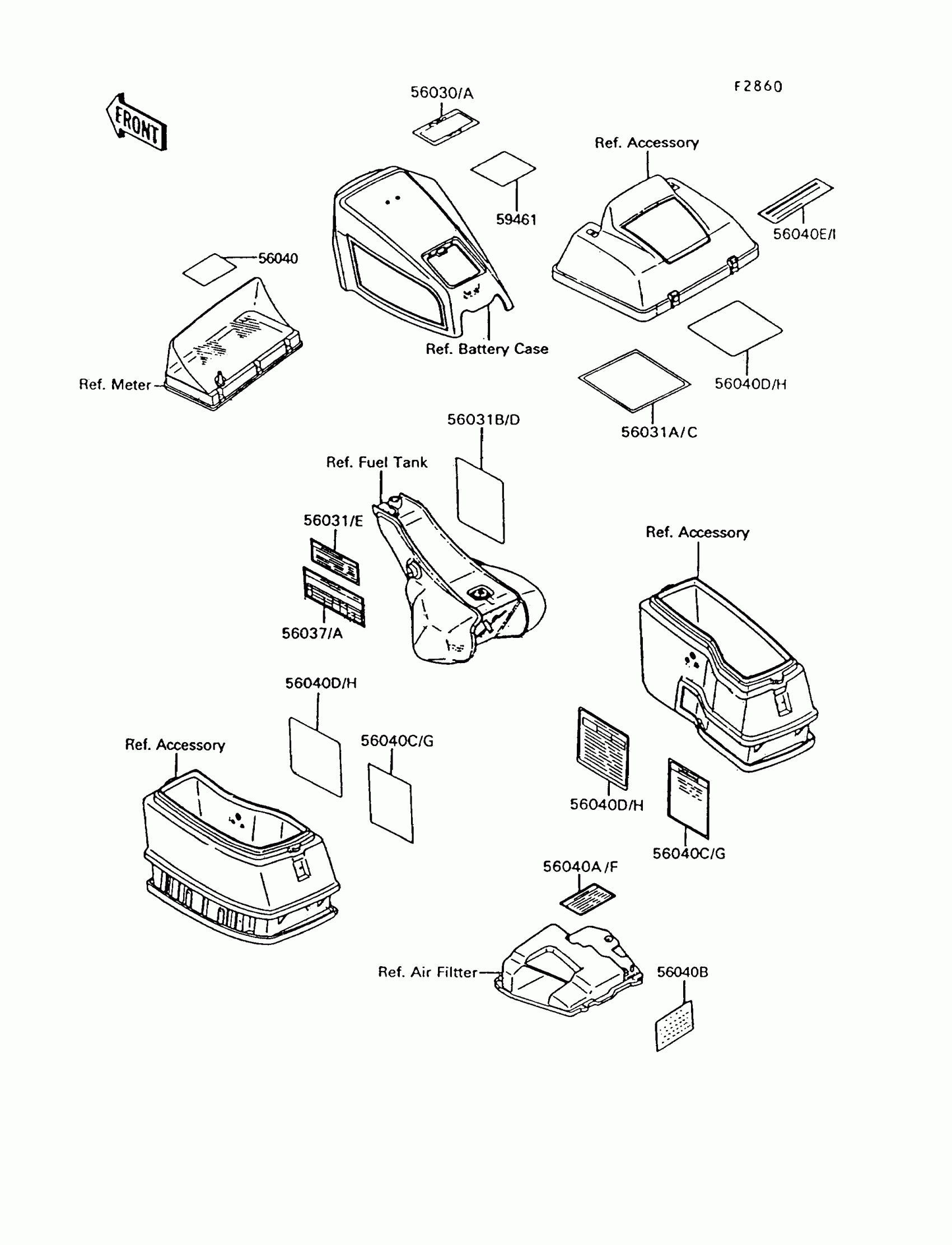

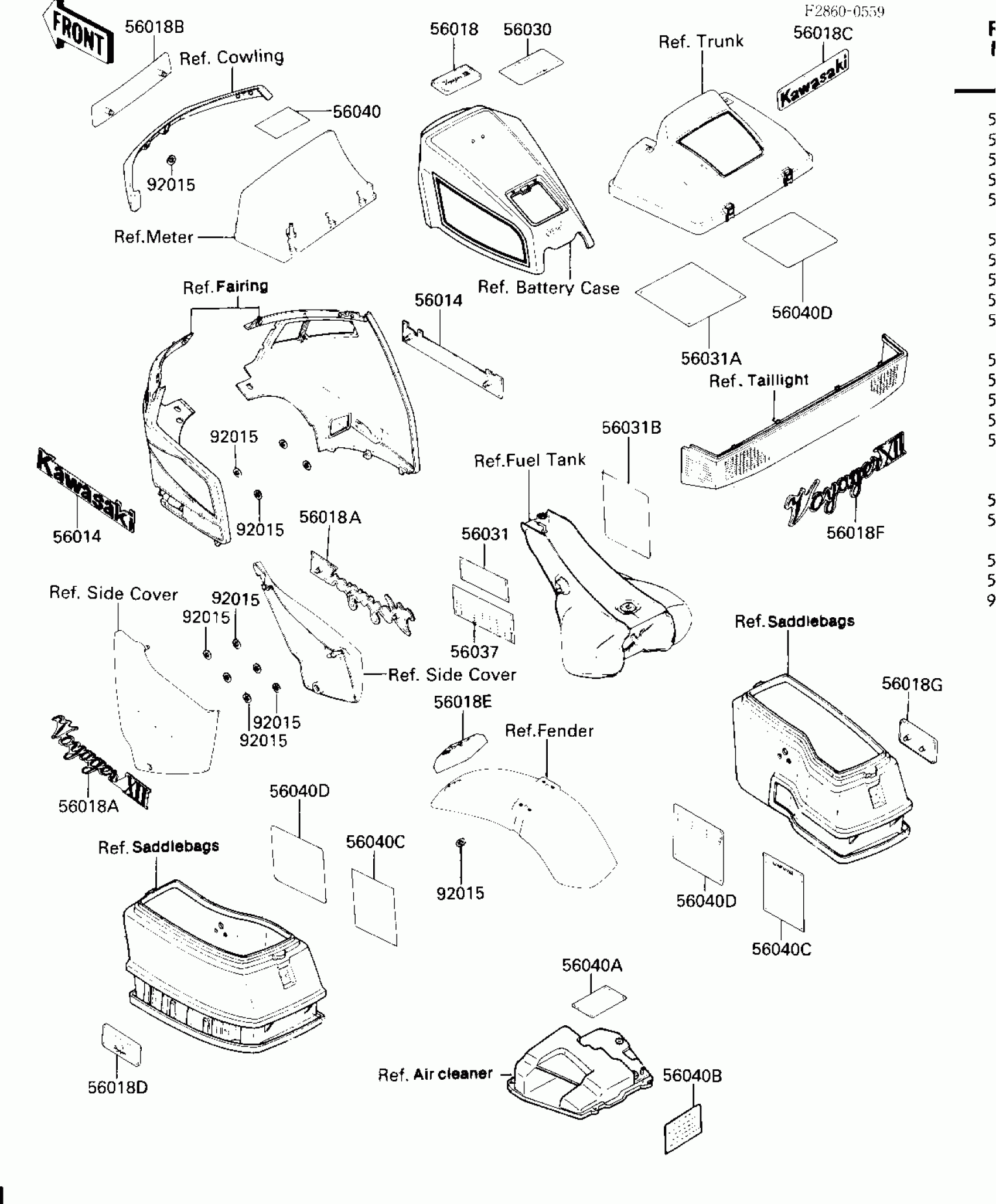

1986 Kawasaki Voyager Xii Labels Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

56014

1

$61.80

In stock

56018

MARK,DUMMY TANK COVER

56018-1856

1
Out of stock

56018A

MARK,SIDE COVER

56018-1857

1

$79.03

In stock

56018B

1

$48.38

In stock

56018C

1

$45.22

In stock

56018D

MARK,SIDE BAG,LH

56018-1860

1

$61.01

In stock

56018E

MARK,FRONT FENDER

56018-1861

1

$100.40

In stock

56018F

MARK,TAIL LAMP

56018-1862

1

$62.45

In stock

56018G

MARK,SIDE BAG,RH

56018-1882

1

$69.07

In stock

56030

1

$9.41

In stock

56031

LABEL-MANUAL,OIL & OIL FILTER

56031-1465

1
Out of stock

56031A

1

$10.08

In stock

56031B

1

$10.08

In stock

56037

1

$2.83

In stock

56040

1

$5.32

In stock

56040A

LABEL-WARNING,AIR INTAKE

56040-1014

1
Out of stock

56040B

LABEL-WARNING,EVAPO

56040-1170

1

$4.76

In stock

56040C

1

$9.25

In stock

56040D

1

$16.51

In stock

92015

NUT,PUSH,3MM

92018-005

1

$2.25

In stock
