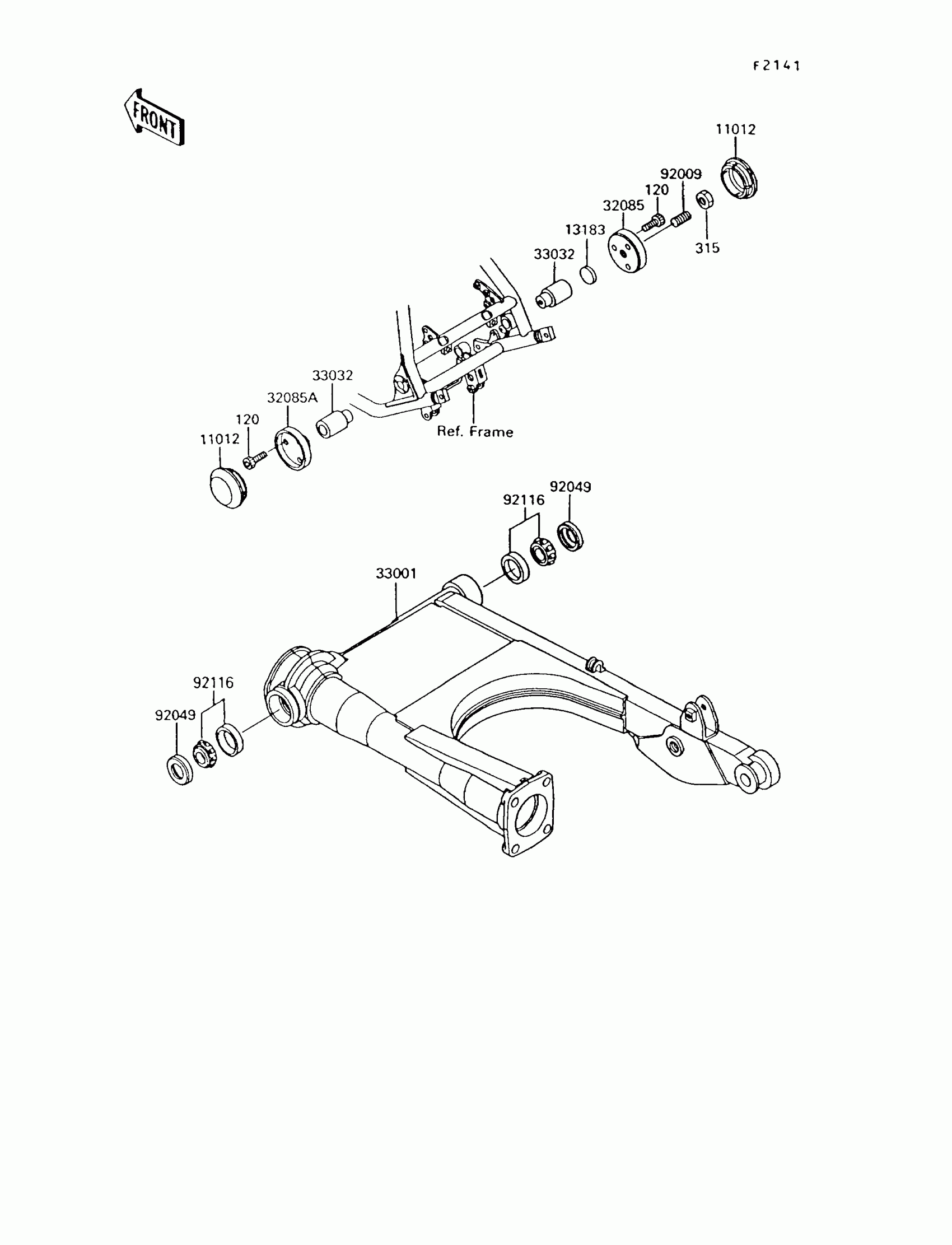

Kawasaki Voyager XII Swingarm Diagram

#

Description
Price

120

BOLT-SOCKET,6X12

120S0612

Unavailable

315

NUT-HEX-FINE

315C1200

Unavailable

11012

CAP,SWING ARM

11012-1433

$17.72

13183

PLATE,25X4.5

13183-1004

$5.66

32085

STOPPER,SWING ARM SHAFT,RH

32085-1227

$56.58

32085A

STOPPER,SWING ARM SHAFT,LH

32085-1228

$70.20

33001

ARM-COMP-SWING

33001-1304

$717.14

33032

SHAFT-SWING ARM

33032-1120

$41.72

92009

SCREW,SOCKET,12X22

92009-1374

$10.24

92049

SEAL-OIL,26406

92049-1030

$7.41

92116

BEARING-ROLLER,4T30203E1

92116-1001

$33.92
