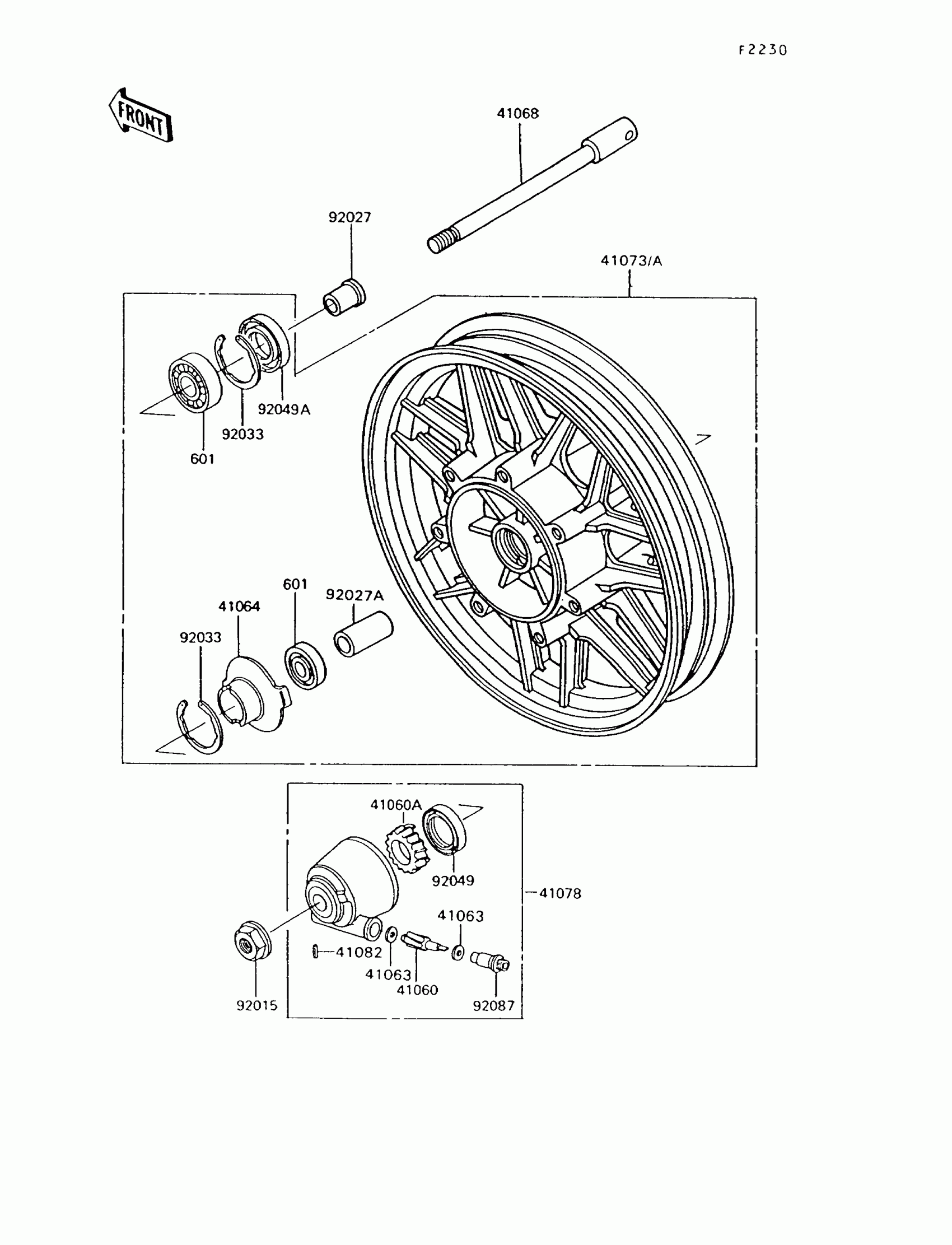

Kawasaki Voyager XII Front Wheel Diagram

Description

Price

601

BEARING-BALL,#6302UG

601B6302UG

$38.63

41060

GEAR-METER SCREW,9T

41060-1016

Unavailable

41060A

GEAR-METER SCREW,25T

41060-1041

$19.10

41063

WASHER,5.1X9X0.4

41063-001

$4.17

41064

RECEIVER-SPEEDOMETER

41064-1006

$11.33

41068

AXLE,FR

41068-1199

$79.29

41073A

WHEEL-ASSY,FR,GRAY NO.1

41073-1552-V8

$1,093.50

41078

CASE-ASSY-METER GEAR

41078-1064

$129.55

41082

PIN,SPRING

41082-001

$3.53

92015

NUT,14MM

92015-1407

$7.54

92027

COLLAR,L=30

92027-1225

$16.49

92027A

COLLAR,15.2X22X76

92027-1921

$19.10

92033

RING-SNAP,42MM

92033-1041

$4.64

92049

SEAL-OIL,BJN30427-C3

92049-1057

$7.08

92049A

SEAL-OIL,BJN22425

92049-1058

$7.41

92087

BUSHING-METER GEAR

92087-1002

$22.34
