1986 Kawasaki Voyager Xii Handlebar Diagram

← All diagrams

Find the part on the Handlebar diagram for your 1986 Kawasaki Voyager Xii, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

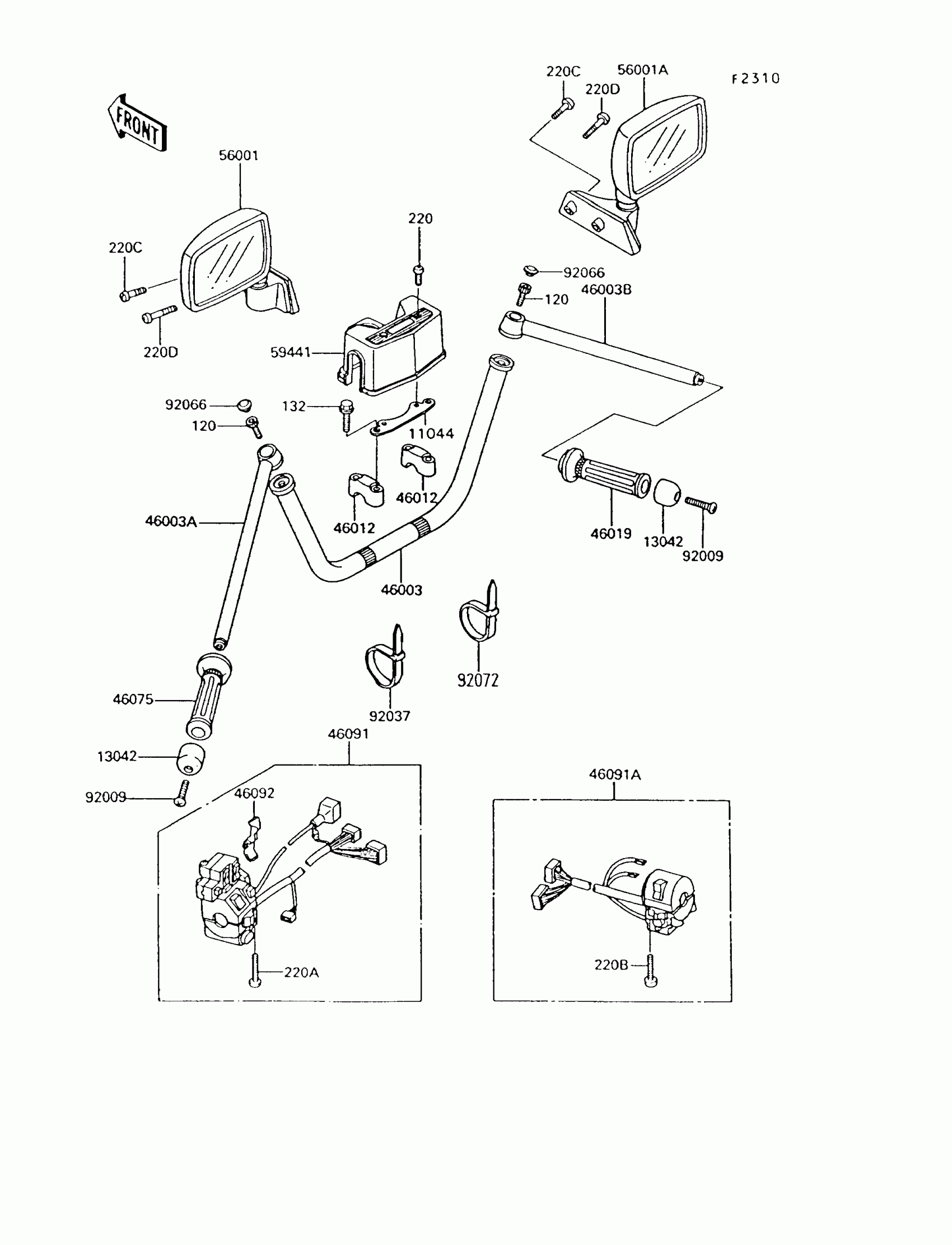

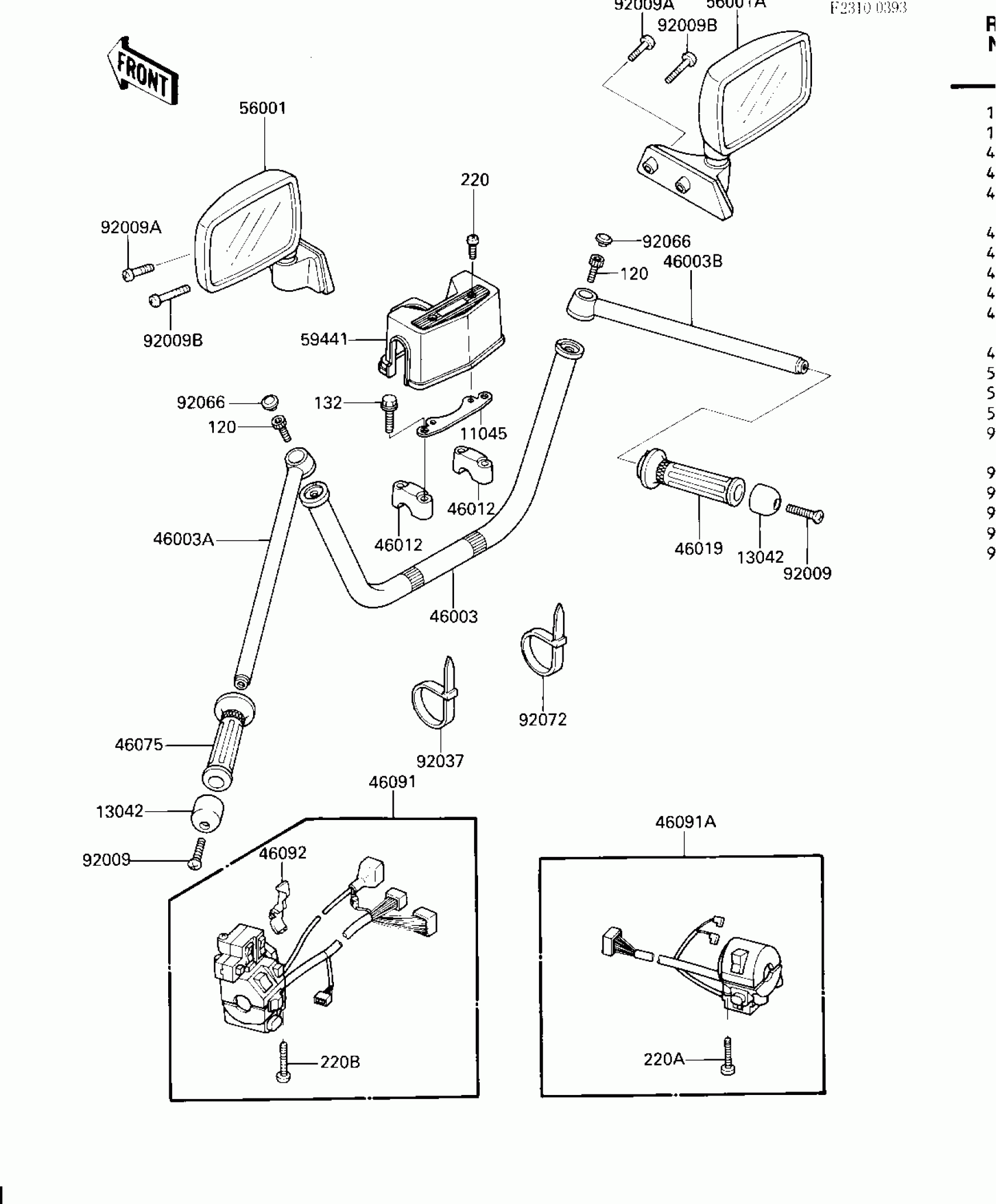

1986 Kawasaki Voyager Xii Handlebar Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11045

1

$9.10

In stock

13042

WEIGHT,HANDLE

13042-1051

1
Out of stock

46003

HANDLE,CNT

46003-1210

1
Out of stock

46003A

HANDLE,LH

46003-1211

1

$110.27

In stock

46003B

HANDLE,RH

46003-1212

1

$110.27

In stock

46012

HOLDER-HANDLE,UPP

46012-1151

1

$18.14

In stock

46019

GRIP-ASSY,THROTTLE

46019-1064

1

$39.89

In stock

46075

GRIP,LH

46075-1068

1
Out of stock

46091

1

$378.55

In stock

46091A

1

$147.29

In stock

46092

LEVER-GRIP,CHOKE

46092-1124

1

$6.95

In stock

56001

MIRROR-ASSY,LH

56001-1262

1
Out of stock

56001A

MIRROR-ASSY,RH

56001-1263

1

$107.82

In stock

59441

COVER-HANDLE

59441-1065

1

$24.17

In stock

92009

SCREW,8X45

92009-1257

1
Out of stock

92009A

SCREW,6X30

92009-1496

1
Out of stock

92009B

SCREW,6X45

92009-1497

1
Out of stock

92037

CLAMP,BAND,L=137

92037-1817

1
Out of stock

92066

PLUG,18.3X4.5

92066-1234

1

$8.97

In stock

92072

BAND,L=202

92072-1195

1

$1.34

In stock

120

BOLT-SOCKET

120T1025

1
Out of stock

132

BOLT-FLANGED-SMALL

132G0840

1
Out of stock

220

SCREW-PAN-CROS,4X16

220C0416

1
Out of stock

220A

SCREW-PAN-CROS,5X40

220C0540

1
Out of stock

220B

1

$1.73

In stock
