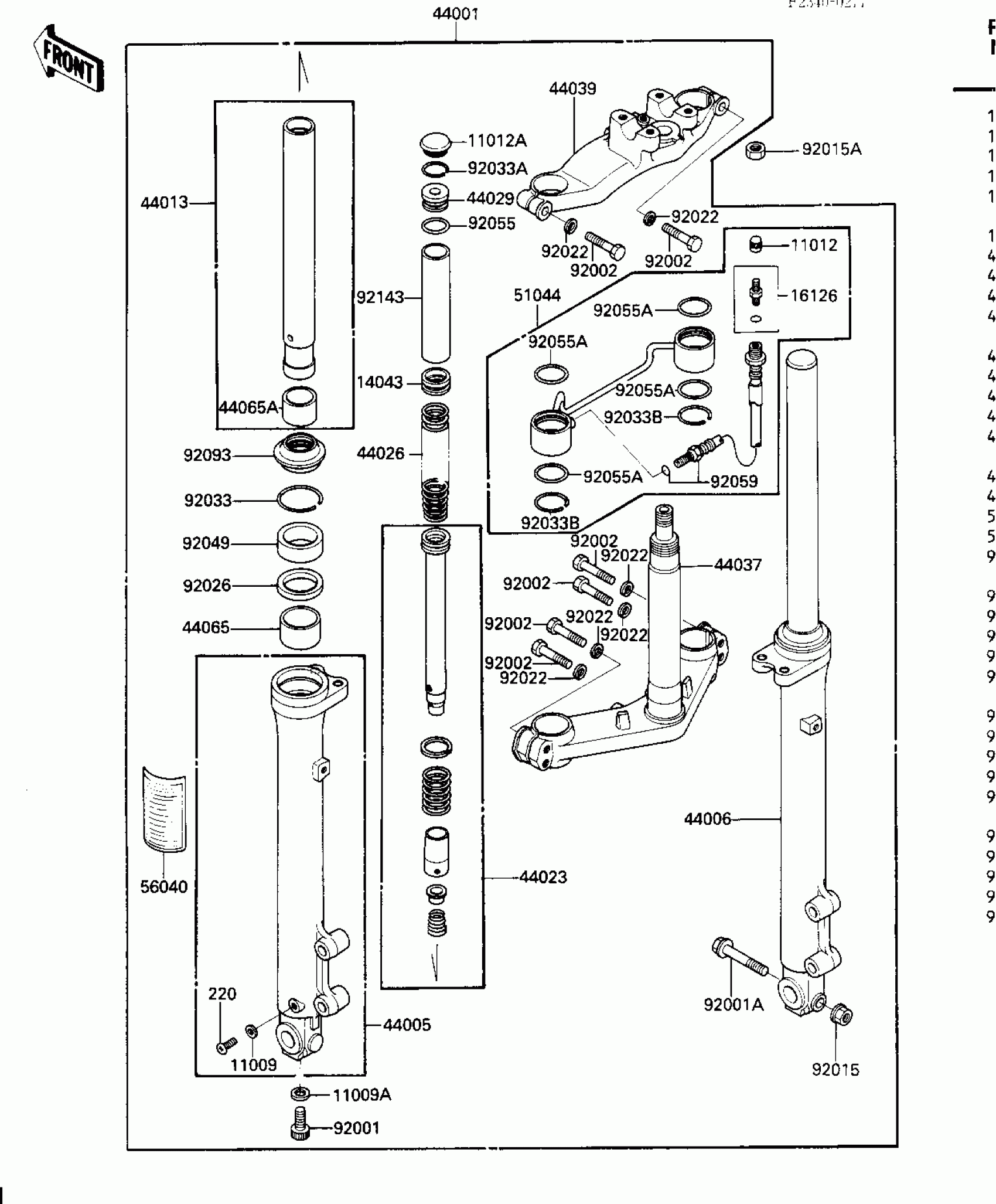

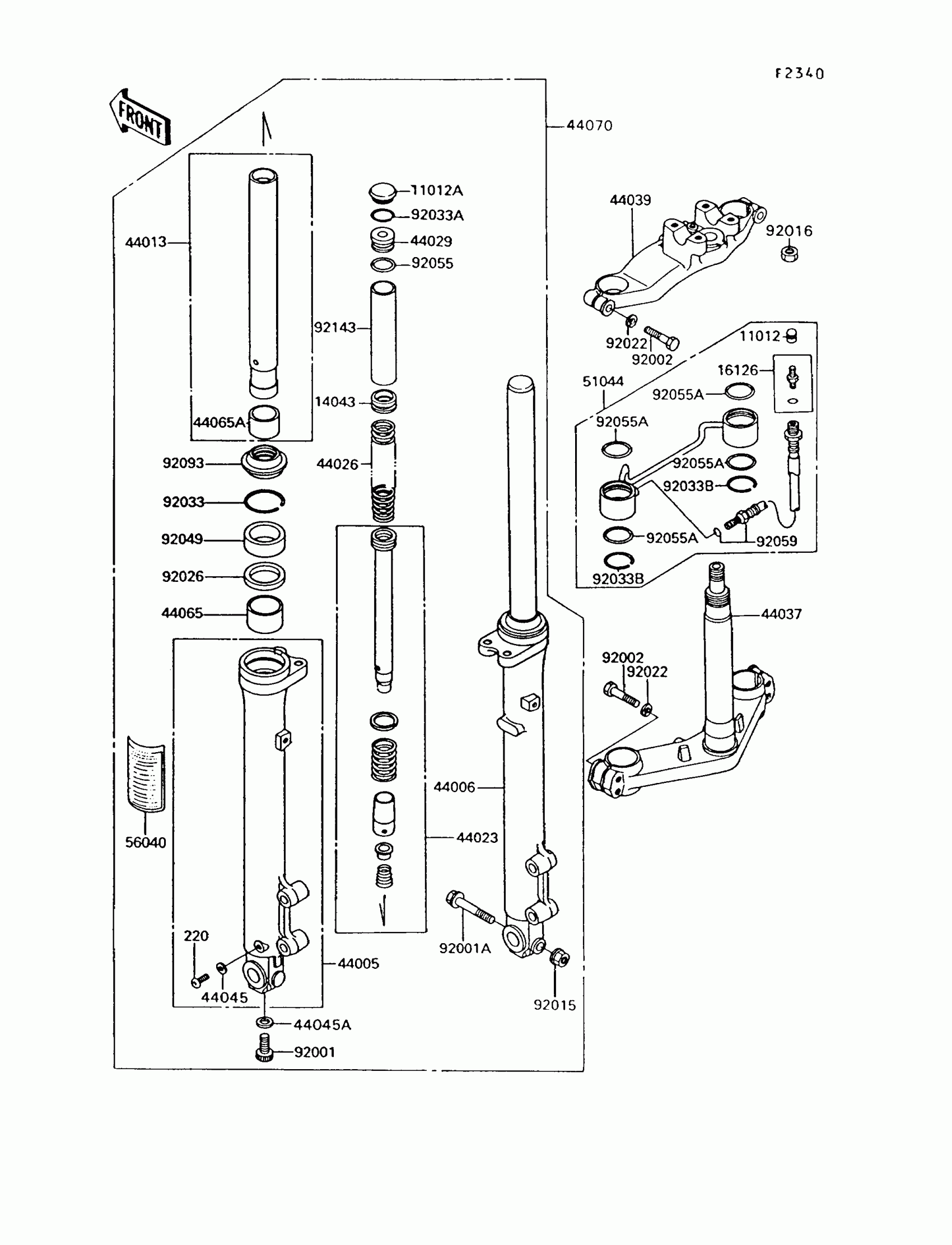

Kawasaki Voyager XII FRONT FORK Diagram

#

Description
Price

11009

GASKET,FORK DRAIN PLUG

44045-046

Unavailable

11009A

GASKET,FORK CYLINDER BOLT

44045-051

$4.64

11012

CAP,AIR VALVE

11012-1552

$5.37

11012A

CAP,FORK TOP

11012-1561

$13.39

14043

FILTER,FORK

14043-1064

$27.68

16126

VALVE,AIR

16126-1105

$40.86

44001

FORK-FRONT

44001-1612

$1,482.36

44005

PIPE-LEFT FORK OUTER

44005-1250

$468.12

44006

PIPE-RIGHT FORK OUTER

44006-1249

$582.99

44013

PIPE-FORK INNER

44013-1253

Unavailable

44023

CYLINDER-COMP-FORK

44023-1054

$98.66

44026

SPRING-FRONT FORK

44026-1338

$62.39

44029

SEAT-FORK SPRING

44029-1125

$44.89

44037

HOLDER-FORK UNDER

44037-1194

$678.45

44039

HOLDER-FORK UPPER

44039-1132

$367.90

44065

BUSHING-FRONT FORK

44065-1079

$20.25

44065A

BUSHING-FRONT FORK,INNER PIPE

44065-1080

$26.61

51044

TUBE-ASSY,FORK,AIR

51044-1082

$181.16

56040

LABEL-WARNING,AIR SUSPENSION

56040-1054

$7.51

92001

BOLT,FORK CYLINDER

92001-1464

$4.67

92001A

BOLT,FLANGED,8X50

92001-1486

$8.74

92002

BOLT

92002-1603

$7.81

92015

NUT,FLANGED,8MM

92015-1055

$3.66

92015A

NUT,14MM

92016-044

Unavailable

92022

WASHER,SPRING,8MM

92022-1703

$2.75

92026

SPACER,FORK OUTER

92026-1276

Unavailable

92033

RING-SNAP

92033-1222

$4.88

92033A

RING-SNAP,SPRING SEAT

92033-1223

$5.10

92033B

RING-SNAP,AIR TUBE

92033-1224

$5.15

92049

SEAL-OIL,FORK OUTER

92049-1272

$21.55

92055

RING-O,SPRING SEAT

92055-1363

$5.61

92055A

RING-O,FORK,AIR TUBE

92055-1364

Unavailable

92059

TUBE,FORK,AIR

92059-1745

$155.47

92093

SEAL,FORK OUTER TUBE

92093-1231

$20.76

92143

COLLAR,FORK SPRING

92143-1053

$9.49

220

SCREW PAN HEAD 4X6

220B0406

$1.25
