1986 Kawasaki Voyager Xii Cables Diagram

← All diagrams

Find the part on the Cables diagram for your 1986 Kawasaki Voyager Xii, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

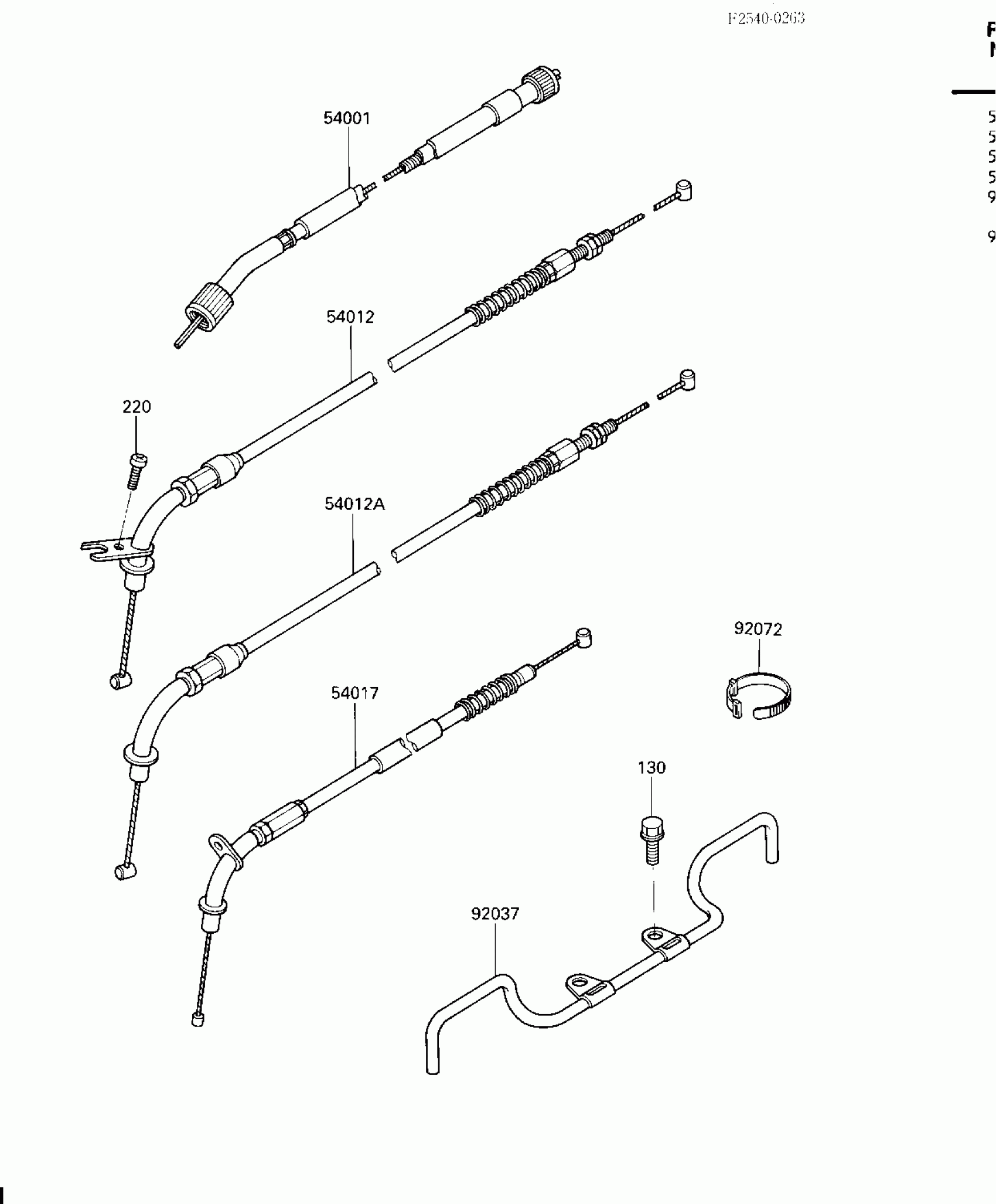

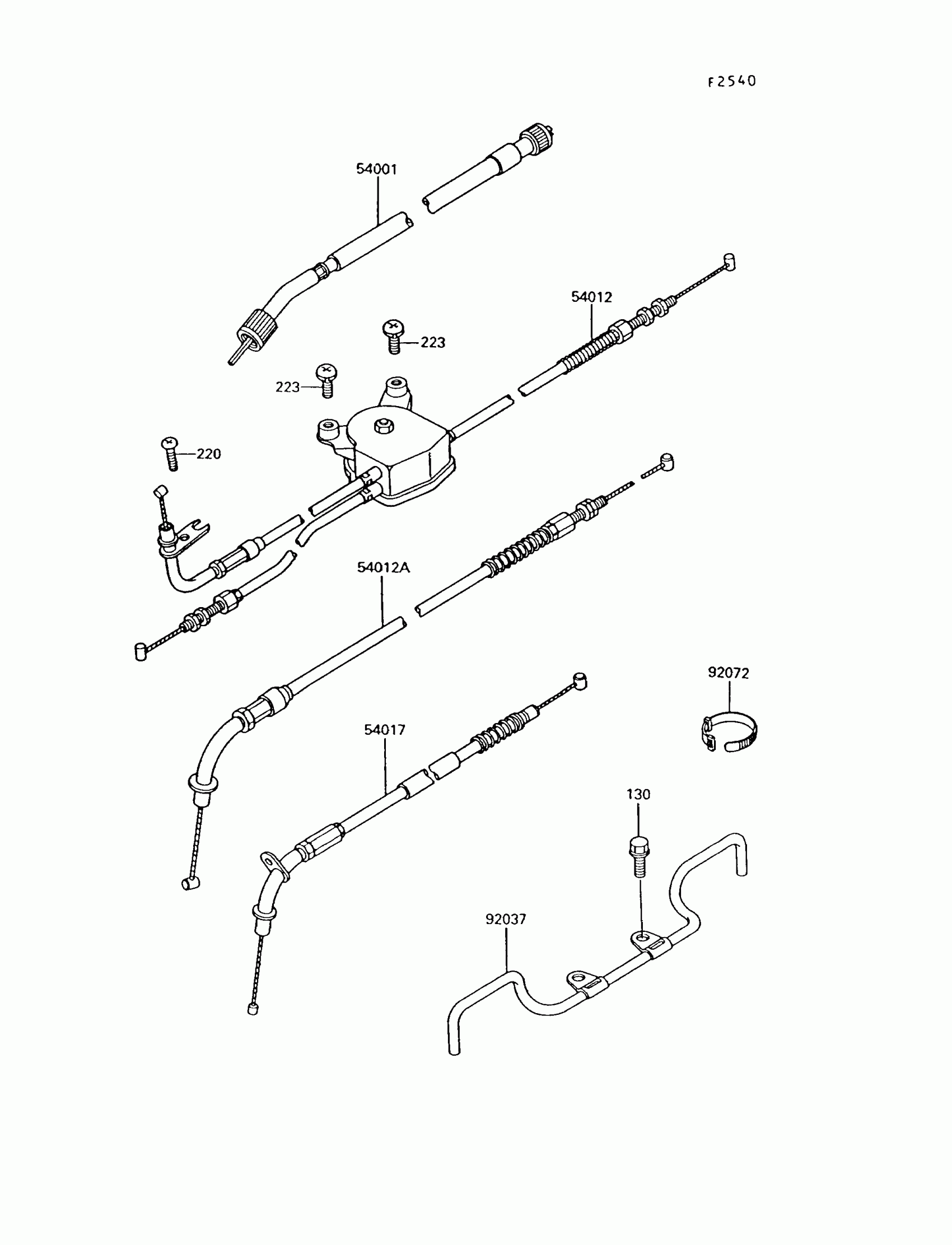

1986 Kawasaki Voyager Xii Cables Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

54001

CABLE-SPEEDOMETER

54001-1121

1
Out of stock

54012

CABLE-THROTTLE,OPENIN

54012-1285

1
Out of stock

54012A

CABLE-THROTTLE,CLOSIN

54012-1286

1
Out of stock

54017

CABLE-STARTER

54017-1095

1

$41.65

In stock

92037

CLAMP,CABLE&HOSE

92037-1832

1

$30.12

In stock

92072

BAND,L=202

92072-1195

1

$1.34

In stock

130

BOLT-FLANGED

130B0614

1
Out of stock

220

SCREW-PAN-CROS

220C0514

1

$1.54

In stock
