Description

Price

220

SCREW PAN HEAD 6X12

220B0612

Unavailable

220A

SCREW PAN HEAD 6X18

220B0618

$2.92

220B

SCREW PAN HEAD 6X25

220B0625

Unavailable

480

CIRCLIP-TYPE-C,14MM

480J1400

$3.97

600

BALL-STEEL,3/8"

600A1200

$1.32

670

O RING,5MM

670B1505

$2.49

670A

O RING,16MM

670B2016

$1.20

670B

O RING,18MM

670B2018

$1.25

670C

O RING,20MM

670D2020

$4.93

13091

HOLDER,OIL FILTER

13091-1274

$13.64

13091A

HOLDER,PUMP GEAR

13091-1333

$32.61

13107

SHAFT

13107-1191

$50.59

13169

PLATE,OIL FILTER

13169-1313

$10.25

14024

COVER,OIL FILTER

16101-004

$40.44

14043

FILTER,OIL

16111-003

$19.41

16082

PUMP-ASSY-OIL

16082-1076

$340.42

16085

GEAR,OIL PUMP,35T

16085-1153

$131.93

16126

VALVE,OIL FILTER

16126-1108

$38.20

16130

VALVE-ASSY-RELIEF

16130-1001

$41.95

16142

COVER-PUMP,LH

16142-1070

$47.09

16142A

COVER-PUMP,RH

16142-1071

$49.76

16154

ROTOR-PUMP

16154-1062

$59.74

32099

CASE,OIL FILTER

32099-1082

$136.23

49065

FILTER-OIL

49065-1055

$37.31

52010

ELEMENT-OIL FILTER

16099-003

$9.67

92001

BOLT,FLANGED,6X38

92001-1105

$3.72

92002

BOLT,6X38

92002-1431

$4.85

92002A

BOLT,6X43

92002-1881

$5.76

92009

SCREW,6X16

92009-1360

$3.43

92022

WASHER,20.5X30X1

92022-1012

$3.46

92022A

WASHER,14X20X1

92022-1495

$3.85

92043

PIN,DOWEL,6.3X8X14

92042-007

$4.51

92043A

PIN,DOWEL,5X17.8

92043-1061

$4.34

92043B

PIN,SPRING,2X20

92043-111

$5.46

92043C

PIN,18X20X12

92043-1213

$5.46

92043D

PIN,DOWEL,8X10

92043-1302

$0.97

92043E

PIN

92043-1304

$9.56

92055

RING-O,19.5MM

92055-077

$4.65

92081

SPRING,OIL FILTER

92081-1018

$3.69

92081A

SPRING

92081-109

$10.85

671

O RING,90MM

671B2590

$7.86

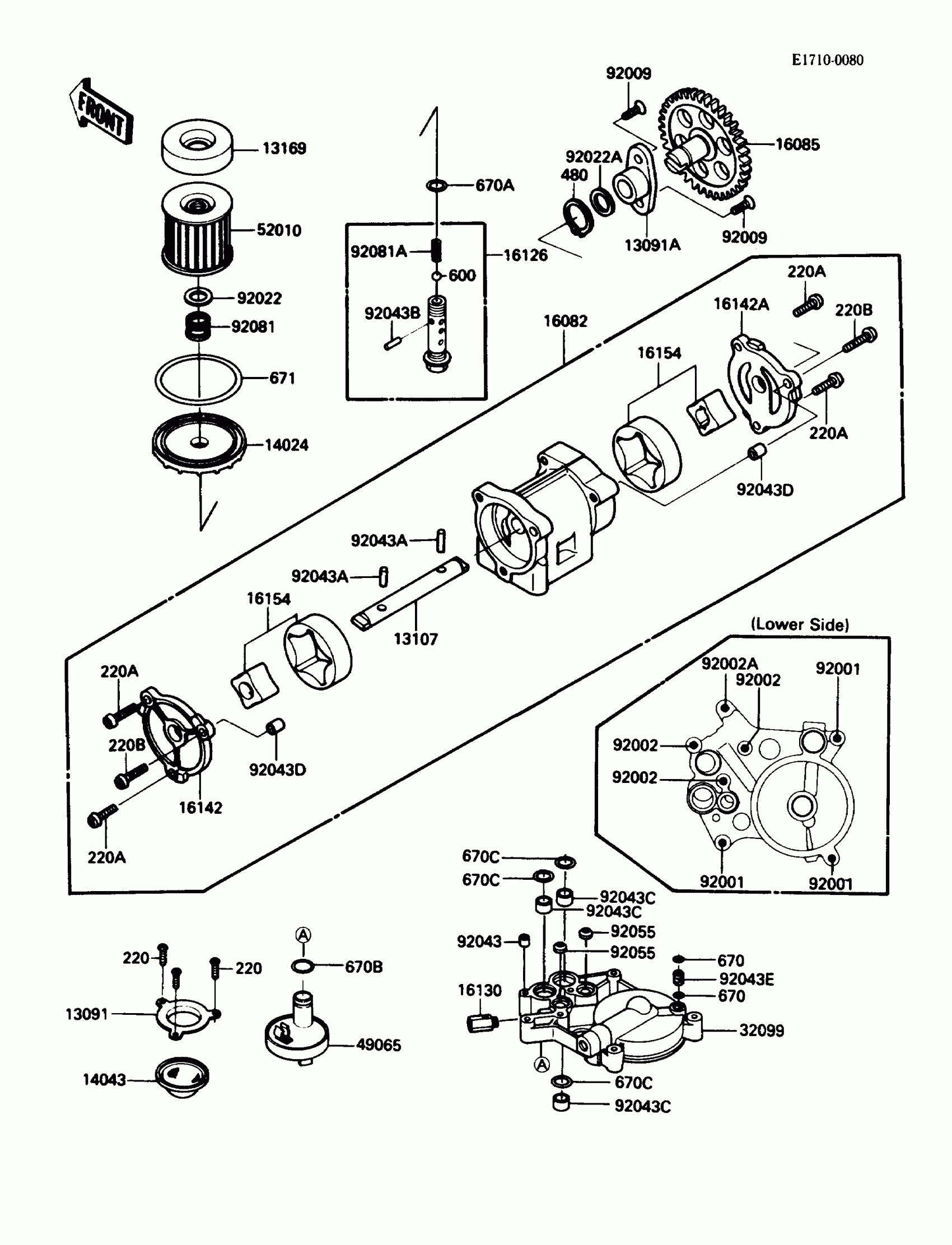

Kawasaki Voyager XII Oil Pump Diagram
