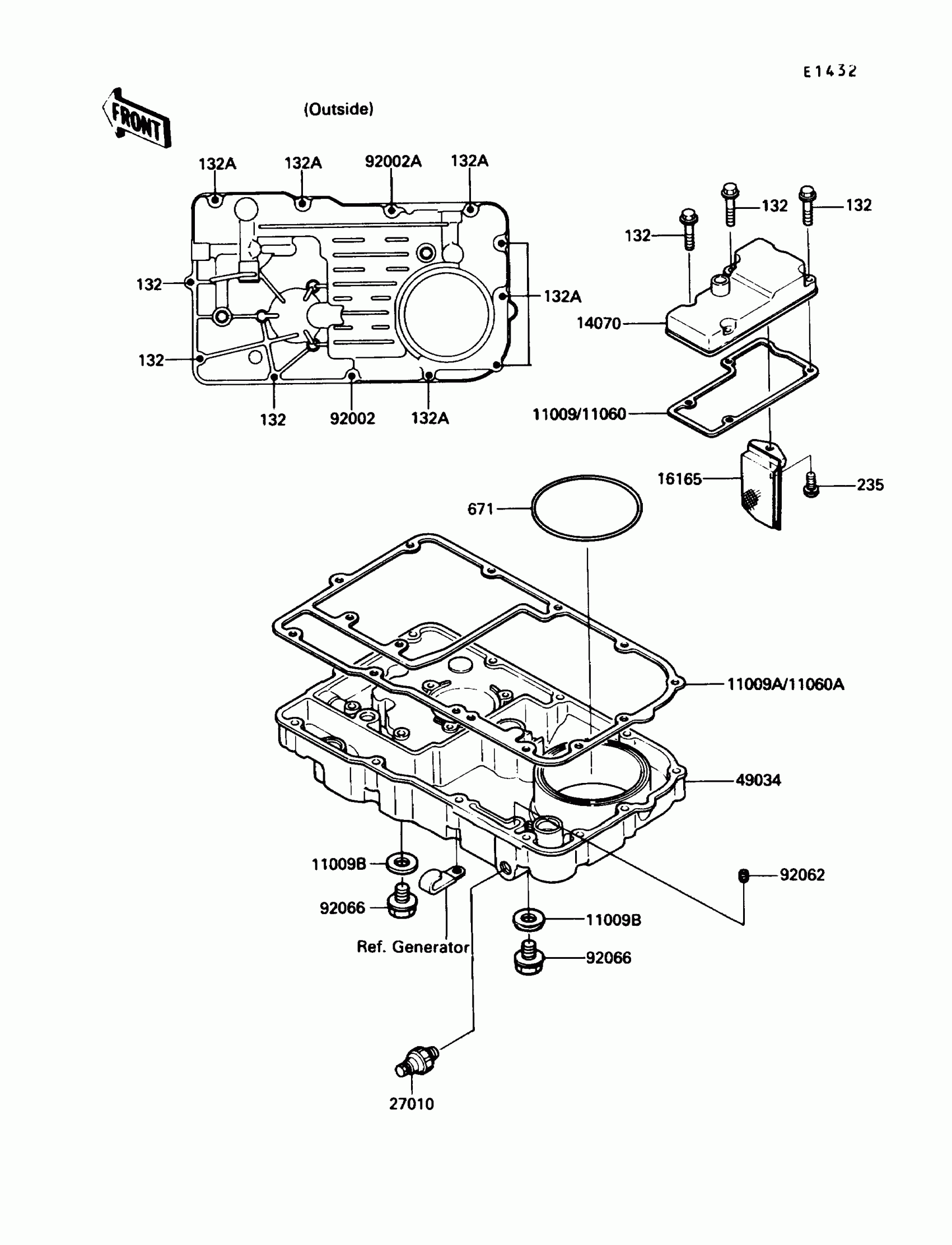

Kawasaki Voyager XII Breather Body/Oil Pan Diagram

Description

Price

132

BOLT-FLANGED-SMALL,6X25

132E0625

Unavailable

132A

BOLT-FLANGED-SMALL,6X40

132E0640

Unavailable

235

SCREW-PAN-WP-CROS,6X10

235B0610

Unavailable

671

O RING,90MM

671B2590

$7.86

11009B

GASKET,12X22X2

92065-097

$0.76

14070

BODY-BREATHER

14070-1062

$90.48

16165

SEPARATOR,BREATHER BODY

16165-1057

$10.46

27010

SWITCH,OIL PRESSURE

27010-1155

$36.57

49034

PAN-OIL

49034-1063

$271.95

92002

BOLT,6X25

92002-1612

$4.46

92002A

BOLT,6X40

92002-1657

$5.03

92062

NOZZLE,YELLOW

92062-1057

Unavailable

92066

PLUG,OIL DRAIN,12X15

92066-1174

$4.88

11060

GASKET,BREATHER BODY

11060-1100

$7.44

11060A

GASKET,OIL PAN

11060-1101

$40.61
