2003 Kawasaki Voyager Xii Engine Mount Diagram

← All diagrams

Find the part on the Engine Mount diagram for your 2003 Kawasaki Voyager Xii, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

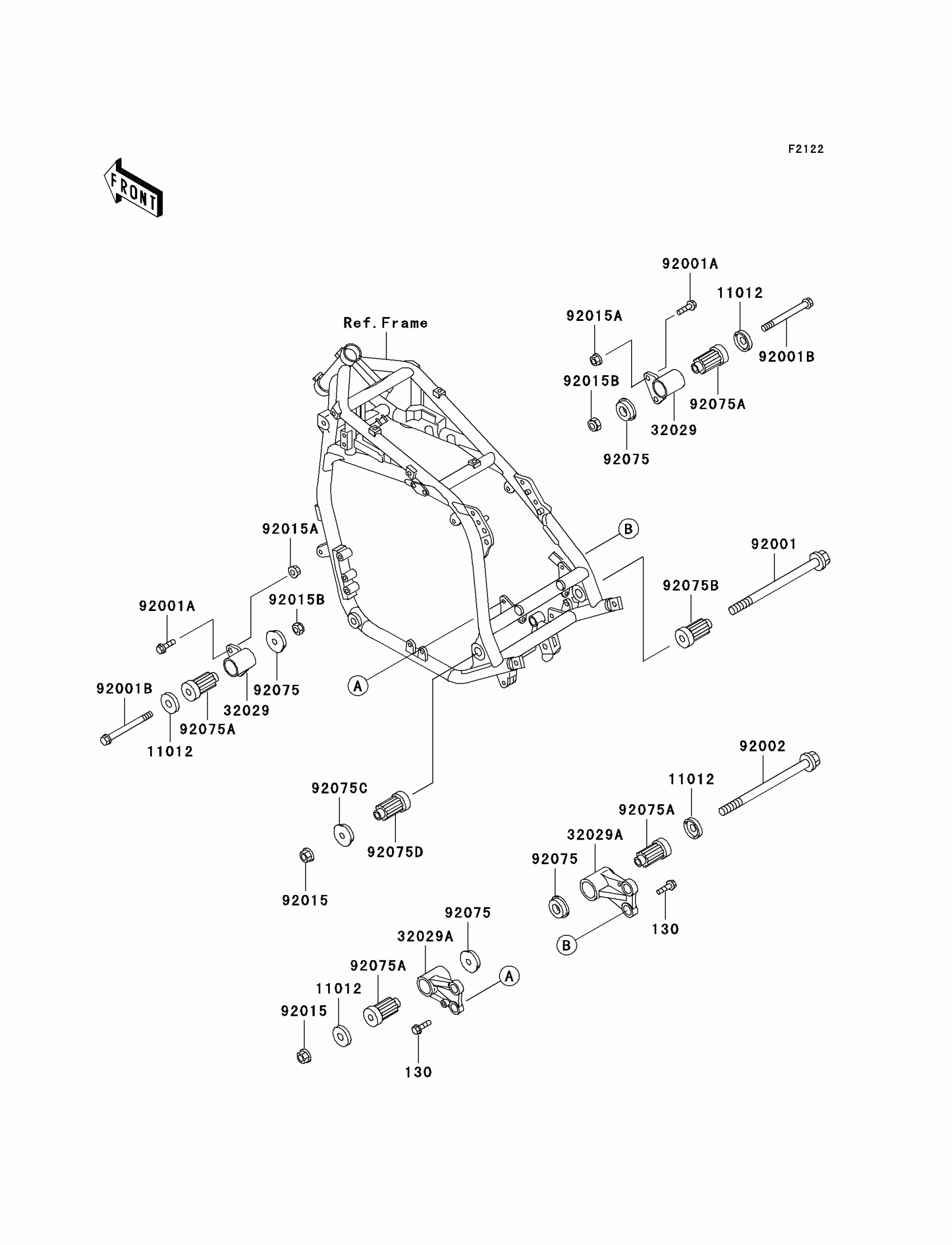

2003 Kawasaki Voyager Xii Engine Mount Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

130

BOLT-FLANGED,8X20

130J0820

1
Out of stock

11012

CAP,ENGINE BRACKET

11012-1228

1

$7.49

In stock

32029

BRACKET-ENGINE,FR

32029-1445

1

$160.09

In stock

32029A

1

$42.11

In stock

92001

1

$24.10

In stock

92001A

BOLT,FLANGED,8X45

92001-1613

1

$4.61

In stock

92001B

1

$8.44

In stock

92002

BOLT,10X300

92002-1196

1

$23.73

In stock

92015

NUT,FLANGED,10MM

92015-1180

1
Out of stock

92015A

NUT,FLANGED,8MM,BLACK

92015-1183

1
Out of stock

92015B

NUT,LOCK,10MM,BLACK

92015-1189

1
Out of stock

92075

1

$16.49

In stock

92075A

1

$31.41

In stock

92075B

DAMPER,ENGINE MOUNT

92075-1733

1

$35.80

In stock

92075C

DAMPER,ENGINE MOUNT

92075-1738

1

$21.76

In stock

92075D

1

$29.30

In stock
