1995 Kawasaki Voyager Xii Muffler Diagram

← All diagrams

Find the part on the Muffler diagram for your 1995 Kawasaki Voyager Xii, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

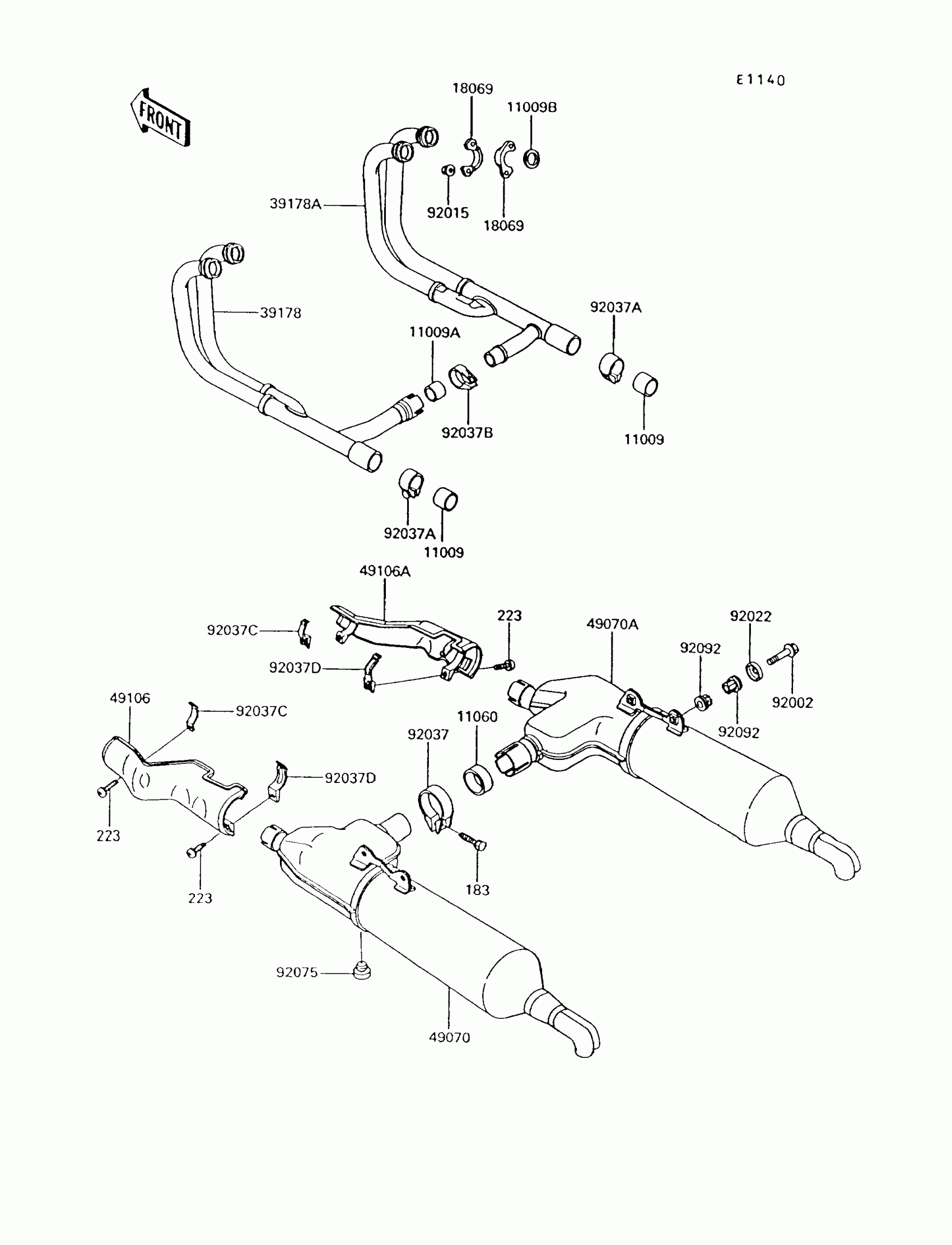

1995 Kawasaki Voyager Xii Muffler Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

183

BOLT-UPSET-WS-SMALL

183J0835

1
Out of stock

223

SCREW-PAN-WS-CROS

223X0625

1
Out of stock

11009

1

$30.00

In stock

11009A

1

$34.75

In stock

11009B

GASKET,EXHAUST PIPE

11009-1906

1

$8.76

In stock

11060

GASKET,MUFFLER

11060-1095

1

$47.93

In stock

18069

HOLDER-EXHAUST PIPE

18069-1070

1

$35.93

In stock

39178

1

$585.27

In stock

39178A

1

$585.27

In stock

49070

MUFFLER-COMP,LH

49070-1115

1

$742.54

In stock

49070A

MUFFLER-COMP,RH

49070-1116

1

$700.57

In stock

49106

COVER-MUFFLER,LH

49106-1069

1

$110.51

In stock

49106A

COVER-MUFFLER,RH

49106-1070

1

$139.81

In stock

92002

BOLT,10X55

92002-1826

1
Out of stock

92015

NUT,8MM

92015-1398

1

$3.81

In stock

92022

WASHER

92022-289

1
Out of stock

92037

CLAMP,MUFFLER

92037-1055

1

$19.81

In stock

92037A

CLAMP,POWER CHAMBER

92037-1228

1

$18.63

In stock

92037B

CLAMP,MUFFLER

92037-1258

1

$12.56

In stock

92037C

1

$11.41

In stock

92037D

1

$13.39

In stock

92075

DAMPER

92075-1045

1

$7.04

In stock

92092

1

$13.70

In stock
