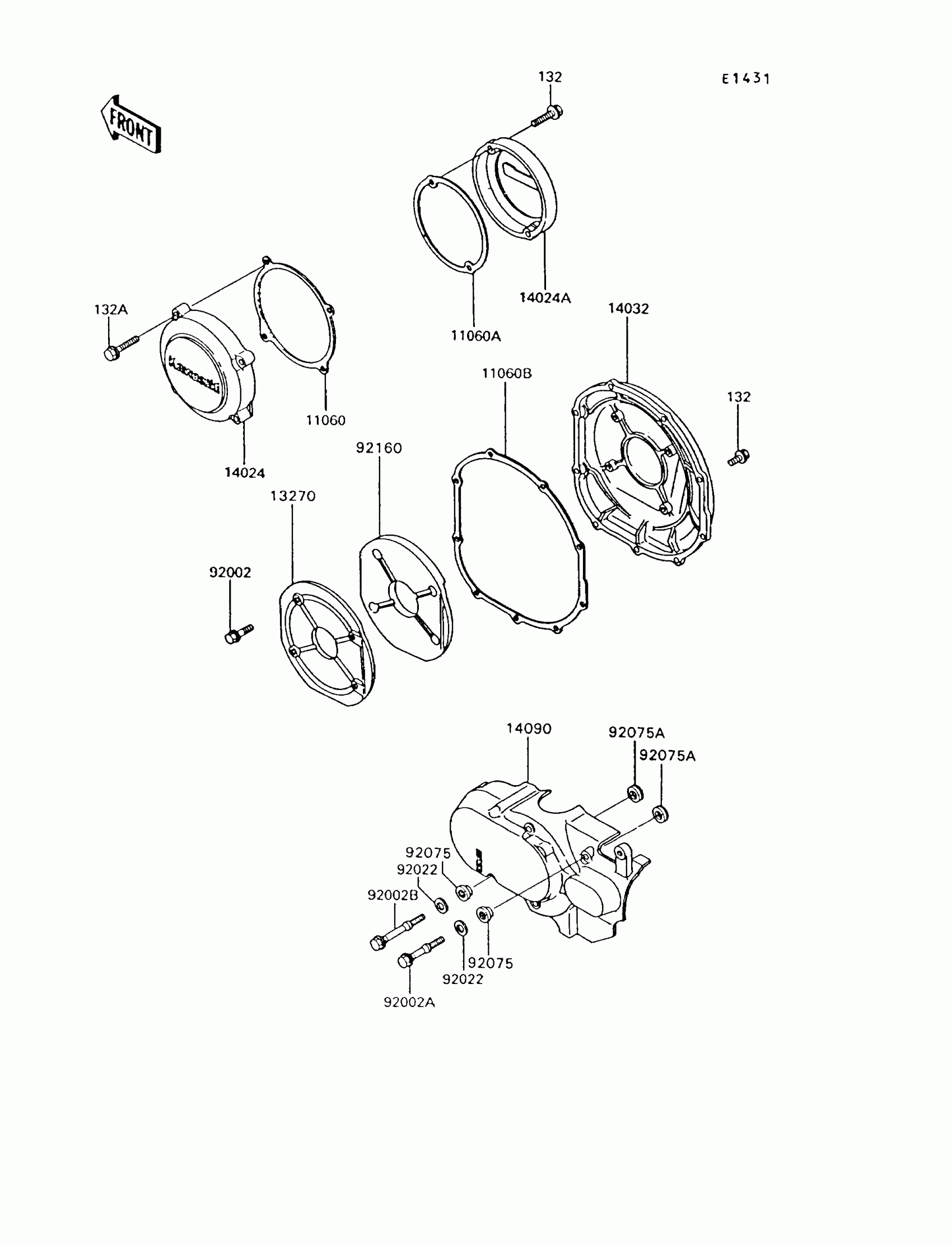

Kawasaki Voyager XII Engine Cover(s) Diagram

Description

Price

132

BOLT-FLANGED-SMALL,6X25

132E0625

Unavailable

132A

BOLT-FLANGED-SMALL,6X30

132E0630

$5.42

11060

GASKET,COVER,LH

11060-1097

$10.54

11060A

GASKET,PULSING COIL COVER

11060-1098

$8.73

11060B

GASKET,CLUTCH COVER

11060-1099

Unavailable

13270

PLATE,SOUND ARRESTER

13270-1081

$12.20

14024

COVER,LH

14024-1153

$146.08

14024A

COVER,PULSING COIL

14024-1154

$121.71

14032

COVER-CLUTCH

14032-1374

$319.26

14090

COVER,FRONT BEVEL

14090-1417

$307.60

92002

BOLT,6X10

92002-1449

$3.68

92002A

BOLT

92002-1814

$9.49

92002B

BOLT

92002-1815

$14.00

92022

WASHER

92022-1823

$7.27

92075

DAMPER

92075-1855

$7.93

92075A

DAMPER

92075-1856

$7.30

92160

DAMPER,SOUND ARRESTER

92160-1443

$128.33
