1986 Kawasaki Voyager XII Engine Covers Diagram

← All diagrams

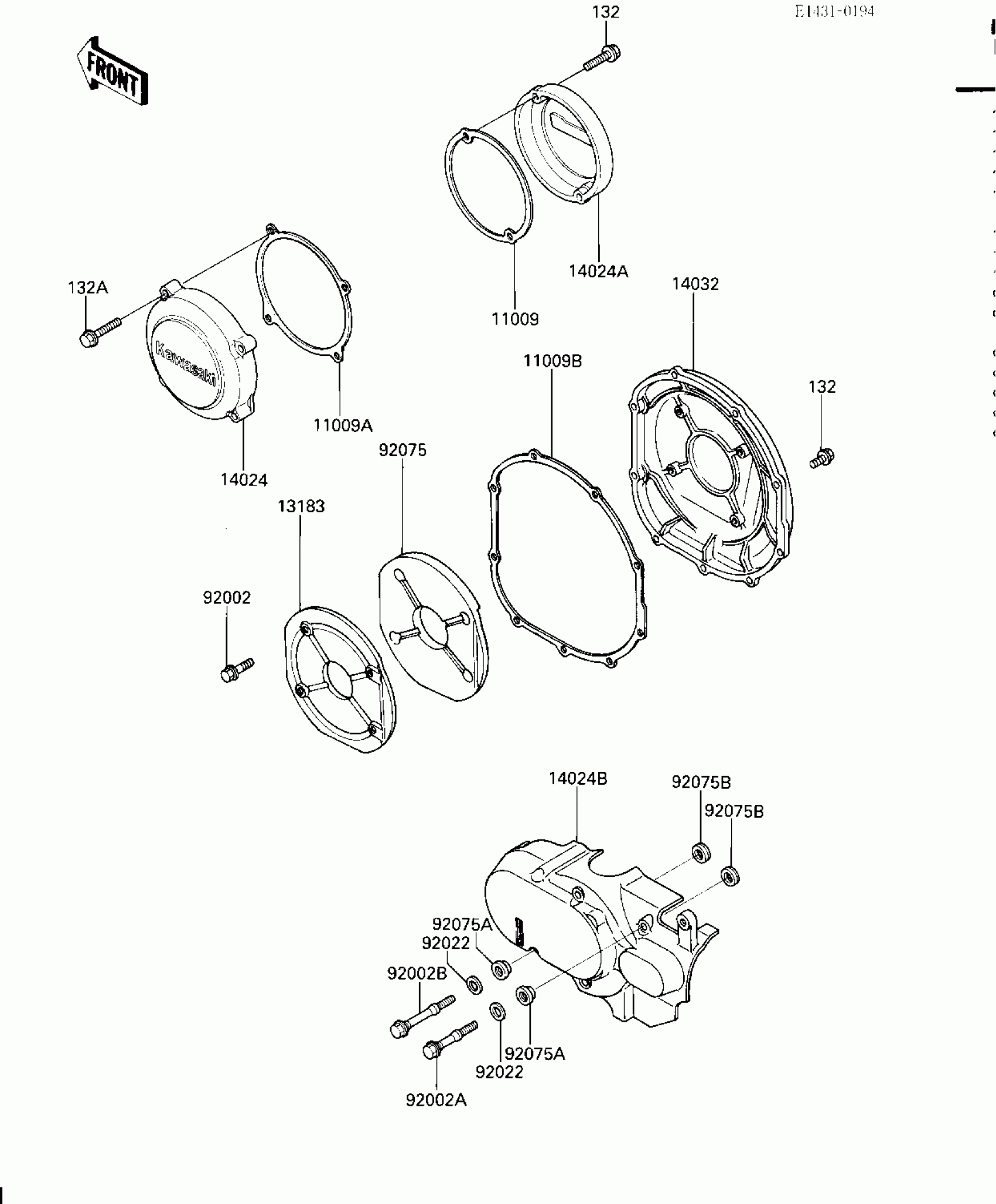

Find the part on the Engine Covers diagram for your 1986 Kawasaki Voyager XII, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1986 Kawasaki Voyager XII Engine Covers Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11009

GASKET,PULISING COIL

11060-1151

1
Out of stock

11009A

GASKET,COVER,LH

11009-1555

1
Out of stock

11009B

GASKET,CLUTCH COVER

11009-1556

1
Out of stock

13183

PLATE,SOUND ARRSETER DAMPER

13169-1986

1
Out of stock

14024

COVER,LH

14024-1153

1
Out of stock

14024A

COVER,PULSING COIL

14024-1154

1
Out of stock

14024B

COVER,FRONT BEVEL

14024-1236

1
Out of stock

14032

COVER-CLUTCH

14032-1209

1
Out of stock

92002

BOLT,6X10

92002-1449

1

$3.68

In stock

92002A

BOLT

92002-1814

1
Out of stock

92002B

BOLT

92002-1815

1
Out of stock

92022

WASHER

92022-1823

1
Out of stock

92075

1

$75.95

In stock

92075A

DAMPER

92075-1855

1

$7.93

In stock

92075B

DAMPER

92075-1856

1

$7.60

In stock

132

BOLT-FLANGED-SMALL,6X25

132E0625

1
Out of stock

132A

1

$5.42

In stock
