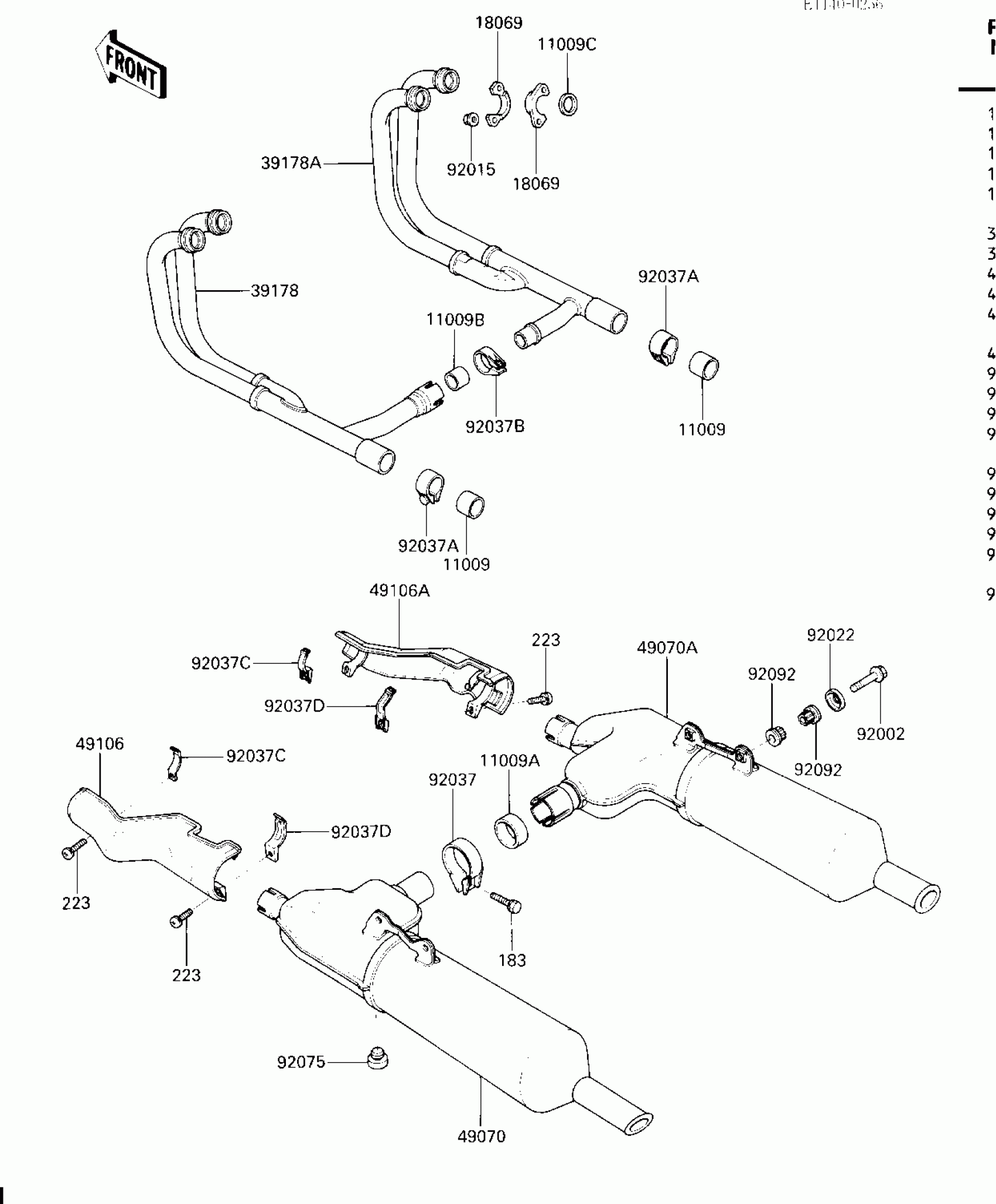

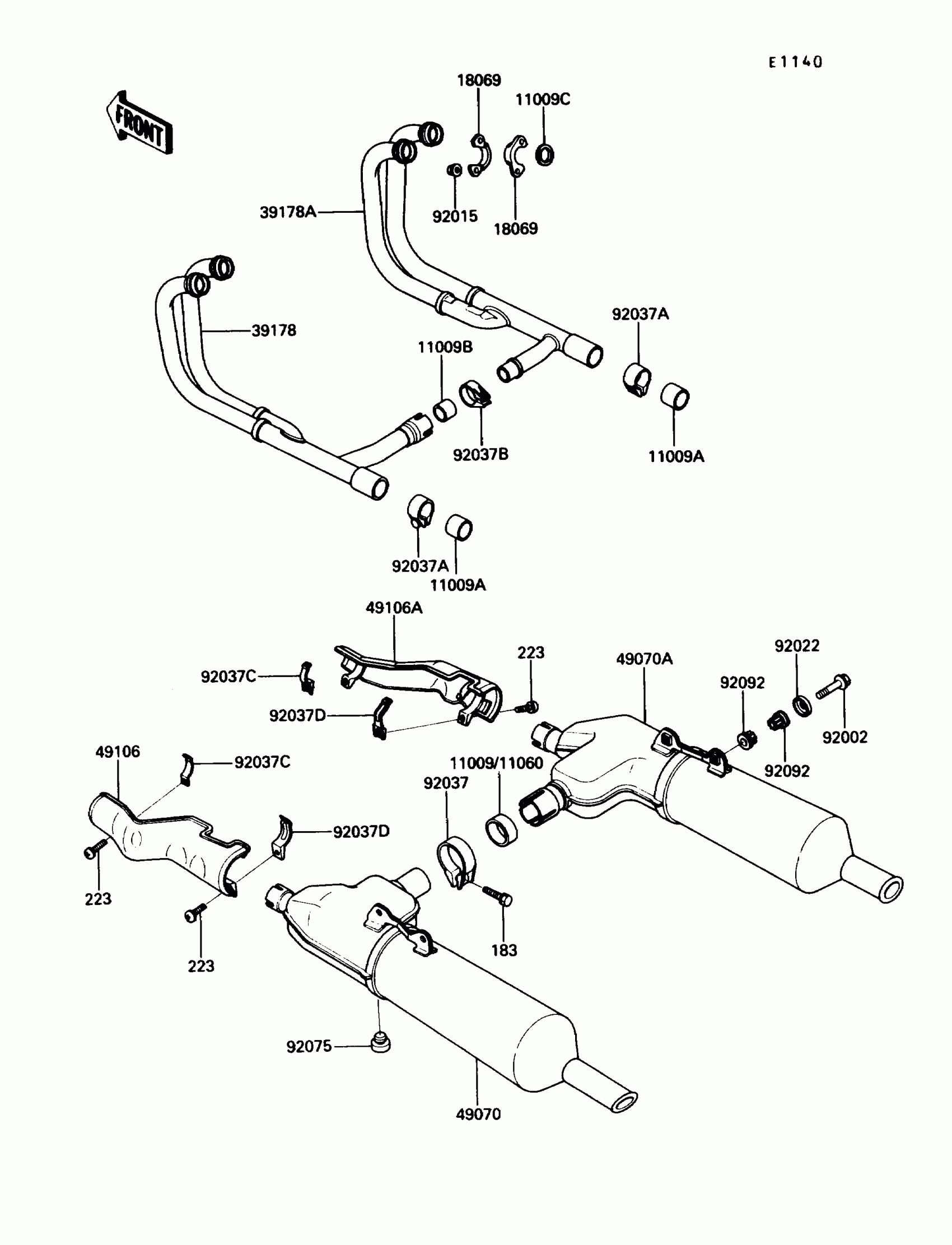

Kawasaki Voyager XII MUFFLER Diagram

#

Description
Price

11009

GASKET,EXHAUST PIPE CONNECTING

11009-1666

$28.56

11009A

GASKET,MUFFLER

11009-1629

Unavailable

11009B

GASKET,EXHAUST MANIFOLD

11009-1668

$27.88

11009C

GASKET,EXHAUST PIPE

11009-1906

$8.41

18069

HOLDER-EXHAUST PIPE

18069-1070

$35.93

39178

MANIFOLD-COMP-EXHAUST,LH

39178-1100

$585.27

39178A

MANIFOLD-COMP-EXHAUST,RH

39178-1101

$585.27

49070

MUFFLER-COMP,LH

49070-1112

$698.94

49070A

MUFFLER-COMP,RH

49070-1113

$466.78

49106

COVER-MUFFLER,LH

49106-1069

$110.51

49106A

COVER-MUFFLER,RH

49106-1070

$139.81

92002

BOLT,10X55

92002-1826

$8.71

92015

NUT,8MM

92015-1398

$3.66

92022

WASHER

92022-289

$12.40

92037

CLAMP,MUFFLER

92037-1055

$19.81

92037A

CLAMP,POWER CHAMBER

92037-1228

$18.63

92037B

CLAMP,MUFFLER

92037-1258

$12.06

92037C

CLAMP,MUFFLER COVER,FR

92037-1752

$11.41

92037D

CLAMP,MUFFLER COVER,RR

92037-1753

$13.39

92075

DAMPER

92075-1045

$6.75

92092

BUSHING-RUBBER,MUFFLER

92092-1013

$13.15

183

BOLT-UPSET-WS-SMALL

183J0835

Unavailable

223

SCREW-PAN-WS-CROS

223X0625

Unavailable
