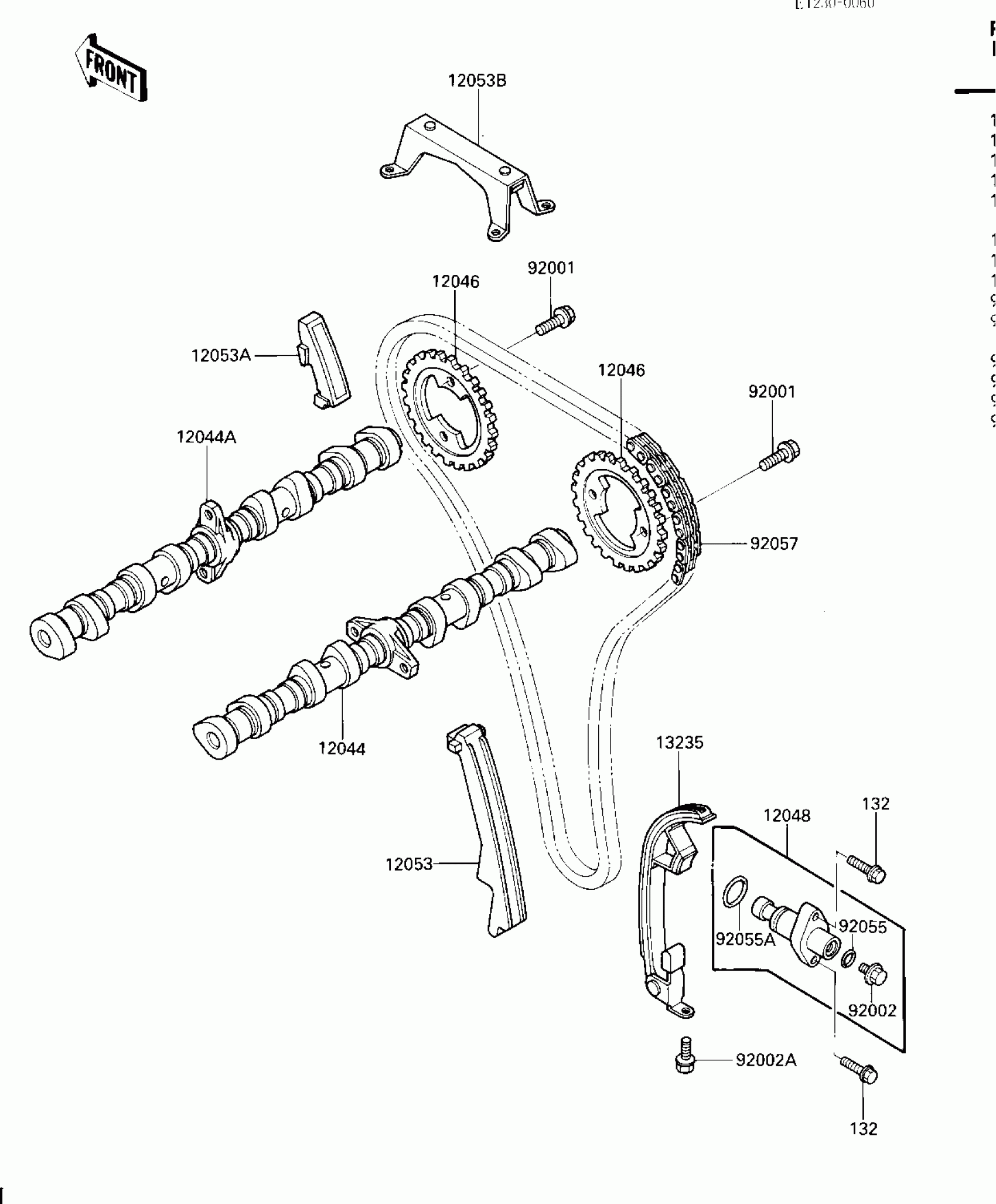

Kawasaki Voyager XII CAMSHAFTS/CHAIN/TENSIONER Diagram

Description

Price

12044

CAMSHAFT-VALVE,INTAKE

12044-1165

$572.87

12044A

CAMSHAFT-VALVE,EXHAUST

12044-1166

$572.87

12046

SPROCKET,CAMSHAFT,40T

12046-1081

Unavailable

12048

TENSIONER-ASSY

12048-1075

$145.63

12053

GUIDE-CHAIN,FR,LOW

12053-1182

$49.44

12053A

GUIDE-CHAIN,FR,UPP

12053-1183

$20.25

12053B

GUIDE-CHAIN,UPP

12053-1185

$44.14

13235

GUIDE-COMP,CHAIN,RR

13235-1058

$131.93

92001

BOLT,FLANGED,6X11

92003-208

$3.29

92002

BOLT,TENSIONER

92002-1627

$6.25

92002A

BOLT,6X14

92002-1656

$4.17

92055

O RING,10MM

670D2010

$1.41

92055A

O RING,21MM

670D2021

$5.13

92057

CHAIN,CAMSHAFT

92057-1206

$139.60

132

BOLT-FLANGED-SMALL

132G0625

Unavailable
