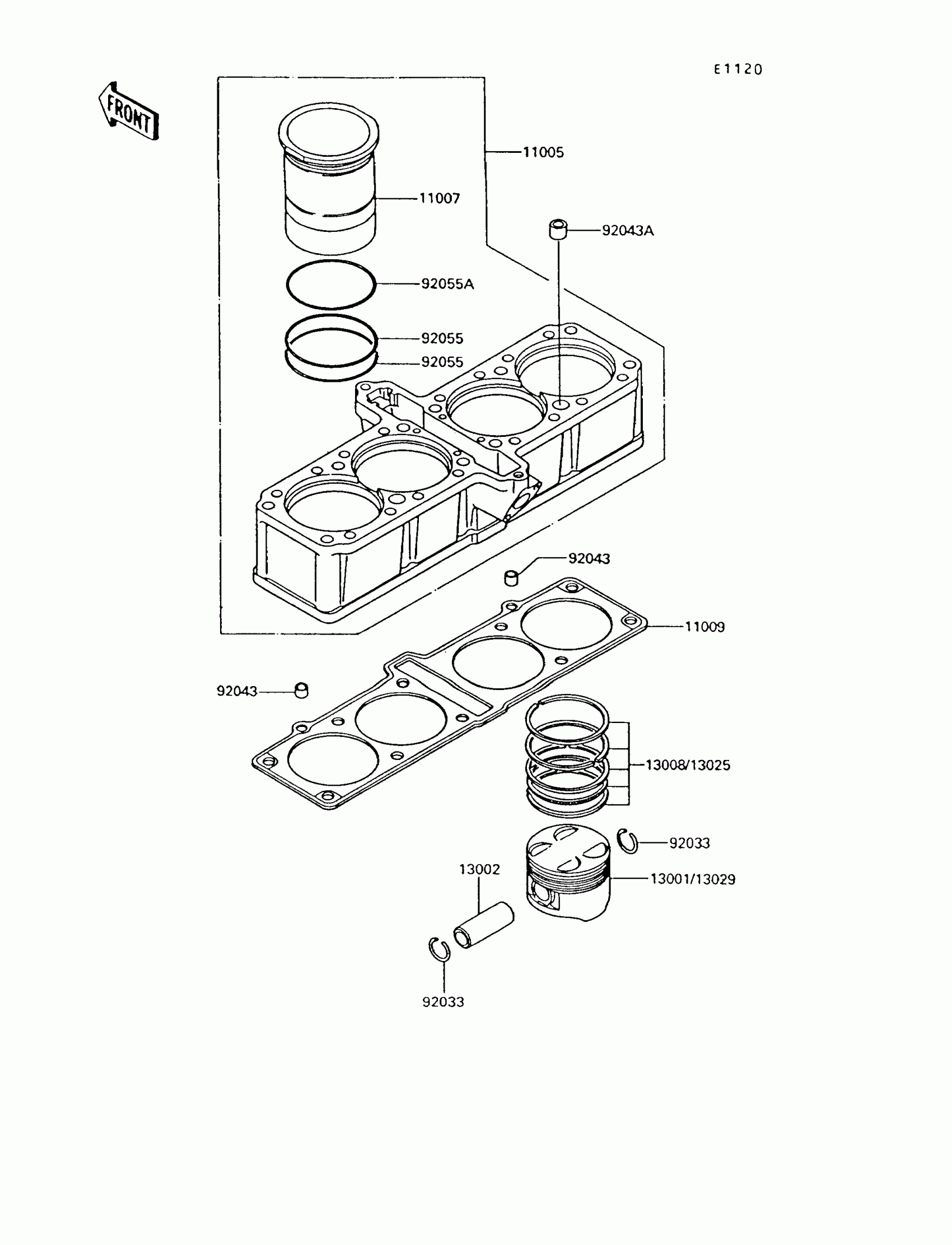

Kawasaki Voyager XII Cylinder/Piston(s) Diagram

Description

Price

11005

CYLINDER-ENGINE

11005-1537

$1,722.98

11007

LINER-CYLINDER

11007-1084

$158.46

11009

GASKET,CYLINDER BASE

11009-1554

$39.41

13001

PISTON-ENGINE,STD

13001-1222

$104.19

13002

PIN-PISTON

13002-1060

$17.96

13008

RING-SET-PISTON,STD

13008-1071

$77.27

92033

RING-SNAP

92033-1207

$1.65

92043

PIN,8.2X10X14

92043-1264

$0.51

92043A

PIN,11.5X14X14

92043-1279

$3.81

92055

RING-O,84.4X2.4

92055-1323

$5.88

92055A

RING-O,82.5X2

92055-1331

$18.44

13025

RING-SET-PISTON L,O/S 0.50

13025-1070

$90.41

13029

PISTON-ENGINE L,O/S 0.50

13029-1143

$134.72
