1986 Kawasaki Voyager Water Pump Diagram

← All diagrams

Find the part on the Water Pump diagram for your 1986 Kawasaki Voyager, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

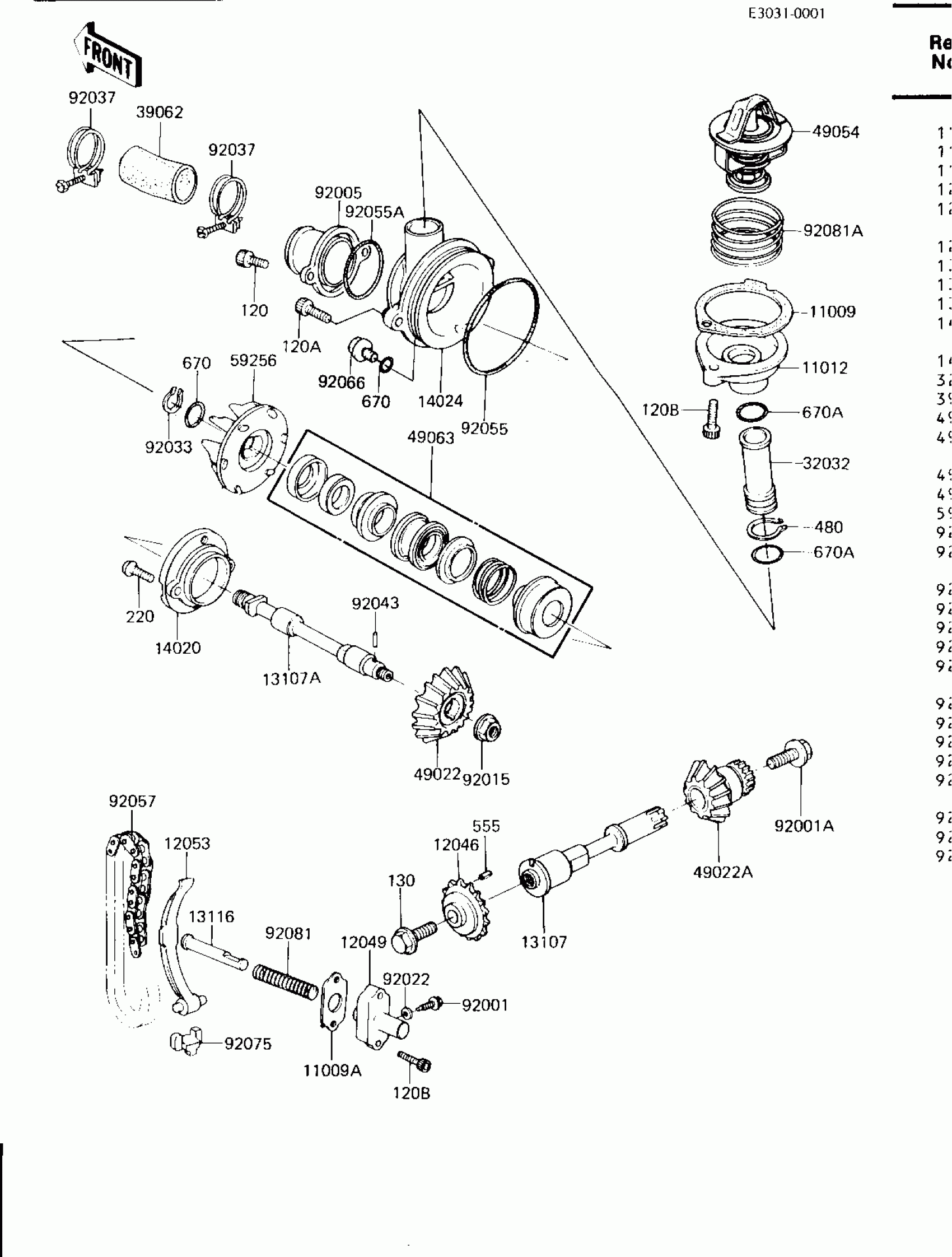

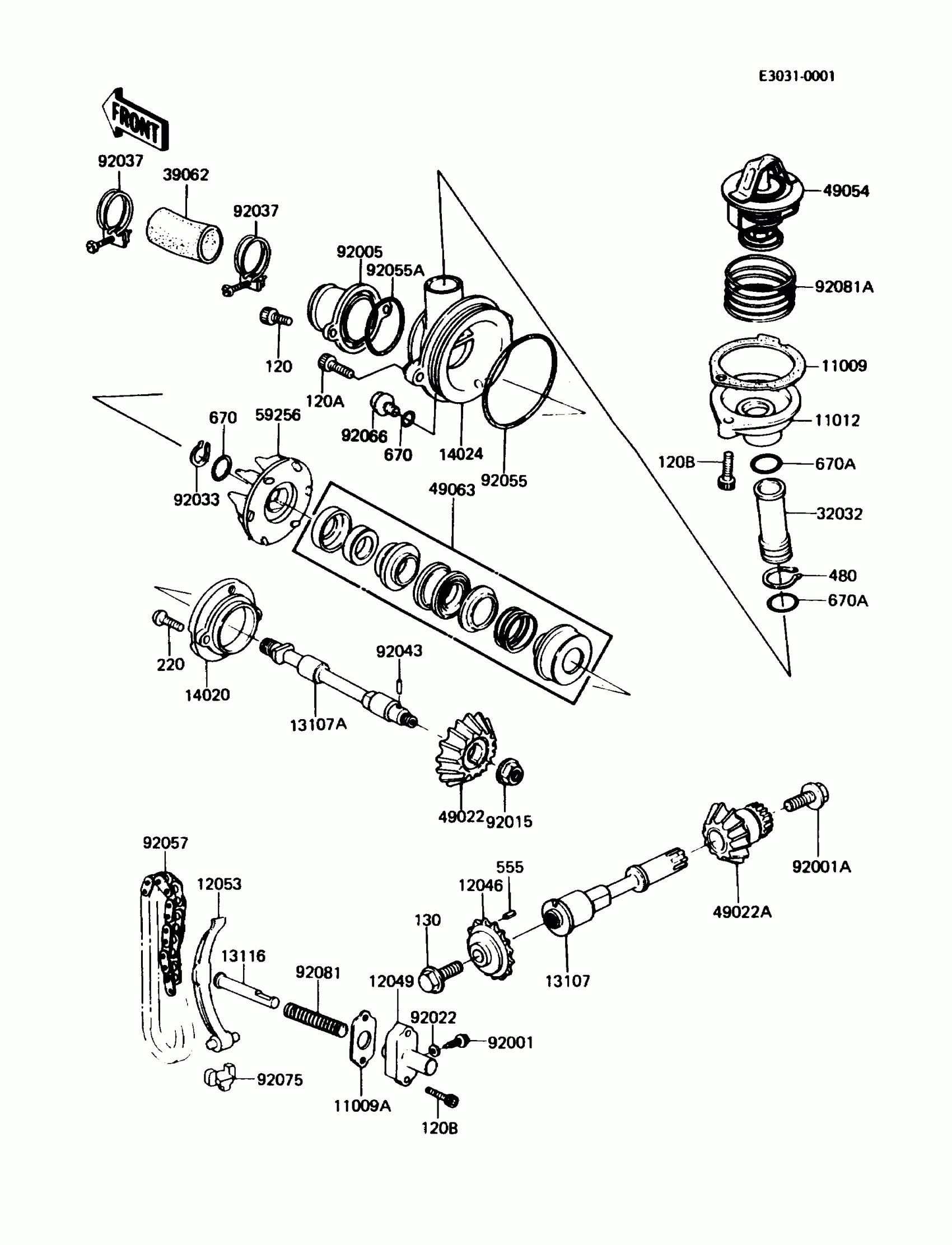

1986 Kawasaki Voyager Water Pump Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11009

GASKET,THERMOSTAT CAP

11009-1087

1
Out of stock

11009A

GASKET,TIMING CHAIN TENSIONER

11009-1099

1
Out of stock

11012

CAP,THERMOSTAT

11012-1054

1
Out of stock

12046

SPROCKET,TIMING CHAIN

12046-1015

1
Out of stock

12049

TENSIONER,TIMING CHAIN

12049-1007

1
Out of stock

12053

GUIDE-CHAIN,TIMING

12053-1027

1
Out of stock

13107

SHAFT,WATER PUMP DRIVE

13107-1009

1
Out of stock

13107A

SHAFT,WATER PUMP

13107-1011

1
Out of stock

13116

ROD-PUSH,TENSIONER

13116-1014

1
Out of stock

14020

RETAINER,MECHANICAL SEAL

14020-1004

1
Out of stock

14024

COVER,WATER PUMP

14025-1864

1
Out of stock

32032

PIPE,WATER BYPASS

32032-1184

1
Out of stock

39062

HOSE-COOLING,31X39X85

39062-1020

1
Out of stock

49022

1

$153.07

In stock

49022A

GEAR-BEVEL,WATER PUMP

49022-1015

1
Out of stock

49054

THERMOSTAT

49054-1001

1

$66.56

In stock

49063

SEAL-MECHANICAL

49063-1001

1
Out of stock

59256

IMPELLER,WATER PUMP

59256-1001

1
Out of stock

92001

1

$4.68

In stock

92001A

BOLT,FLANGED,8X17

92001-1371

1
Out of stock

92005

FITTING,SUCTION

92005-1011

1
Out of stock

92015

NUT,FLANGED,8MM

92015-1014

1
Out of stock

92022

1

$3.13

In stock

92033

RING-SNAP,11MM

92033-1024

1
Out of stock

92037

CLAMP,HOSE

92037-1177

1
Out of stock

92043

PIN,DOWEL,4X15.8

92042-014

1

$0.49

In stock

92055

RING-O,67MM

92055-1032

1
Out of stock

92055A

RING-O,OR2037

92055-1033

1
Out of stock

92057

CHAIN,TIMING,BF25HX72L

92057-1019

1
Out of stock

92066

PLUG,DRAIN,8X10

92066-1026

1

$9.85

In stock

92075

DAMPER,TIMING CHAIN GUIDE

92075-1187

1
Out of stock

92081

SPRING,TENSIONER

92081-1102

1
Out of stock

92081A

SPRING,THERMOSTAT

92081-1104

1
Out of stock

120

BOLT-SOCKET,6X16

120Z0616

1
Out of stock

120A

BOLT-SOCKET,6X20

120Z0620

1
Out of stock

120B

BOLT-SOCKET

120Z0625

1
Out of stock

130

BOLT-FLANGED,8X20

130G0820

1
Out of stock

220

SCREW-PAN-CROS

220R0516

1

$4.59

In stock

480

1

$2.12

In stock

555

PIN-SPRING,4X8

555A0408

1

$3.12

In stock

670

O RING,8MM

670B1508

1

$1.17

In stock

670A

O RING,16MM

670B2016

1

$1.20

In stock
