Description

Price

12004

VALVE-INTAKE

12004-1020

Unavailable

12005

VALVE-EXHAUST

12005-1063

Unavailable

12009

RETAINER-VALVE SPRING

12009-005

$10.37

12011

COLLET,RETAINER

12011-004

$4.34

12032

TAPPET

12032-1002

$64.28

16007

SEAT-SPRING,VALVE

16007-1024

$5.15

49078

SPRING-ENGINE VALVE,INNER

12007-011

Unavailable

49078A

SPRING-ENGINE VALVE,OUTER

12007-012

$23.51

92025

SHIM,T=2.00

12037-001

$18.02

92025A

SHIM,T=2.05

12037-002

$18.02

92025B

SHIM,T=2.10

12037-003

$18.02

92025C

SHIM,T=2.15

12037-004

$18.02

92025D

SHIM,T=2.20

12037-005

$18.02

92025E

SHIM,T=2.25

12037-006

$18.02

92025F

SHIM,T=2.30

12037-007

Unavailable

92025G

SHIM,T=2.35

12037-008

$18.02

92025H

SHIM,T=2.40

12037-009

$18.02

92025I

SHIM,T=2.45

12037-010

$18.02

92025J

SHIM,T=2.50

12037-011

$18.02

92025K

SHIM,T=2.55

12037-012

$18.02

92025L

SHIM,T=2.60

12037-013

$18.02

92025M

SHIM,T=2.65

12037-014

$18.02

92025N

SHIM,T=2.70

12037-015

$18.02

92025O

SHIM,T=2.75

12037-016

$18.02

92025P

SHIM,T=2.80

12037-017

$15.15

92025Q

SHIM,T=2.85

12037-018

$18.02

92025R

SHIM,T=2.90

12037-019

$18.02

92025S

SHIM,T=2.95

12037-020

$18.02

92025T

SHIM,T=3.00

12037-021

$15.15

92025U

SHIM,T=3.05

12037-022

$18.02

92025V

SHIM,T=3.10

12037-023

$18.02

92025W

SHIM,T=3.15

12037-024

$18.02

92025X

SHIM,T=3.20

12037-025

$18.02

92049

SEAL-OIL,RV37129.5

92049-016

$14.42

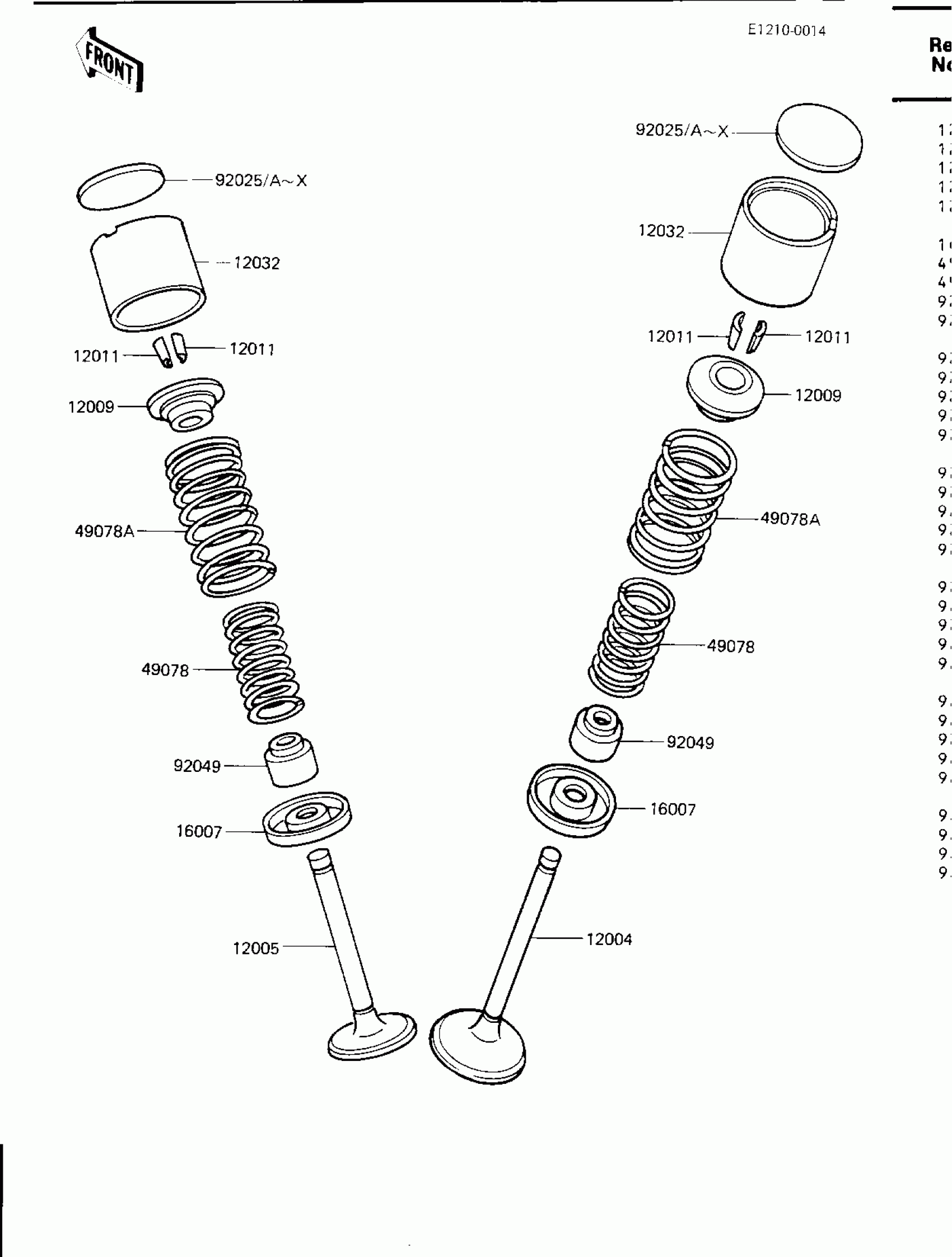

Kawasaki Voyager VALVES Diagram

VALVE-INTAKE

VALVE-EXHAUST

SPRING-ENGINE VALVE,INNER

SHIM,T=2.30
