1988 Kawasaki Voyager Throttle Diagram

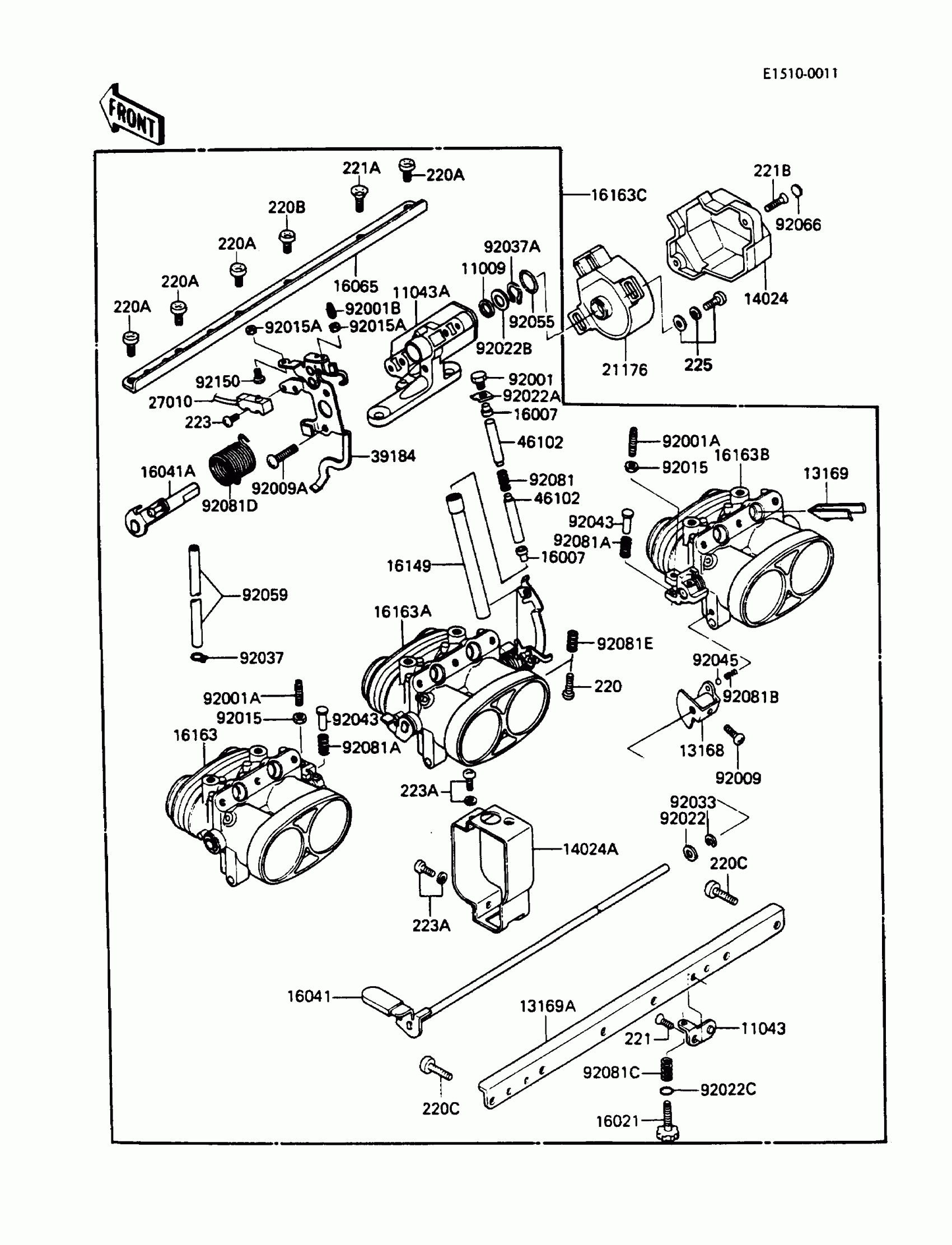

Find the part on the Throttle diagram for your 1988 Kawasaki Voyager, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.
#
11009
GASKET,8MM
16038-020
11043
BRACKET-B,IDLE ADJUST SCREW
11043-1370
11043A
BRACKET,THROTTLE SENSOR
11043-1494
13168
LEVER,FAST IDLE
13168-1210
13169
PLATE
13169-1744
13169A
PLATE,THROTTLE STAY,LWR
13169-1745
14024
COVER,SENSOR
14025-1657
14024A
COVER,TUBE
14025-1798
16007
SEAT-SPRING
16057-002
21176
SENSOR,THROTTLE
21176-1004
92001A
BOLT,ADJUSTING
92001-1447
92009
SCREW,PAN HEAD,5X7
16046-007
92009A
SCREW,5X12
92009-1318
92015
NUT,THROTTLE VALVE ADJUSTING
92015-1119
92022
WASHER,PLAIN,NYLON
16039-019
92022A
WASHER,LOCK
16054-003
92033
RING-SNAP,E-TYPE
92033-1066
92045
BALL-STEEL,1/8"
92045-1044
92055
RING-O,THROTTLE SENSOR
92055-1226
92081
SPRING
16040-026
92081B
SPRING,SHAFT STOP
92081-1260
220
SCREW-PAN-CROS,4X18
220B0418
220A
SCREW PAN HEAD 6X10
220B0610
220B
SCREW-PAN-CROS,6X16
220B0616
223A
SCREW-PAN-WS-CROS
223B0508
225
SCREW-PAN-WSP-CROS
225B0510
