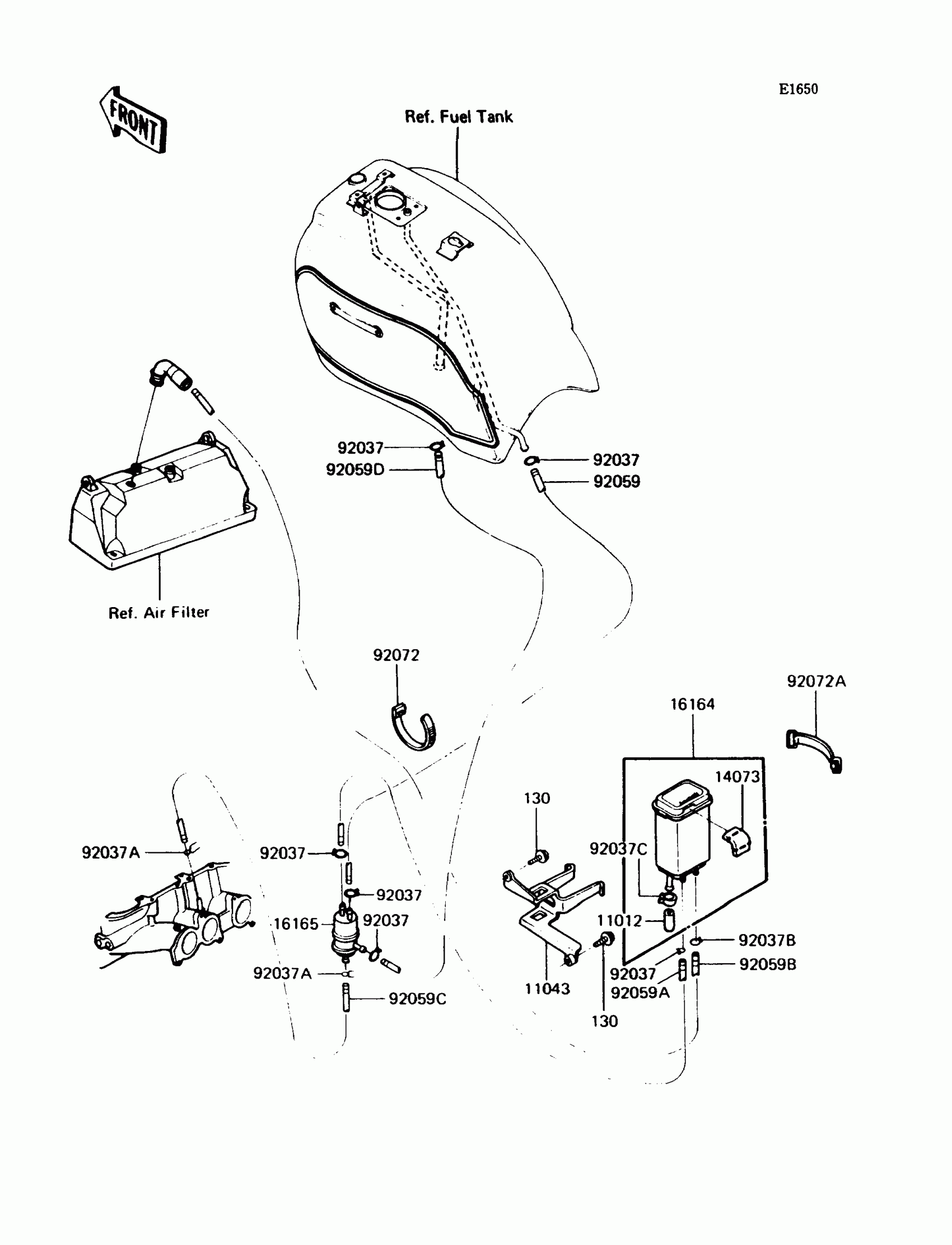

Kawasaki Voyager Fuel Evaporative System Diagram

Description

Price

11012

CAP,CANISTER

11012-1388

$8.31

11043

BRACKET,CANISTER

11043-1621

Unavailable

14073

DUCT,CANISTER

14073-1178

$21.14

16164

CANISTER

16164-1053

$101.98

16165

SEPARATOR

16165-1001

$79.83

92037

CLAMP,TUBE

92037-010

$2.99

92037A

CLAMP,TUBE

92037-072

$5.51

92037B

CLAMP-HOSE

92037-1104

$1.09

92037C

CLAMP,CANISTER

92037-1512

$5.71

92059

TUBE,5X8X320,BLUE

92059-1400

Unavailable

92059A

TUBE,5X8X980,BLUE

92059-1420

Unavailable

92059B

TUBE,7X12X1060,GREEN

92059-1421

$41.92

92059C

TUBE,4X9X640,WHITE

92059-1422

$14.40

92059D

TUBE,5X8X430,RED

92059-1423

Unavailable

92072

BAND,L=149

92072-031

$3.81

92072A

BAND,L=64

92072-1006

$12.78

130

BOLT-FLANGED,6X16,BLACK

130J0616

Unavailable
