1986 Kawasaki Voyager Fuel Tank Diagram

← All diagrams

Find the part on the Fuel Tank diagram for your 1986 Kawasaki Voyager, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

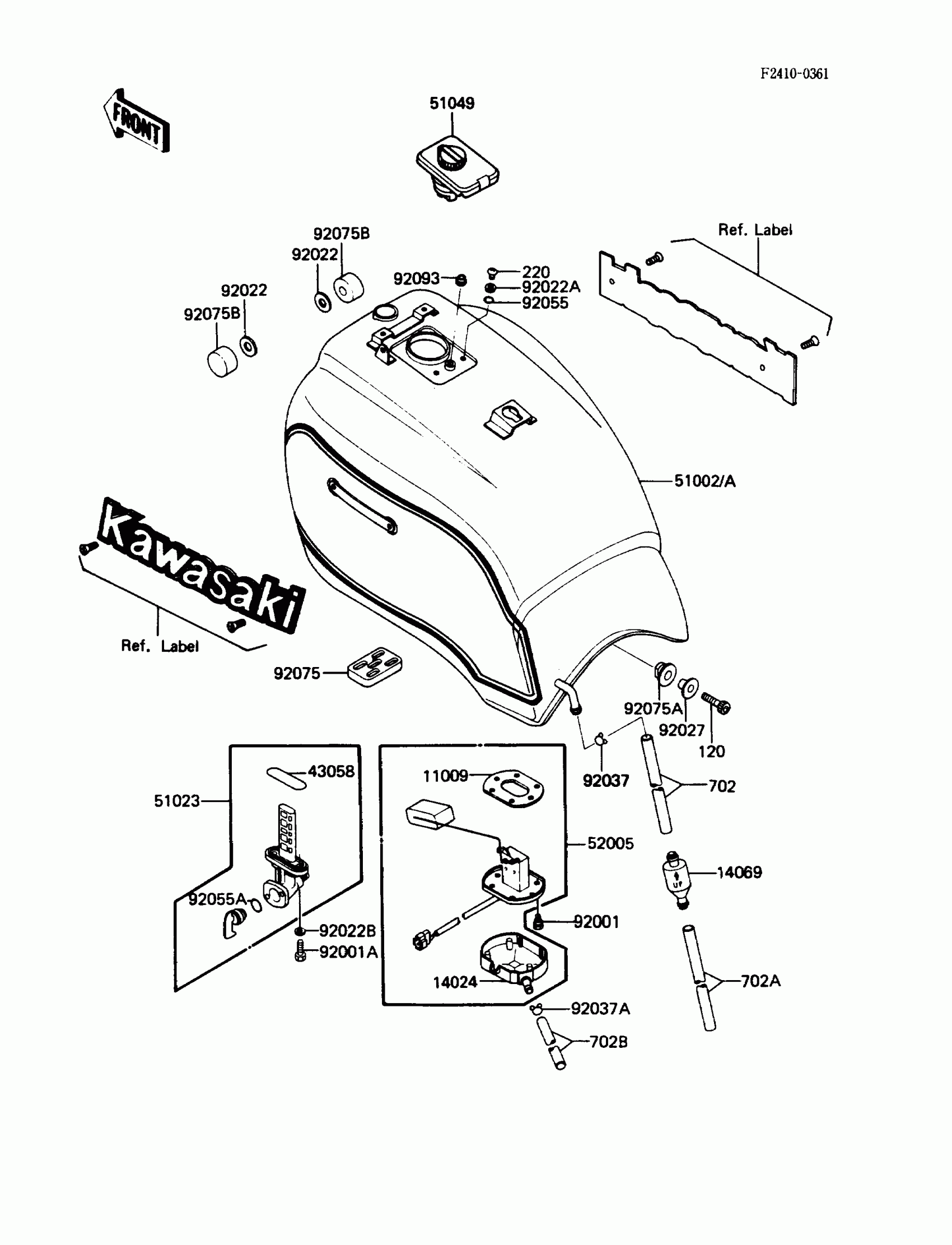

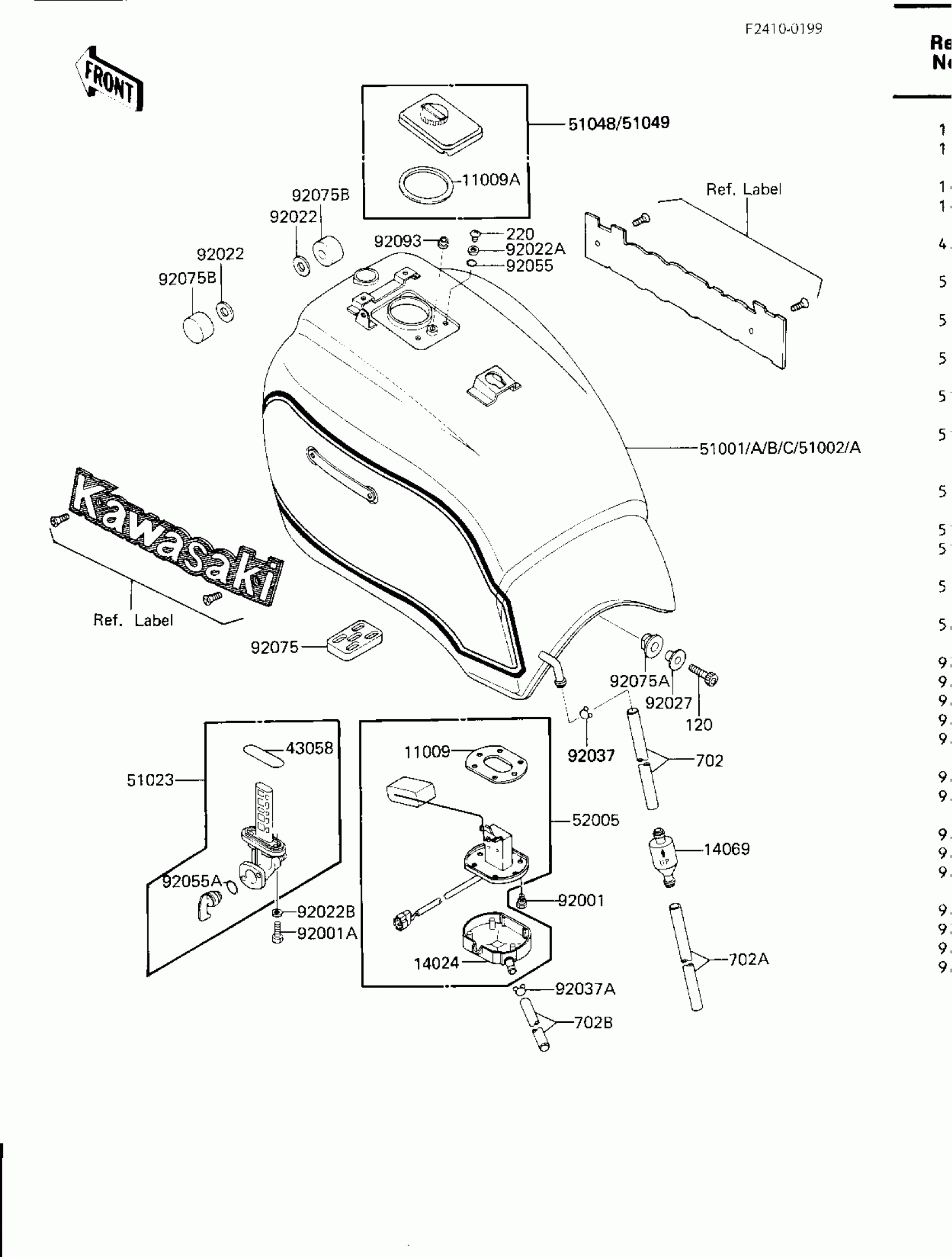

1986 Kawasaki Voyager Fuel Tank Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11009

GASKET,FUEL GAUGE

11009-1037

1
Out of stock

1100

1

$8.69

In stock

14024

COVER,FUEL GAUGE

14024-1434

1
Out of stock

14069

BREATHER,FUEL TANK

14069-1004

1

$8.09

In stock

43058

RING,TAP FLANGED

51039-010

1

$6.01

In stock

51002

TANK-COMP-FUEL,RED/GRAYSTONE

51002-5160-T1

1
Out of stock

51002A

1

$492.20

In stock

51023

TAP-ASSY

51023-1054

1
Out of stock

51048

CAP-ASSY-TANK

51048-1022

1
Out of stock

51049

CAP-TANK,FUEL

51049-1059

1
Out of stock

52005

GAUGE,FUEL

52005-1053

1
Out of stock

92001

BOLT,FUEL GAUGE

92001-1069

1

$5.76

In stock

92001A

BOLT,6X20

92001-1091

1

$3.12

In stock

92022

WASHER,10.5X26X2.3

92022-044

1

$3.12

In stock

92022A

WASHER,5.3X10X0.8

92022-1038

1

$2.92

In stock

92022B

WASHER-PLAIN

92022-183

1
Out of stock

92027

1

$8.16

In stock

92037

CLAMP,TUBE

92037-010

1

$3.12

In stock

92037A

CLAMP,TUBE

92037-147

1

$5.84

In stock

92055

RING-O

92055-1023

1

$3.12

In stock

92055A

RING-O

92055-1036

1
Out of stock

92075

DAMPER,FUEL TANK,RR

92075-1114

1

$13.22

In stock

92075A

DAMPER,FUEL TANK

92075-1116

1
Out of stock

92075B

DAMPER,FUEL TANK

92075-125

1

$4.93

In stock

92093

SEAL,FUEL TANK CAP

92093-1030

1

$6.18

In stock

120

BOLT-SOCKET,8X30

120P0830

1
Out of stock

220

SCREW PAN HEAD 5X10

220B0510

1
Out of stock

702

1

$10.53

In stock

702A

1

$10.53

In stock

702B

1

$10.53

In stock
