1988 Kawasaki Voyager Fuel Injection Diagram

← All diagrams

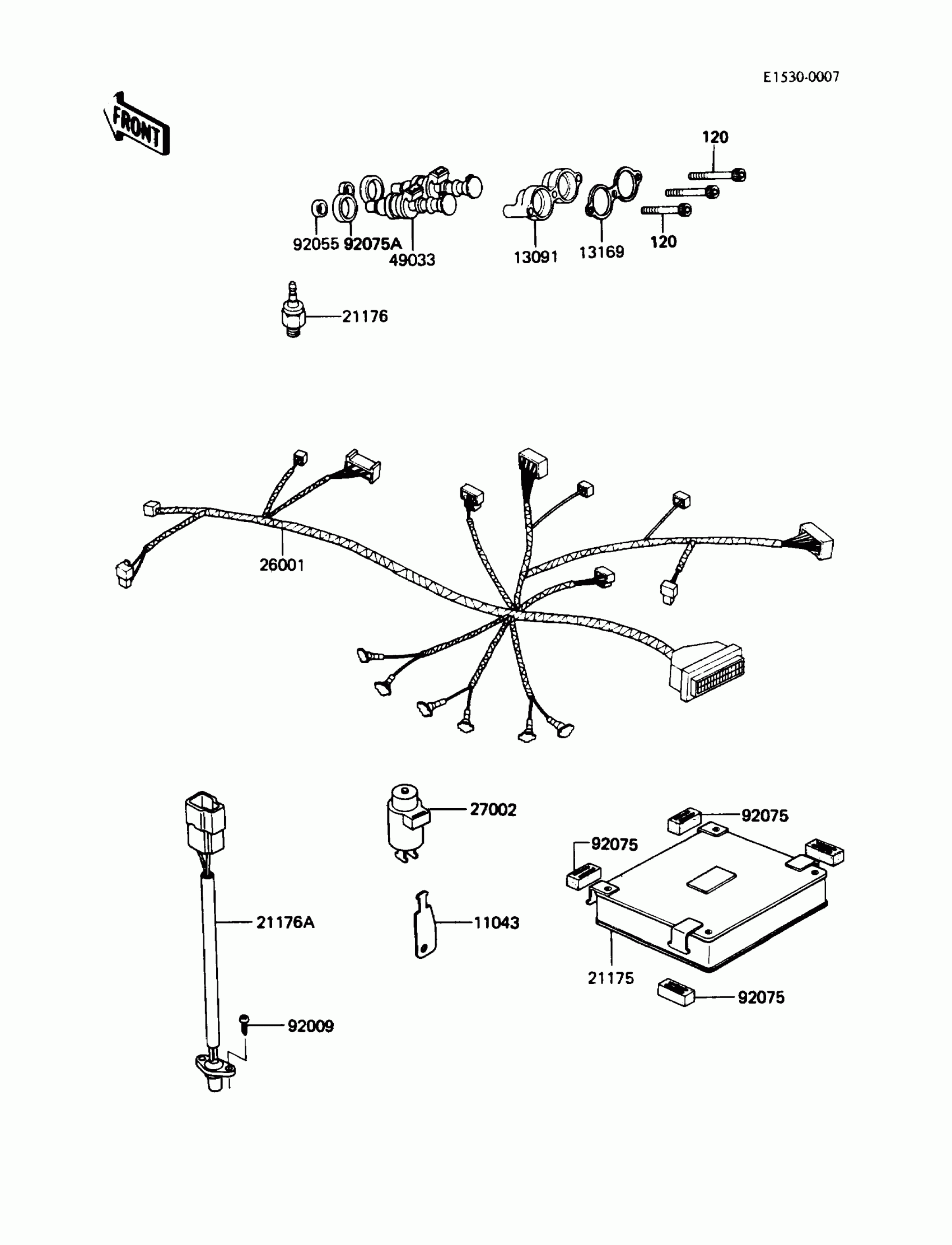

Find the part on the Fuel Injection diagram for your 1988 Kawasaki Voyager, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1988 Kawasaki Voyager Fuel Injection Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11043

BRACKET-B,DFI PUMP RELAY

11043-1318

1
Out of stock

13091

HOLDER,INJECTION NOZZLE

13091-1184

1
Out of stock

13169

PLATE,INJECTION NOZZLE

13169-1605

1
Out of stock

21175

CONTROL UNIT-ELECTRONIC,FUEL

21175-1008

1
Out of stock

21176

SENSOR-TEMPERATURE

21176-1002

1
Out of stock

21176A

1

$92.53

In stock

26001

HARNESS,D.F.I

26001-1567

1

$375.75

In stock

27002

RELAY-ASSY

27002-1051

1

$49.55

In stock

49033

NOZZLE-INJECTION

49033-1002

1
Out of stock

92009

SCREW,TAPPING,3X12

92009-1028

1
Out of stock

92055

RING-O,FUEL INJECT

92055-1082

1
Out of stock

92075

1

$14.93

In stock

92075A

DAMPER,FUEL INJECT

92075-1617

1
Out of stock

120

BOLT-SOCKET

120S0540

1
Out of stock
