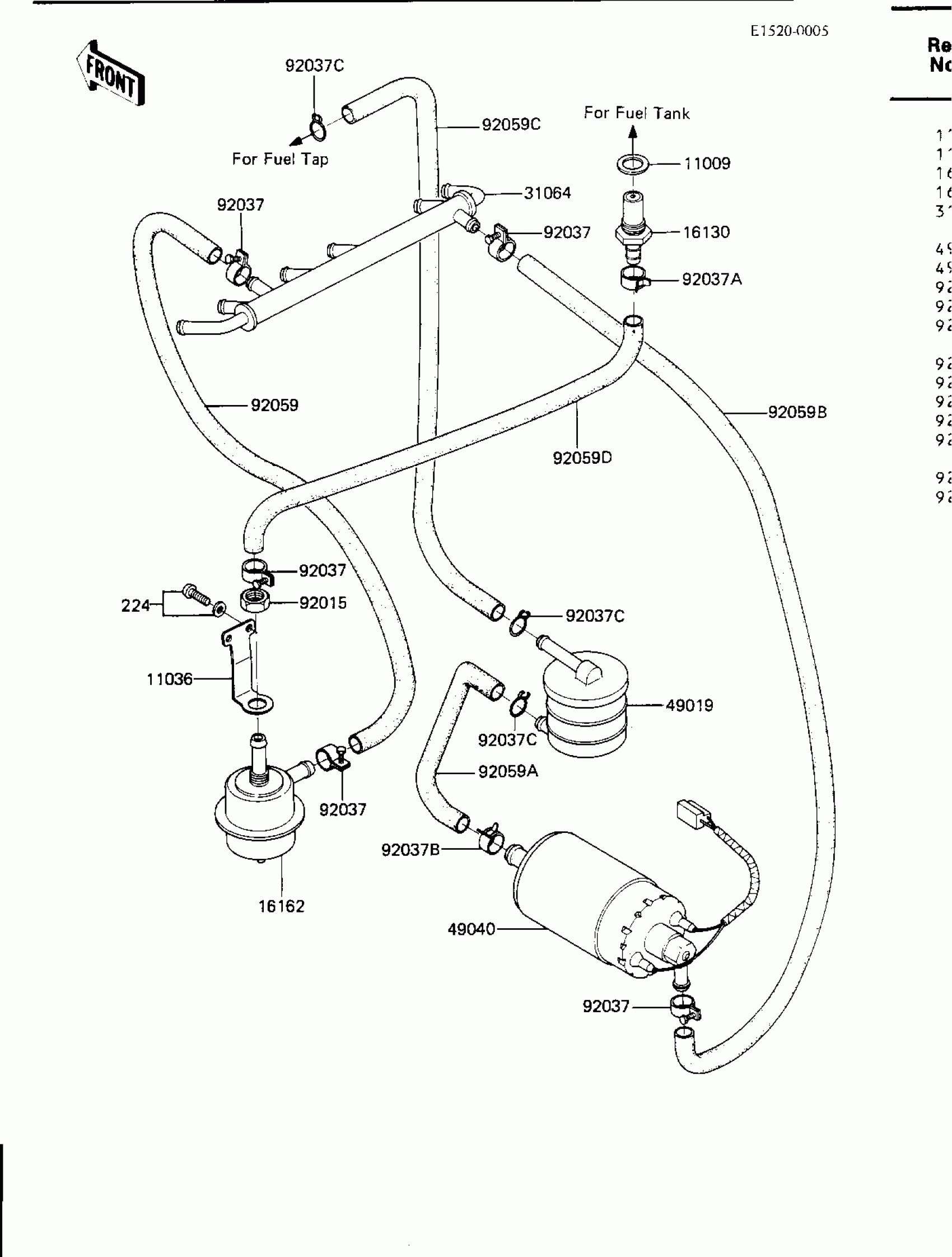

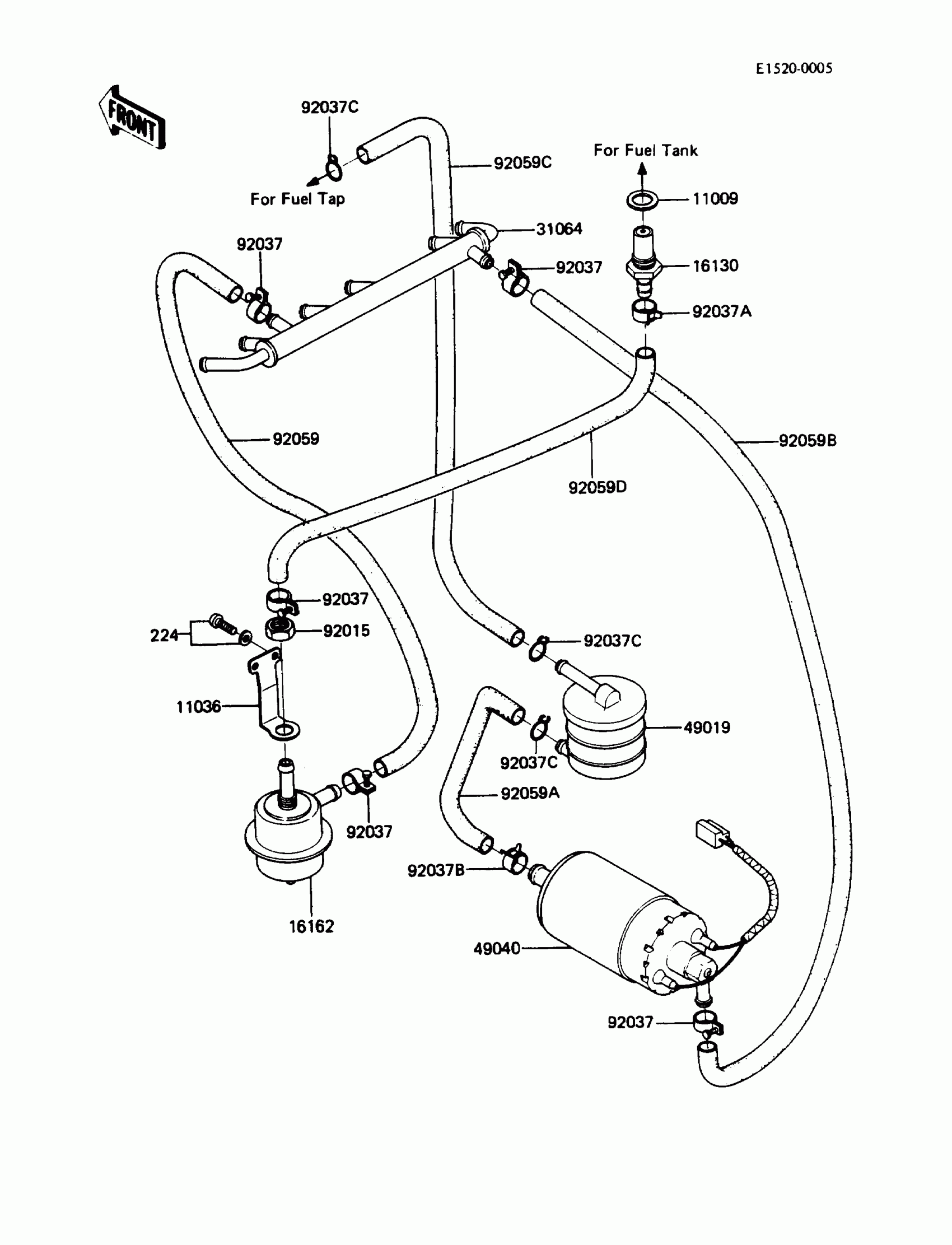

Find the part on the Fuel Pump diagram for your 1986 Kawasaki Voyager, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1986 Kawasaki Voyager Fuel Pump Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11009

GASKET,RELIEF VALVE

11009-1182

1
Out of stock

11036

BRACKET-A,REGULATOR

11036-1960

1
Out of stock

16130

VALVE-ASSY-RELIEF

16130-1002

1
Out of stock

16162

REGULATOR-FUEL

16162-1002

1
Out of stock

31064

PIPE-COMP,FUEL

31064-1010

1

$69.05

In stock

49019

FILTER-FUEL

49019-1001

1

$26.62

In stock

49040

PUMP-FUEL

49040-1007

1
Out of stock

92015

NUT,12MM

92015-1395

1

$5.36

In stock

92037

CLAMP

92037-1178

1
Out of stock

92037A

CLAMP,HOSE CLIP

92037-1181

1

$2.68

In stock

92037B

CLAMP,FUEL TUBE,ID-15

92037-1365

1
Out of stock

92037C

CLAMP,12.5MM

92037-1271

1

$1.80

In stock

92059

TUBE,13.5X360

92059-1273

1
Out of stock

92059A

TUBE,PUMP FILTER

92059-1275

1
Out of stock

92059B

TUBE,13.5X610

92059-1276

1
Out of stock

92059C

TUBE,7.5X13.5X590

92059-1277

1

$38.64

In stock

92059D

TUBE,13.5X270

92059-1397

1
Out of stock

224

SCREW-PAN-WP-CROS

224C0508

1
Out of stock
