1986 Kawasaki Voyager Oil Pump Diagram

← All diagrams

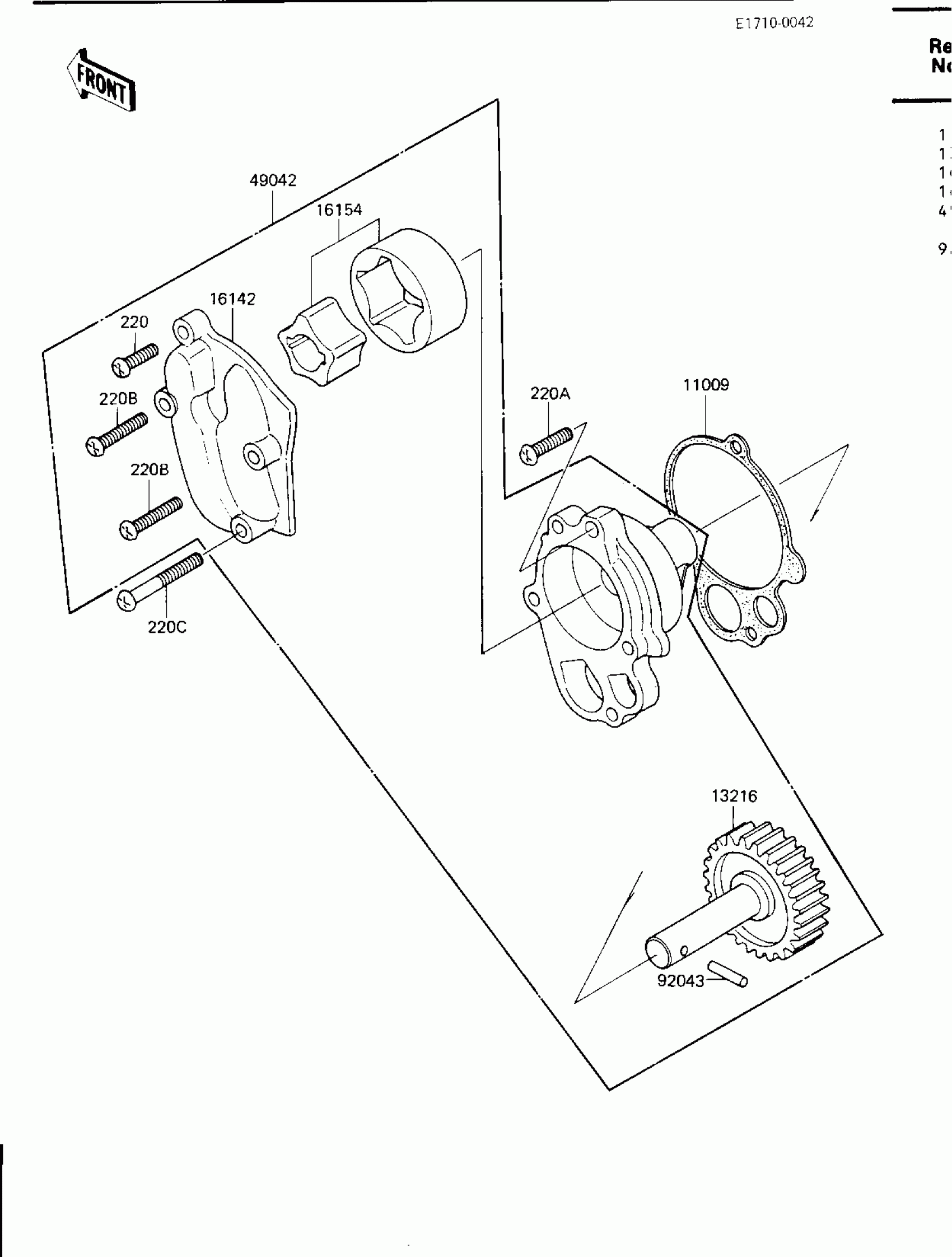

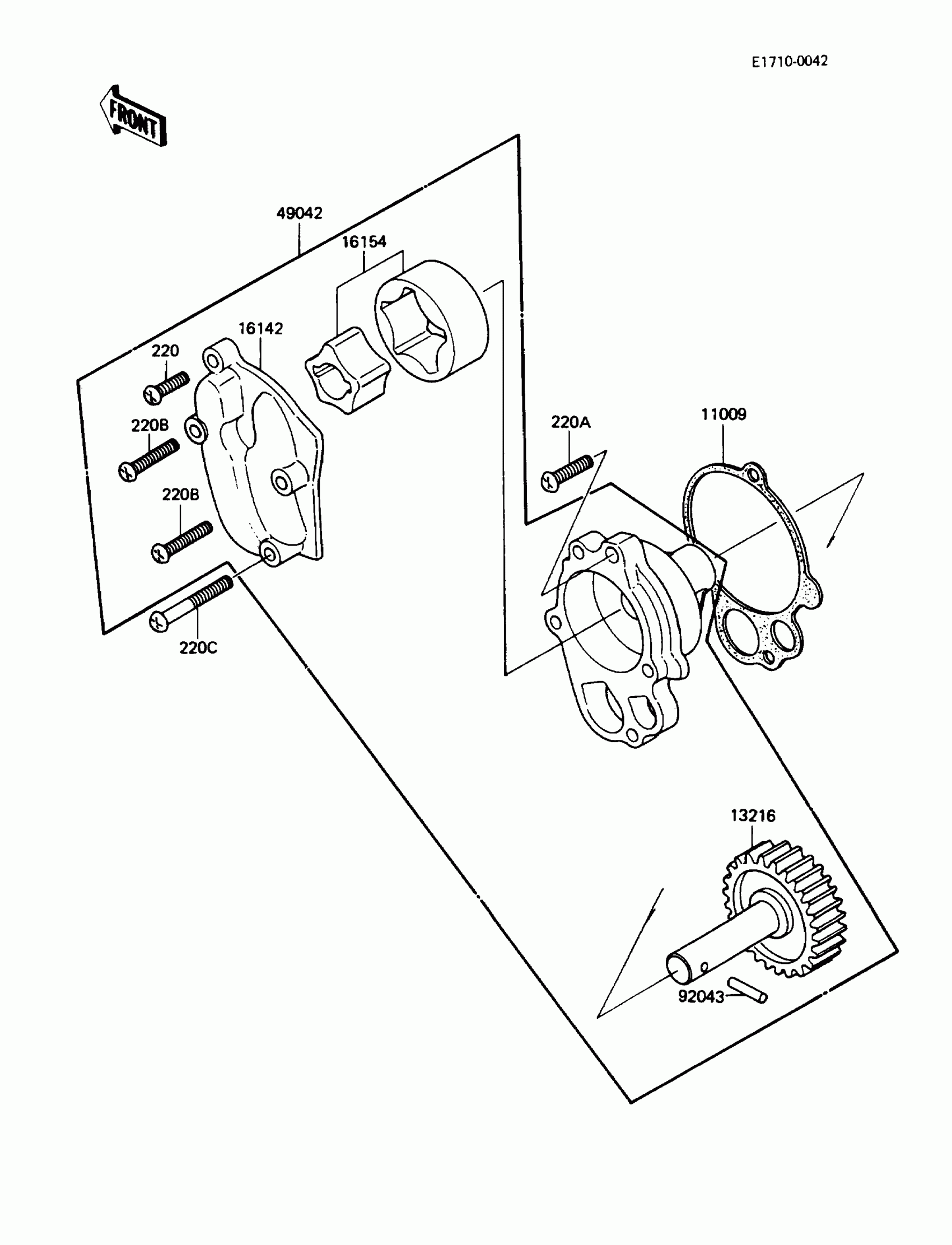

Find the part on the Oil Pump diagram for your 1986 Kawasaki Voyager, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1986 Kawasaki Voyager Oil Pump Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11009

GASKET,OIL PUMP

11009-1088

1
Out of stock

13216

GEAR-COMP,OIL PUMP

13216-1018

1
Out of stock

16142

COVER-PUMP

16142-1005

1

$76.87

In stock

16154

1

$71.51

In stock

49042

PUMP-OIL

49042-1001

1

$391.15

In stock

92043

PIN,DOWEL,5X17.8

92043-1061

1

$4.34

In stock

220

1

$2.92

In stock

220A

SCREW PAN HEAD 6X25

220B0625

1
Out of stock

220B

SCREW PAN HEAD 6X28

220B0628

1
Out of stock

220C

SCREW PAN HEAD 6X40

220B0640

1
Out of stock
