2005 Suzuki VL800 Magneto Diagram

← All diagrams

Find the part on the Magneto diagram for your 2005 Suzuki VL800, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

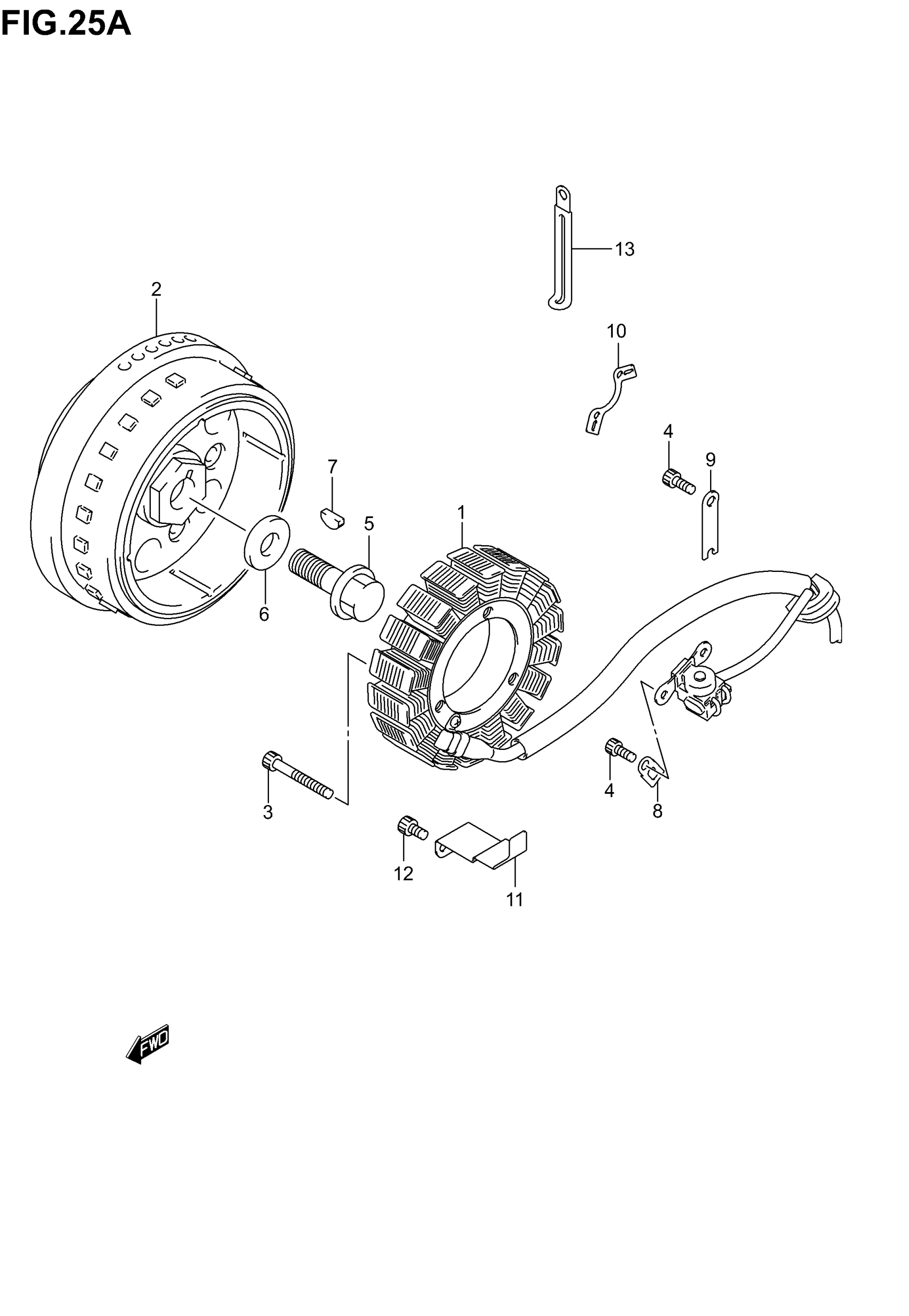

2005 Suzuki VL800 Magneto Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

STATOR

32101-41F10

1
Out of stock

2

ROTOR

32102-41F10

1
Out of stock

3

BOLT, STATOR This part replaces 07130-06403.

07130-0640B

3
Out of stock

4

BOLT, PICK UP & CLAMP This part replaces 07130-05103.

07130-0510B

4
Out of stock

5

BOLT, ROTOR

09103-14001

1
Out of stock

6

WASHER (14X29X4.0)

09160-14021

1
Out of stock

7

KEY

09420-05007

1
Out of stock

8

CLAMP

31497-45000

1
Out of stock

9

CLAMP

32371-38A10

1
Out of stock

10

CLAMP

32371-41F00

1
Out of stock

11

CLAMP

32371-45C00

1
Out of stock

12

BOLT, NO.3 This part replaces 07130-06103.

07130-0610B

1
Out of stock

13

CLAMP (L:65)

09404-08206

1
Out of stock
← Magneto Rear Combination Lamp →
