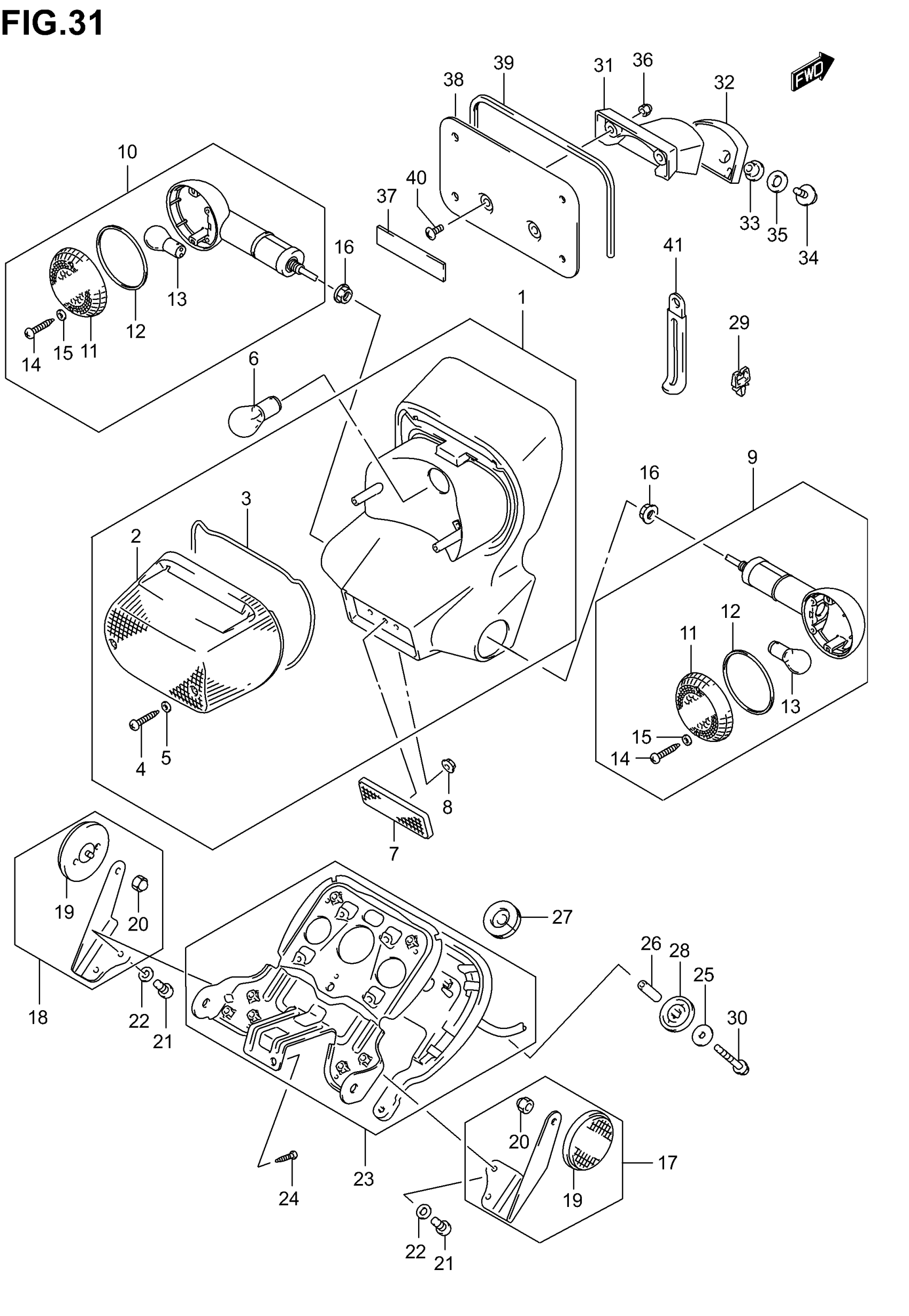

Suzuki VL800 (2005) REAR COMBINATION LAMP (MODEL K1/K2/K3) Diagram

#

Description
Price

1

LAMP UNIT | Includes Item(s) 2 - 5 This part replaces 35735-41F30-999.

35735-41F31-999

Unavailable

2

LENS

35712-10F30

$81.10

3

GASKET

35613-80F00

Unavailable

4

SCREW

03211-04207

$0.49

5

PACKING

35627-43010

$2.29

6

BULB (12V,21/5W) This part replaces 09471-12083.

09471-12128

$6.08

7

REFLECTOR ASSY, RR SIDE This part replaces 35970-07F00.

35970-07F01

$19.11

8

NUT This part replaces 08316-20053.

08316-2005A

$2.21

9

REAR TURN ASSY, RH

35603-41F00

$90.90

10

REAR TURN ASSY, LH | Includes Item(s) 11 - 15

35604-41F00

$93.98

11

LENS

35652-38A21

$15.43

12

GASKET

35613-38A00

$10.99

13

BULB (12V 21W)

09471-12045

$2.95

14

SCREW This part replaces 03211-04253.

03211-0425B

$2.95

15

PACKING

35627-43010

$2.29

16

NUT This part replaces 08316-20103.

08316-2010B

$4.38

17

REFLEX REFLECTOR, RH

35078-41F30

Unavailable

18

REFLEX REFLECTOR, LH | Includes Item(s) 19 - 20

35079-41F30

Unavailable

19

REFLEX REFLECTOR

35970-14A10

$21.23

20

NUT

08313-20057

$3.05

21

SCREW This part replaces 02112-05123.

02112-0512A

$1.45

22

LOCK WASHER This part replaces 08321-01053.

08321-0105A

$1.83

23

SOCKET & CORD ASSY

35718-41F00

$207.90

24

SCREW This part replaces 03211-05163.

03211-0516A

Unavailable

25

.WASHER (6.5X20X1.6)

09160-06088

$1.67

26

SPACER (6.5X9X23)

09180-06275

$3.66

27

GROMMET

09308-10017

$5.65

28

CUSHION

09320-09046

$8.50

29

CLAMP

09403-11313

Unavailable

30

BOLT This part replaces 01550-06353.

01550-0635A

$2.31

31

STAY, LICENSE PLATE HOLDER

35928-41F00

$139.58

32

CUSHION, HOLDER STAY

35929-41F00

$10.58

33

SPACER

09169-06077

$6.38

34

BOLT This part replaces 01550-06303.

01550-0630A

$2.31

35

WASHER (6.5X18X1.6)

09160-06109

$1.15

36

NUT, LICENSE HOLDER

08313-10067

$1.83

37

PROTECTOR,20X90X1.0 (20X90X1.

33652-26E00

$4.18

38

HOLDER,LICENSE This part replaces 63461-41F30.

63461-41F31

$122.98

39

MOLDING, LICENSE HOLDER

94635-19C00

$9.62

40

SCREW This part replaces 02142-06163.

02142-0616A

$1.37

41

CLAMP This part replaces 09404-06432.

09404-06039

$1.73
