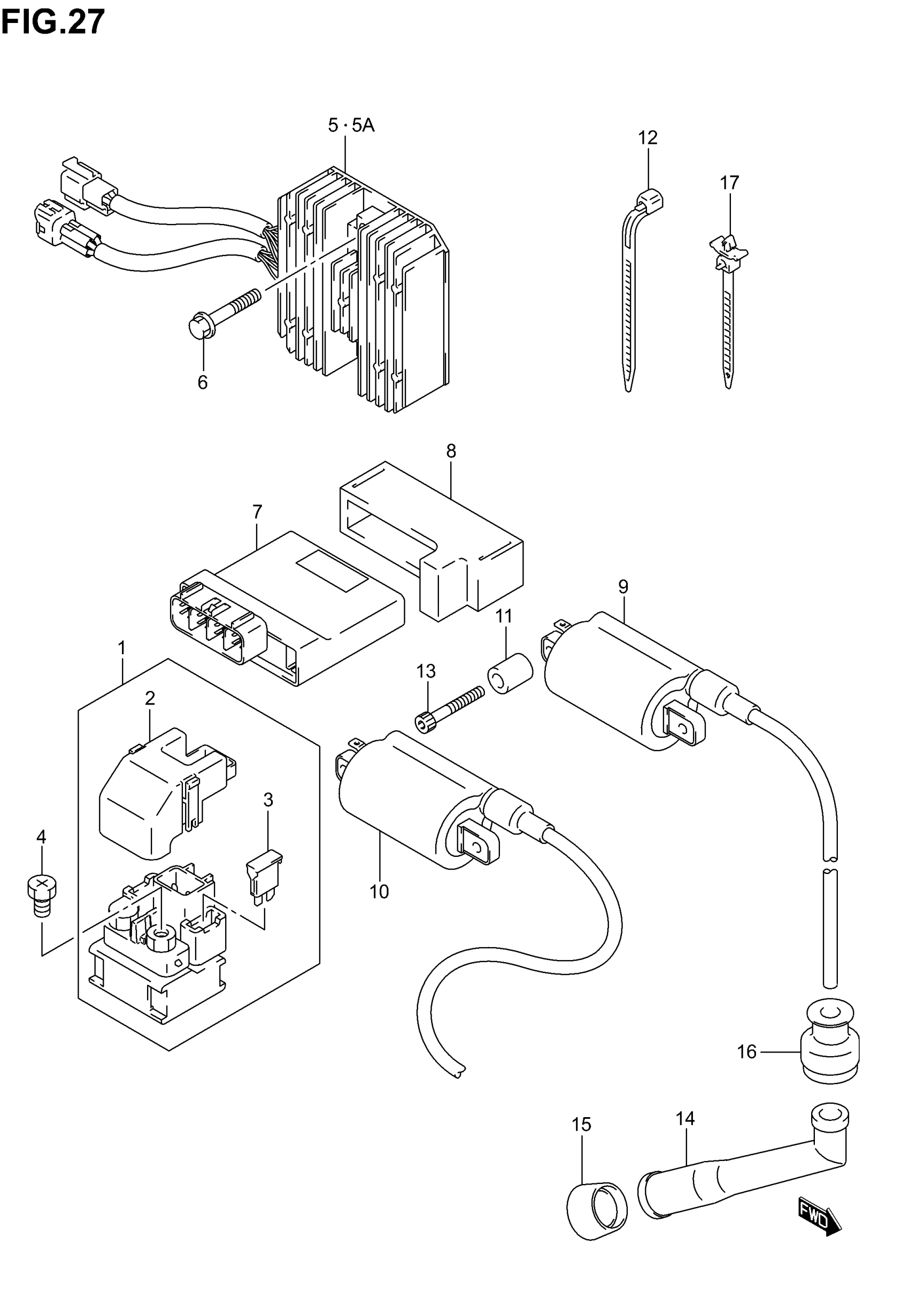

Suzuki VL800 (2005) ELECTRICAL (MODEL K1/K2/K3/K4) Diagram

#

Description
Price

1

RELAY ASSY,STARTING MOTOR | Includes Item(s) 2 - 3 This part replaces 31800-21E20.

31800-21E30

$61.62

2

.COVER This part replaces 31861-21E20.

31861-47E00

$18.23

3

FUSE (30A)

09481-30101

$2.28

4

BOLT (6X8)

09128-06013

$1.24

5

RECTIFIER ASSY | MODEL K1/K2 This part replaces 32800-44D30.

32800-44D31

$356.60

5A

RECTIFIER ASSY | MODEL K3/K4 This part replaces 32800-41F00.

32800-41F02

$304.08

6

BOLT (6X23)

09103-06066

Unavailable

7

IGNITER ASSY

32900-41F10

Unavailable

8

COVER, IGNITER

32980-41F00

Unavailable

9

COIL ASSY, IGNITION

33410-41F00

$175.35

10

COIL ASSY, IGNITION

33420-41F00

$175.35

11

SPACER (6.2X12X16)

09180-06198

$4.70

12

CLAMP (L:165) | MODEL K1/K2

09407-18402

$2.21

13

BOLT This part replaces 07130-05353.

07130-0535B

$3.42

14

CAP, SPARK PLUG

33510-11410

$23.76

15

SEAL, SPARK PLUG This part replaces 33541-24510.

33541-47D00

$7.16

16

SEAL,HIGH TENSION CORD (SIDE)

33542-38B00

$3.97

17

CLAMP (L:90) | MODEL K1/K2

09407-11402

$1.81
