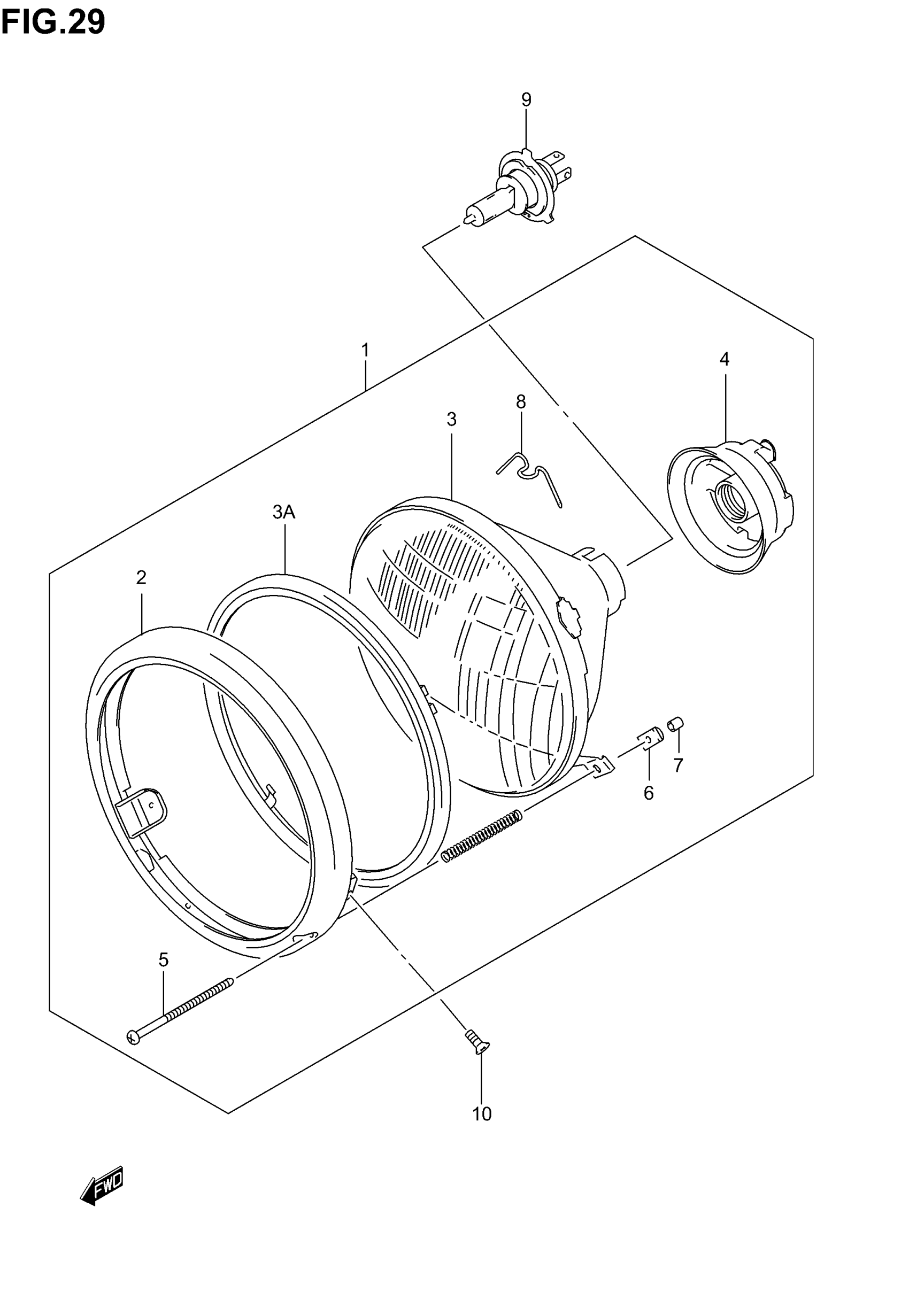

Suzuki VL800 (2005) HEADLAMP ASSY (MODEL K1/K2/K3/K4) Diagram

#

Description
Price

1

HEADLAMP ASSY | Includes Item(s) 2 - 8

35100-10F30-999

$462.25

2

RIM ASSY

35111-10F20

$192.23

3

LAMP UNIT

35121-10F30

$186.15

3A

RETAINING RING ASSY

35127-10F00

Unavailable

4

COVER, SOCKET

35173-20A01

$20.33

5

SCREW, ADJUSTER

35151-45900

$3.44

6

NUT, ADJUSTER

35152-15611

$3.67

7

CAP, SCREW

35158-43400

$2.17

8

SPRING

35128-10F00

$5.80

9

BULB (12V,60/55W,H4)

09471-12060

$22.69

10

SCREW (5X12)

09126-05003

$2.07
