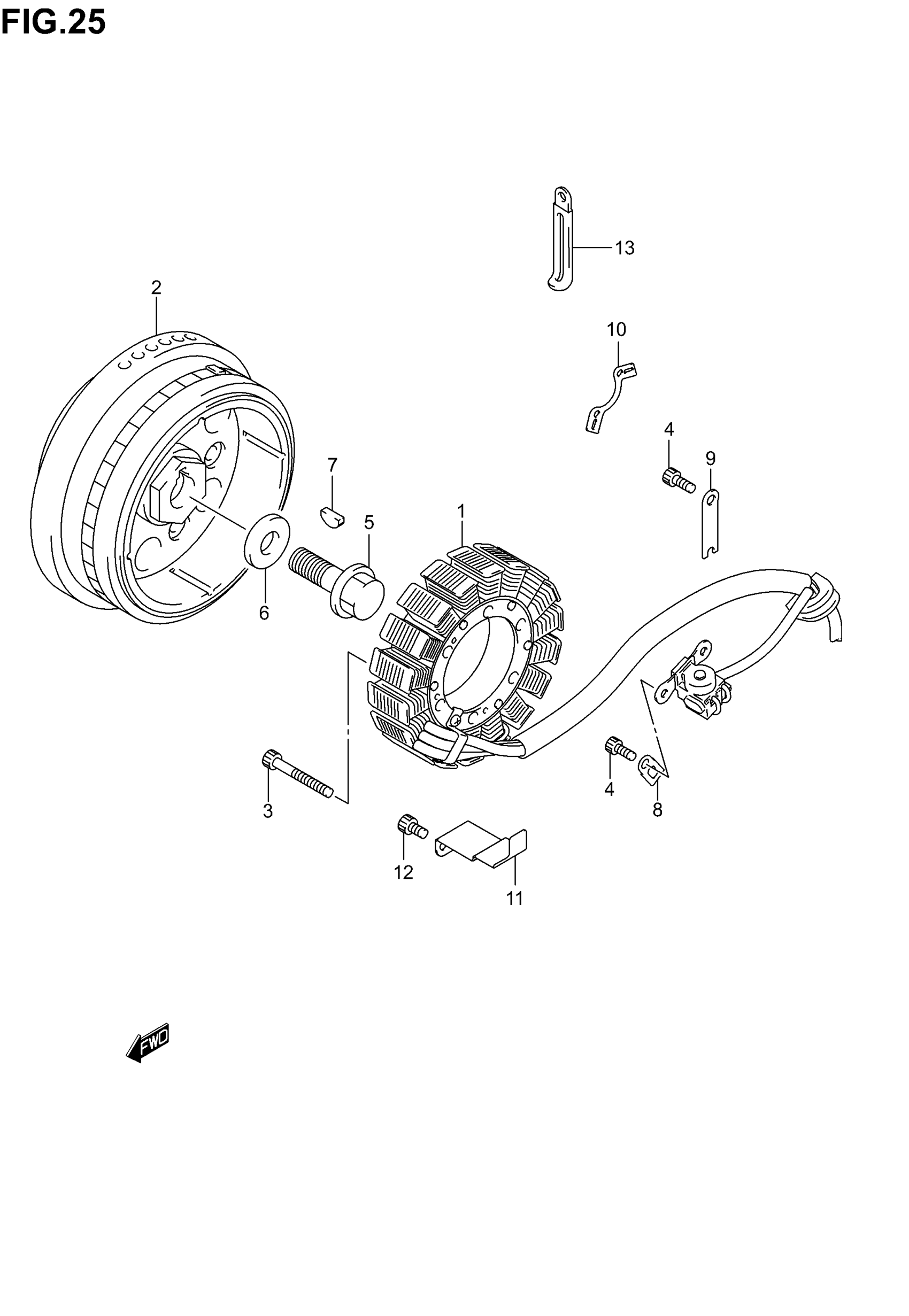

Suzuki VL800 (2005) MAGNETO (MODEL K1/K2/K3/K4) Diagram

#

Description
Price

1

STATOR

32101-41F00

$557.62

2

ROTOR

32102-41F00

Unavailable

3

BOLT, STATOR This part replaces 07130-06403.

07130-0640B

$3.10

4

BOLT, PICK UP & CLAMP This part replaces 07130-05103.

07130-0510B

$2.64

5

BOLT, ROTOR

09103-14001

$12.85

6

WASHER (14X29X4.0)

09160-14021

$7.20

7

KEY

09420-05007

$5.00

8

CLAMP

31497-45000

$2.17

9

CLAMP

32371-38A10

Unavailable

10

CLAMP

32371-41F00

Unavailable

11

CLAMP

32371-45C00

$5.18

12

BOLT, NO.3 This part replaces 07130-06103.

07130-0610B

$1.23

13

CLAMP (L:45)

09404-06429

$1.82
