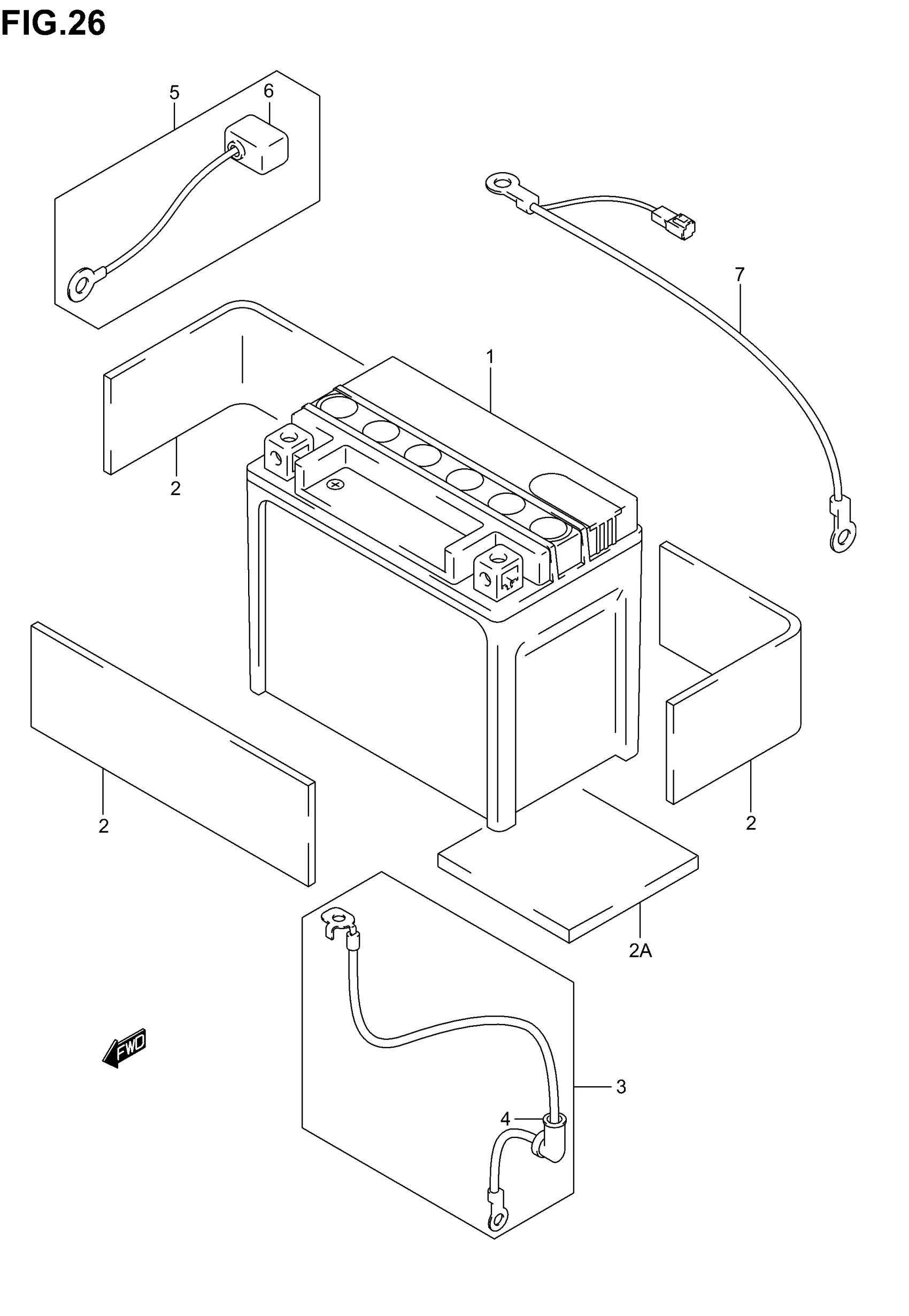

Suzuki VL800 (2005) BATTERY Diagram

#

Description

Price

1

BATTERY (FTX12-BS,12V,10AH)

33610-48E20

$124.92

2

CUSHION (170X95X3.0) | CUT AS REQUIRED PROFILE (50X115),(20X90)

33651-37000

$4.09

2A

PROTECTOR (50X50X5) | MODEL K5

33652-20C00

$2.80

3

WIRE,STARTER MOTOR LEAD | Includes Item(s) 4 This part replaces 33810-41F00.

33810-41F01

$25.63

4

CAP, STARTER MOTOR

31861-48B10

$7.40

5

WIRE,BATTERY PLUS LEAD | Includes Item(s) 6 This part replaces 33820-48E00.

33820-48E01

$22.57

6

CAP, BATTERY PLUS

33624-16E00

$6.77

7

WIRE, BATTERY MINUS (-)

33860-41F00

$35.23
