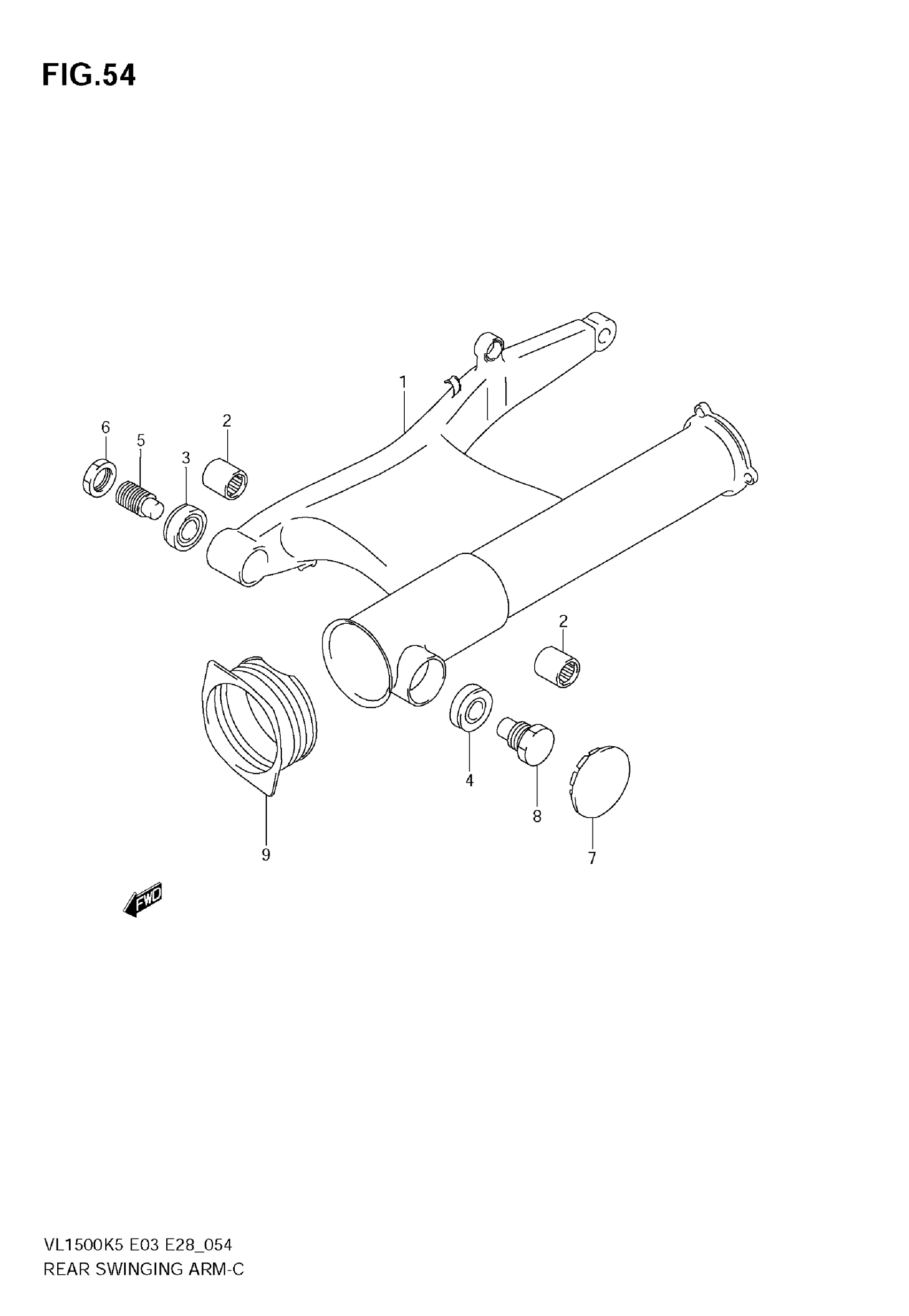

Suzuki VL1500 (2009) REAR SWINGING ARM Diagram

#

Description

Price

1

SWINGING ARM SET, REAR (BLACK) | Includes Item(s) 2

61100-10860-019

Unavailable

2

BEARING, ROD (20X27X23.5)

09263-20071

$23.72

3

BEARING, PIVOT RH (17X40X13.25,WITH PLATE)

09265-17013

$89.71

4

BEARING, PIVOT LH (17X40X13.25)

09265-17012

$75.07

5

BOLT, PIVOT RH

61213-24A00

Unavailable

6

NUT, PIVOT RH

09140-24007

$3.56

7

CAP, PIVOT LH

61222-05A01

$16.38

8

BOLT, PIVOT LH

61213-10F00

Unavailable

9

BOOT,PROPELLER This part replaces 61372-10F00.

61372-10F01

$26.63
