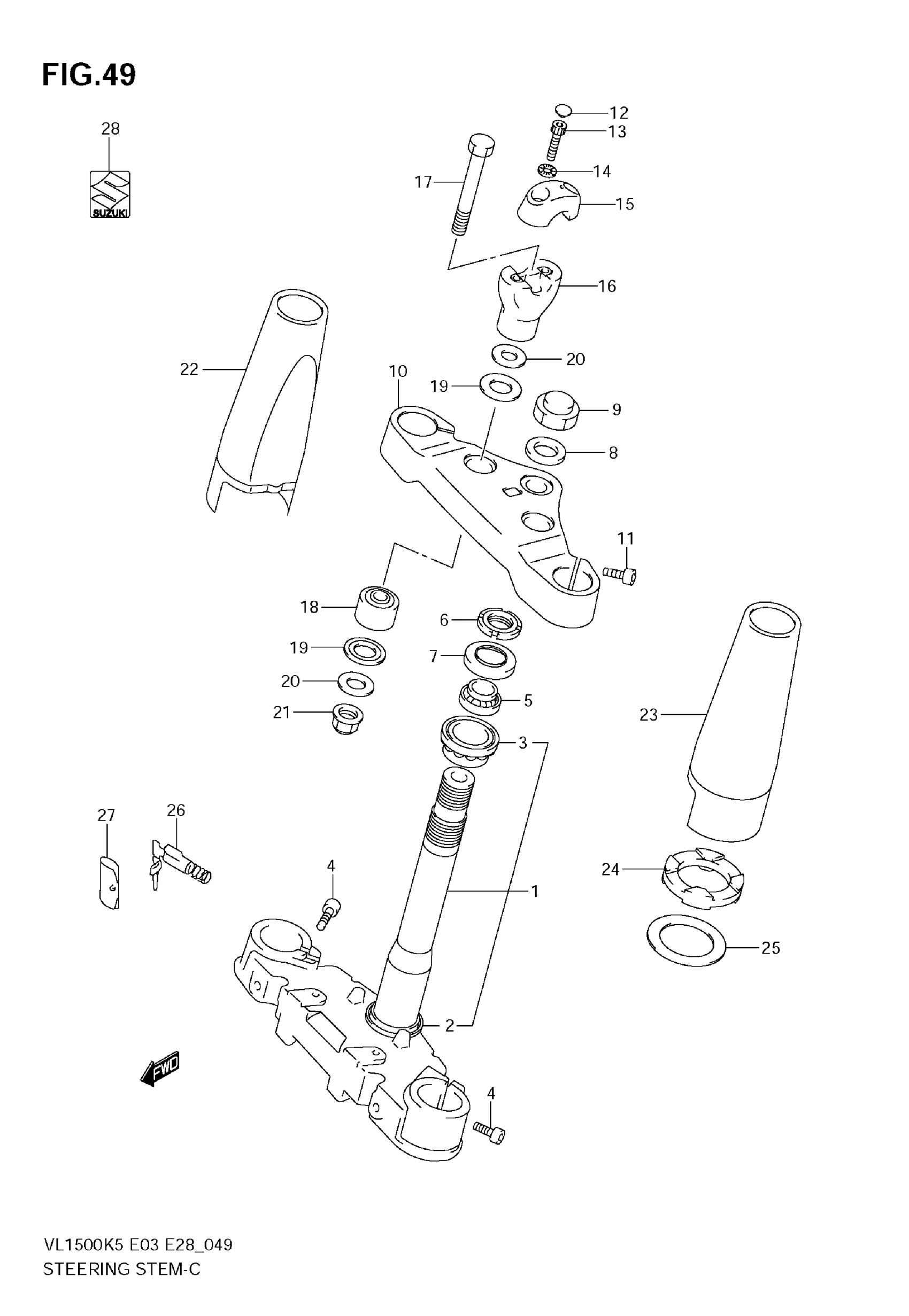

Suzuki VL1500 (2009) STEERING STEM Diagram

#

Description
Price

1

BRACKET, UNDER | K5/K6/K7/K8

51410-10F70

Unavailable

1

BRACKET, UNDER | K9; Includes Item(s) 2 - 3

51410-10F90

Unavailable

2

SEAL, LOWER

51644-12C00

$8.65

3

BEARING (30X55X17) | K5/K6/K7/K8

09267-30010

$43.41

3

BEARING (30X55X17) | K9

09265-30020

$40.65

4

BOLT, STEM

51451-10F70

Unavailable

5

BEARING (25X47X15) | K5/K6/K7/K8

09267-25009

$56.72

5

BEARING (25X47X15) | K9

09265-25038

$41.11

6

NUT, STEM

51631-28000

$19.60

7

SEAL,DUST This part replaces 51643-40502.

51643-40503

$5.79

8

WASHER, STEM

51356-24B01

$7.13

9

NUT, STEM

51353-24B00

$34.62

10

HEAD, STEERING STEM

51311-10F70

Unavailable

11

BOLT

51321-06G00

$10.35

12

CAP, BOLT

09250-06009

$3.13

13

BOLT This part replaces 51321-10F00.

07130-08307

$4.98

14

WASHER

09164-08015

$2.90

15

HOLDER, HANDLE UPPER

56211-41F20

$87.95

16

HOLDER, HANDLE LOWER

56221-10F70

Unavailable

17

BOLT, STAY

51226-10F70

Unavailable

18

DAMPER, RUBBER

56240-41F20

$46.13

19

SEAT, RUBBER

56245-41F20

$9.17

20

WASHER

51354-41F20

$9.98

21

NUT

56246-41F20

$14.22

22

COVER, UPPER R

51530-10F70

Unavailable

23

COVER, UPPER L

51540-10F70

Unavailable

24

SEAT, RUBBER

51468-10F00

$24.63

25

WASHER

51467-10F70

$14.27

26

LOCK ASSY,STEER This part replaces 51900-38810.

51900-309V0

$81.21

27

CASE, KEY

51920-48E00

$18.22

28

EMBLEM, "S"

68281-35F00

$15.48
