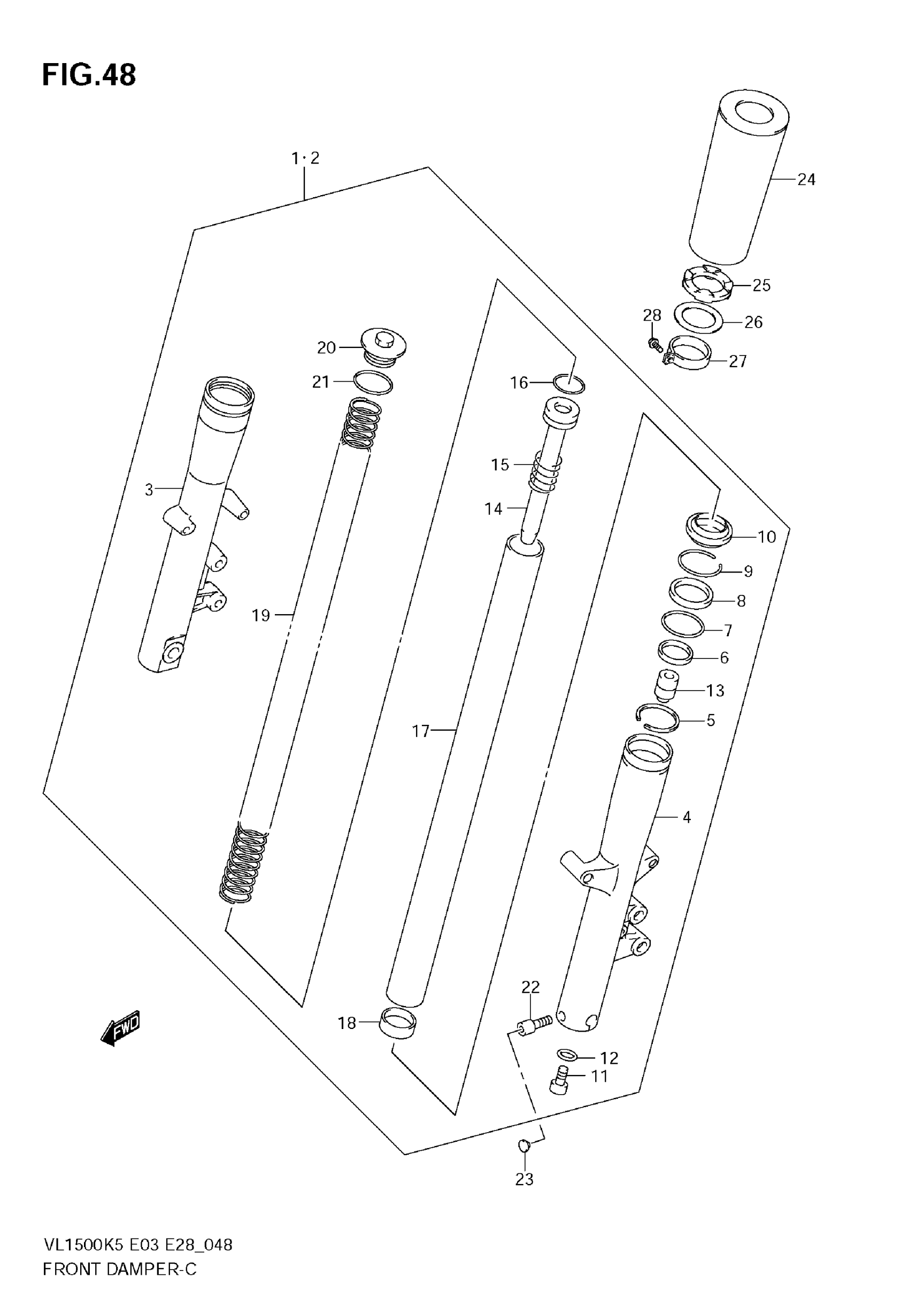

Suzuki VL1500 (2009) FRONT DAMPER Diagram

#

Description
Price

1

DAMPER ASSY, FRONT FORK RH

51103-10F70

Unavailable

2

DAMPER ASSY, FRONT FORK LH | Includes Item(s) 3 - 22

51104-10F70

Unavailable

3

TUBE, OUTER RH

51131-10F50

$697.98

4

TUBE, OUTER LH

51141-10F50

Unavailable

5

GUIDE, CASE

51469-10F00

$19.97

6

BUSH, GUIDE

51152-11D60

$13.64

7

SPACER, SEAL

51168-38B00

$6.38

8

SEAL, OIL

51153-08D00

$21.97

9

RING

51556-38B00

$6.91

10

SEAL, DUST

51571-47D50

$20.95

11

BOLT

51147-06F10

$6.75

12

GASKET

51148-36011

$3.41

13

PIECE, OIL LOCK

51195-10F00

$34.12

14

PIPE, SEAT

51146-10F00

Unavailable

15

SPRING

51177-10F00

Unavailable

16

RING

51196-47D00

$9.97

17

TUBE, INNER

51110-10F70

Unavailable

18

BUSH, SLIDE

51121-42E00

$17.53

19

SPRING, FRONT

51171-10F70

Unavailable

20

.BOLT,FORK

51189-38C00

$58.95

21

.O-RING

51117-12C00

$3.83

22

BOLT, LH

51166-10F00

$10.08

23

CAP

09250-06009

$3.24

24

CASE, UNDER

51464-10F70

Unavailable

25

SEAT, RUBBER

51468-10F00

$24.63

26

WASHER

51467-10F00

$14.27

27

SPACER

51465-41F20

$60.38

28

BOLT

51466-10F00

$8.52
