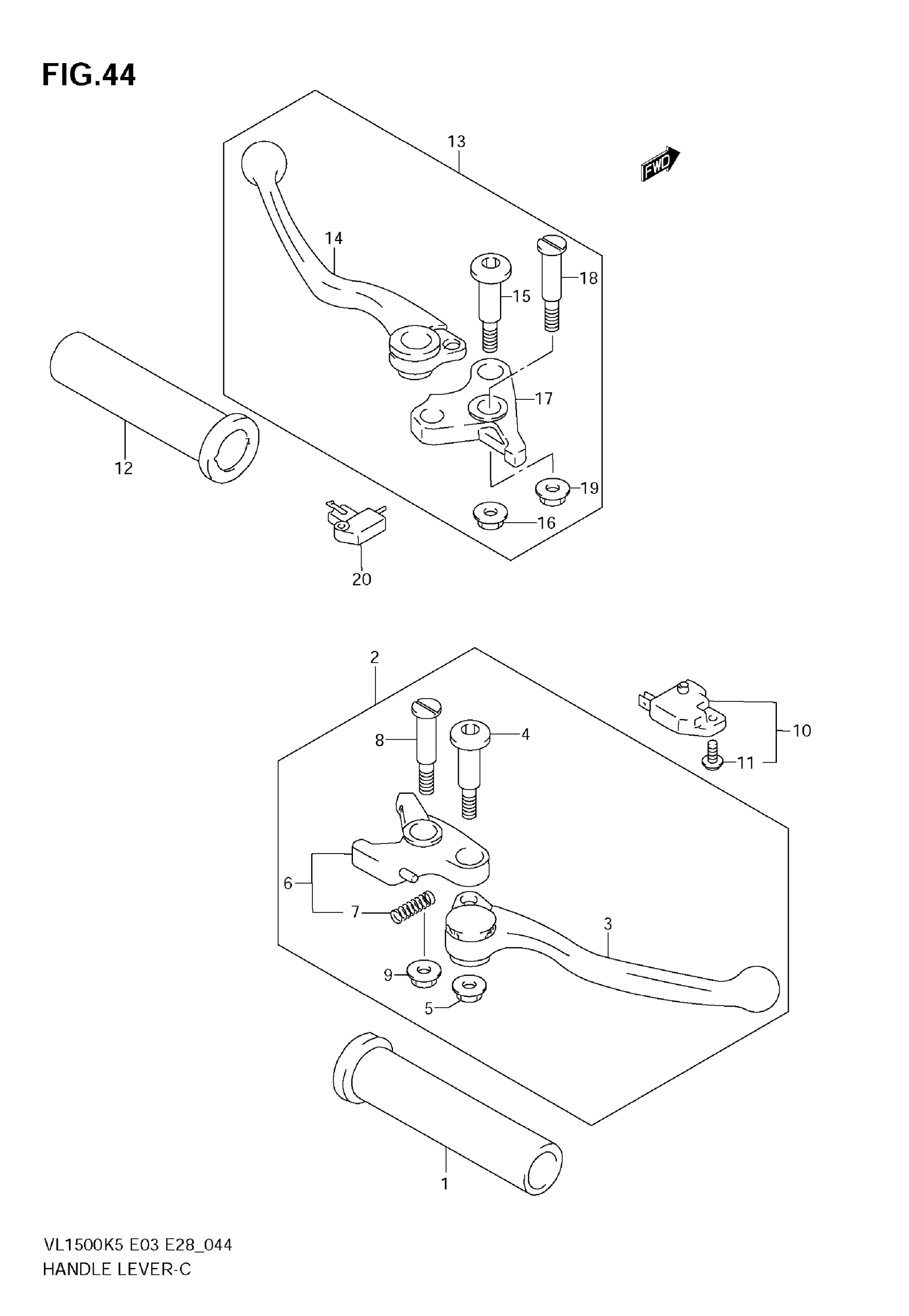

Suzuki VL1500 (2009) HANDLE LEVER (MODEL K5/K6) Diagram

#

Description
Price

1

GRIP COMP,THROT This part replaces 57110-26D00.

57110-26D01

$51.32

2

LEVER ASSY, BRAKE | Includes Item(s) 3 - 9 This part replaces 57300-48E00.

57300-32C10

$84.38

3

LEVER

57420-32C00

$26.47

4

BOLT, LEVER

57437-32C01

$9.70

5

NUT This part replaces 08319-31063.

08319-3106A

$2.01

6

KNOCKER

57430-32C10

$68.13

7

SPRING

57438-32C00

$6.40

8

BOLT, PIVOT

57431-48E00

$10.08

9

NUT

08316-10067

$2.27

10

SWITCH ASSY,FR BRAKE | Includes Item(s) 11 This part replaces 57460-17C11.

57460-14J02

$35.21

11

SCREW

57465-17C00

$2.37

12

GRIP,L This part replaces 57210-26D00.

57210-26D01

$27.67

13

LEVER ASSY, CLUTCH | Includes Item(s) 14 - 19

57500-10F00

$67.00

14

LEVER, CLUTCH

57620-10F00

$35.92

15

BOLT, LEVER

57437-32C01

$9.70

16

NUT This part replaces 08319-31063.

08319-3106A

$2.01

17

KNOCKER

57430-10F00

Unavailable

18

BOLT, PIVOT

57431-48E00

$10.08

19

NUT This part replaces 08316-10063.

08316-1006B

$2.50

20

SWITCH ASSY, CLUTCH

57560-10F00

$21.58
